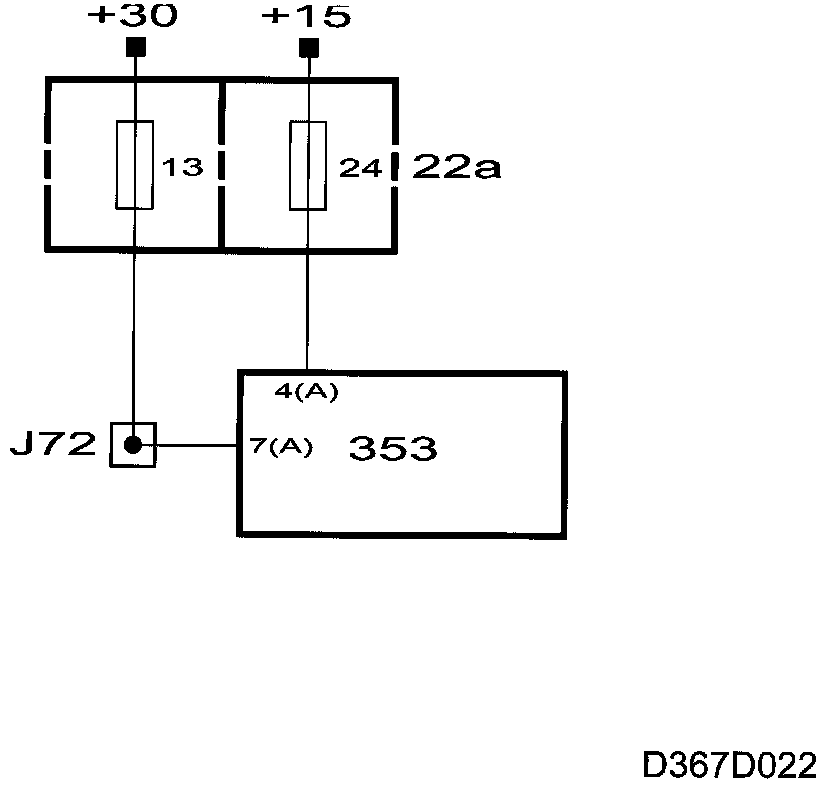

Main Unit Power Supply



Main Unit Power Supply










Power supply (+15 circuit)
From fuse 24 to the main unit, pin 4(A).

Power supply (+30 circuit)
From fuse 13 to the main unit, pin 7(A).
