Main Unit Ground
Main Unit Ground
Main Unit Ground
Ground connection

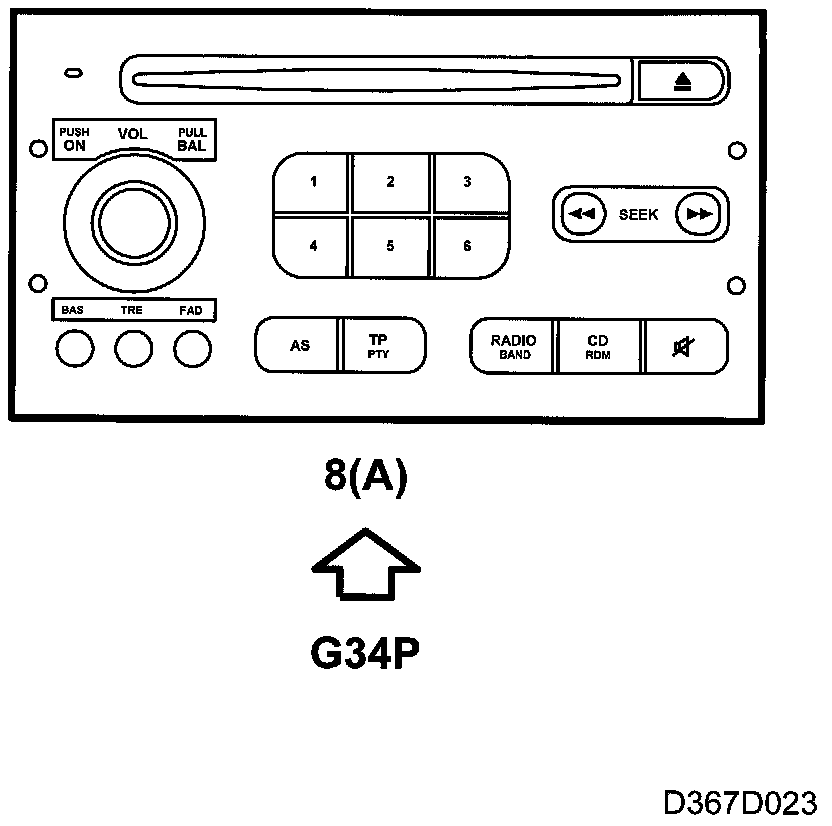

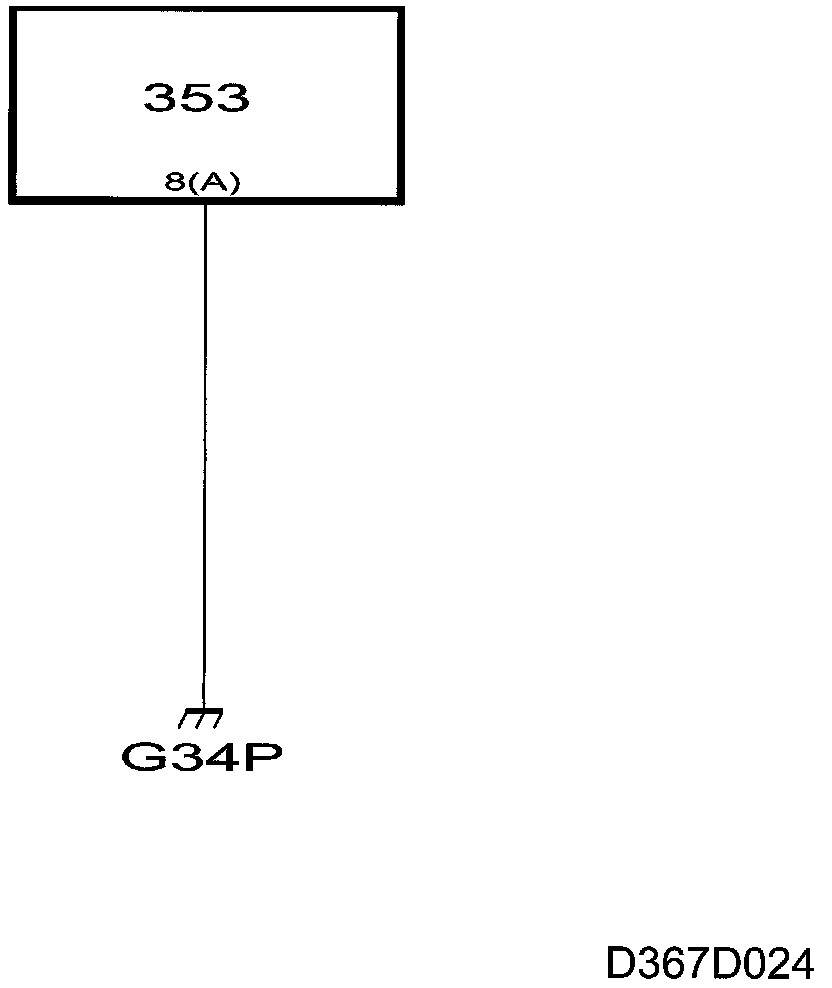

The main unit is grounded (main ground) to grounding point G34P via pin 8(A).
