Amplifier: Service and Repair

External Amplifier

To remove

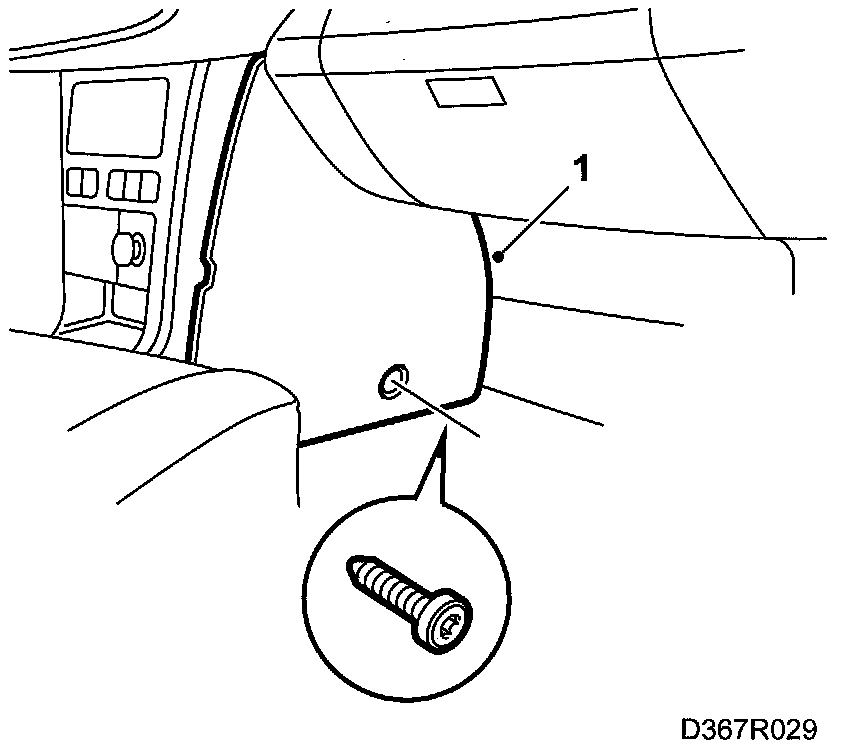

1. Remove the right-hand side panel to reveal the amplifier.

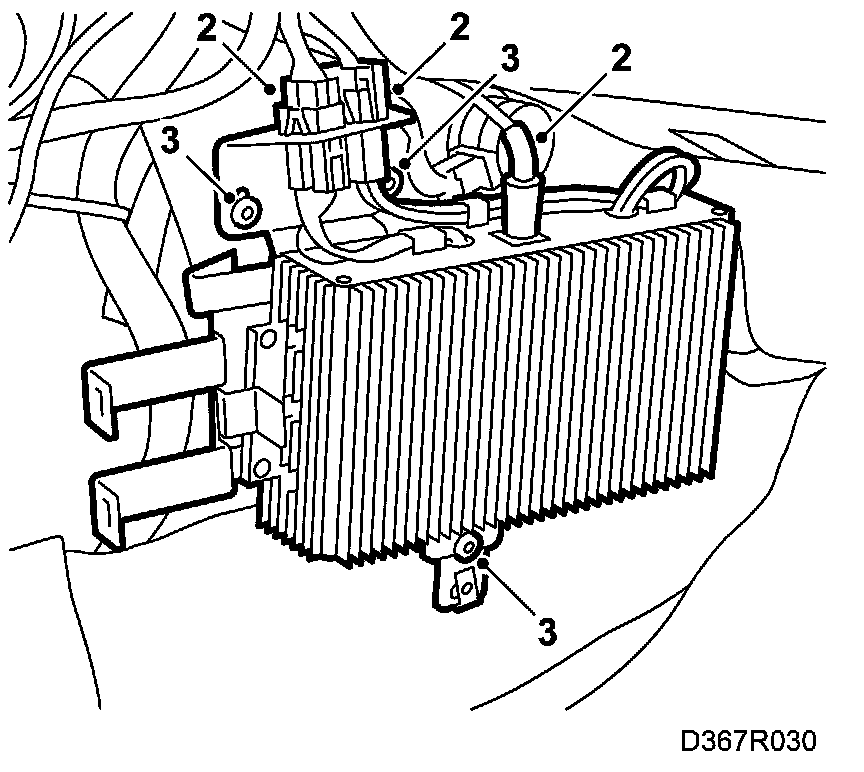

2. Unplug the three connectors.
3. Undo the three screws securing the amplifier.
4. Remove the amplifier from the console.

To fit
Fit in reverse order.
