Home >> Saab >> 2003 >> 9-3 Convertible (9400) L4-2.0L Turbo (2.0 HOT) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Cellular Phone >> Description and Operation >> Main Components

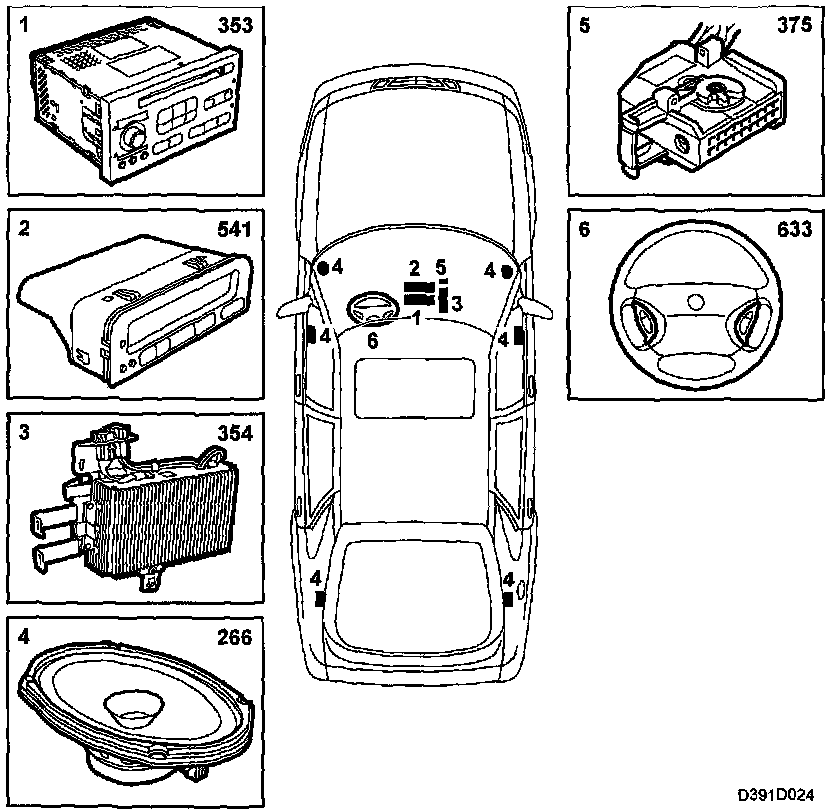

Main Components



Main Components







1. Main unit, Audio System (353)
2. SID (541)
3. External amplifier (354)
4. Loudspeaker (266)
5. Telephone connection (375)
6. Steering wheel controls (633)
