Receiver For Remote Control

Receiver For Remote Control

To remove

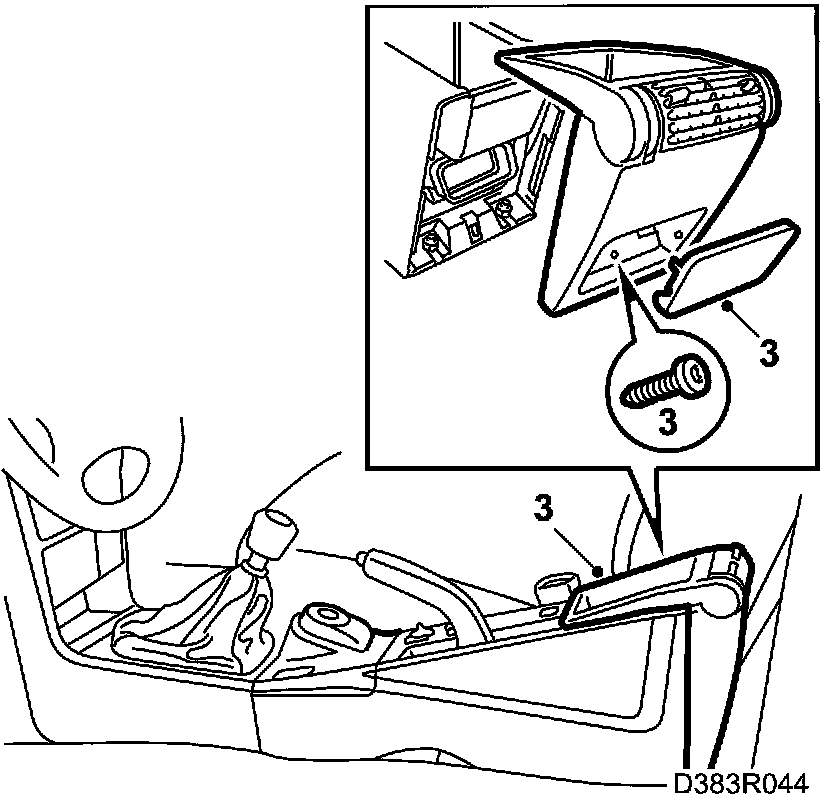

1. Remove the cover and unscrew the screw holding the rear section of the floor console.
2. Lift off the rear section.
3. Undo the receiver unit from the side wall of the floor console.

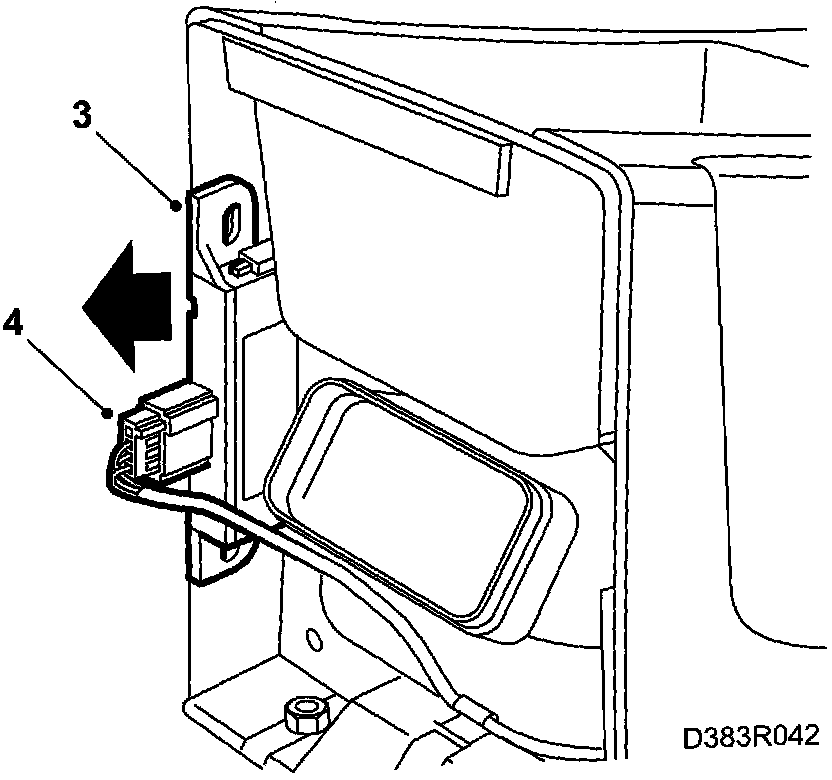

4. Unplug the connector and remove the receiver unit.

To fit

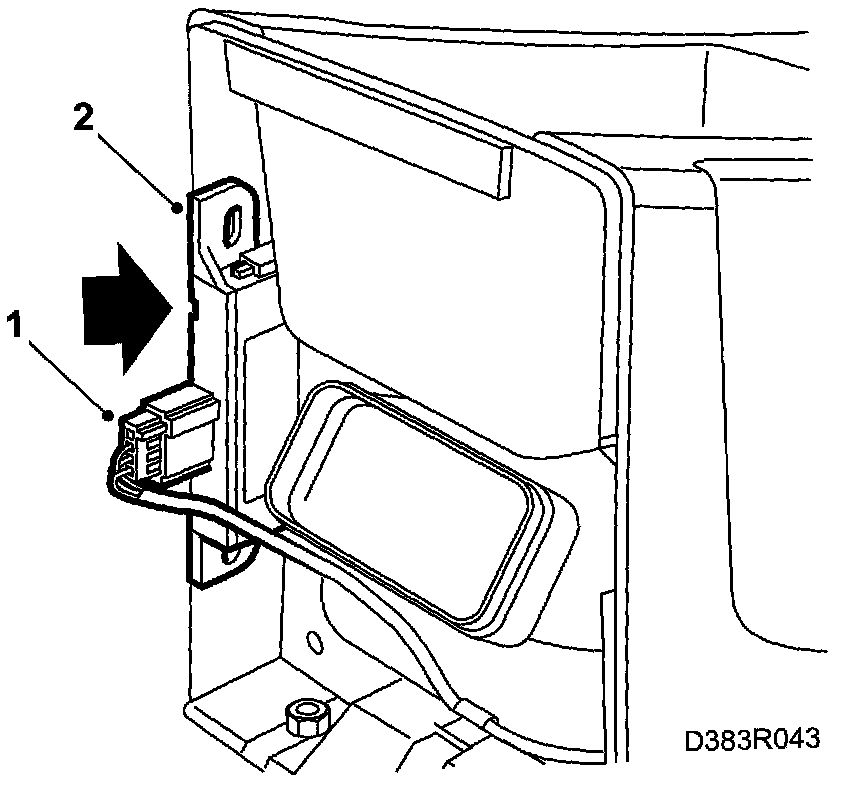

1. Fit the connector to the receiver.
2. Fit the receiver unit.
3. Fit the rear section of the floor console.
