Microswitch In Luggage Compartment Lock

Microswitch In Luggage Compartment Lock

To remove







1. Open the tailgate.

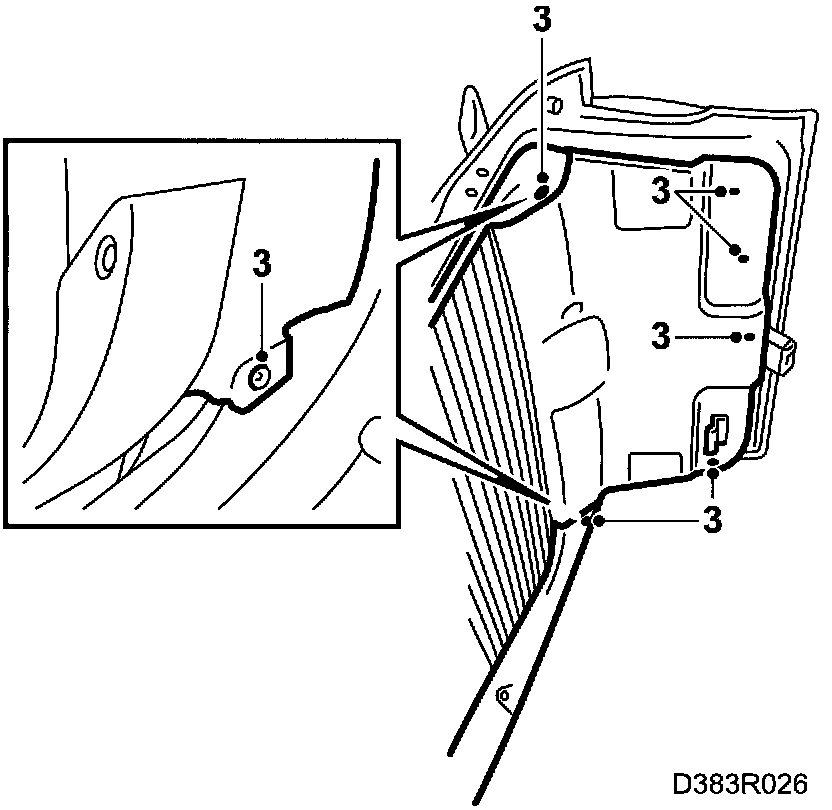

2. Remove the tailgate trim.

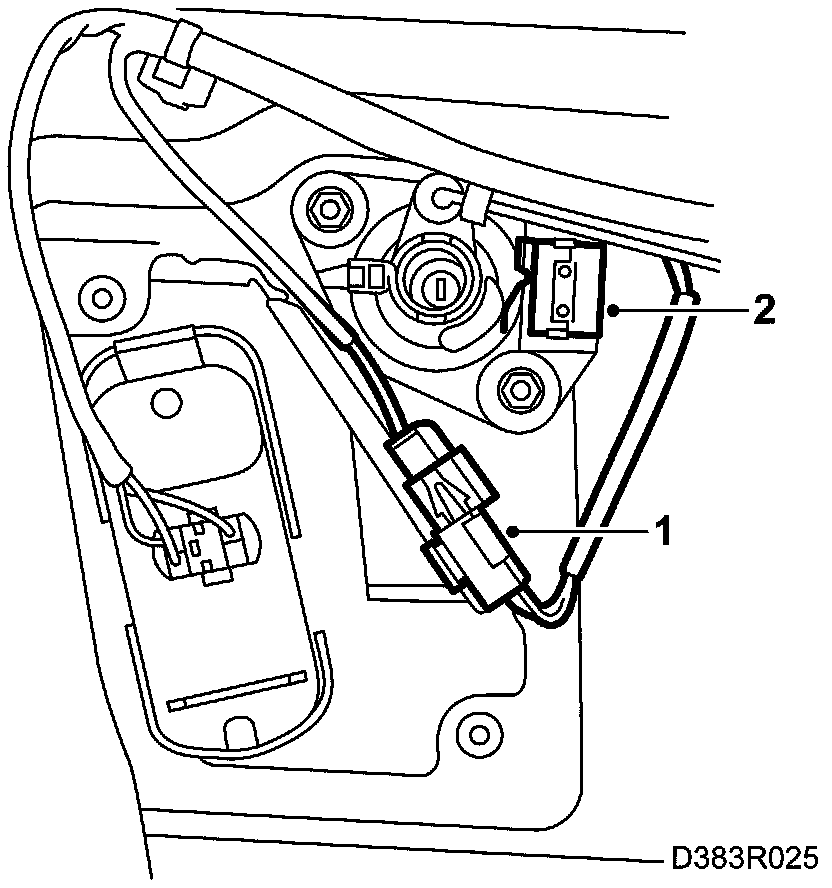

3. Disconnect the electrical connector from the microswitch.







4. Release the microswitch from the luggage compartment lock.

To fit

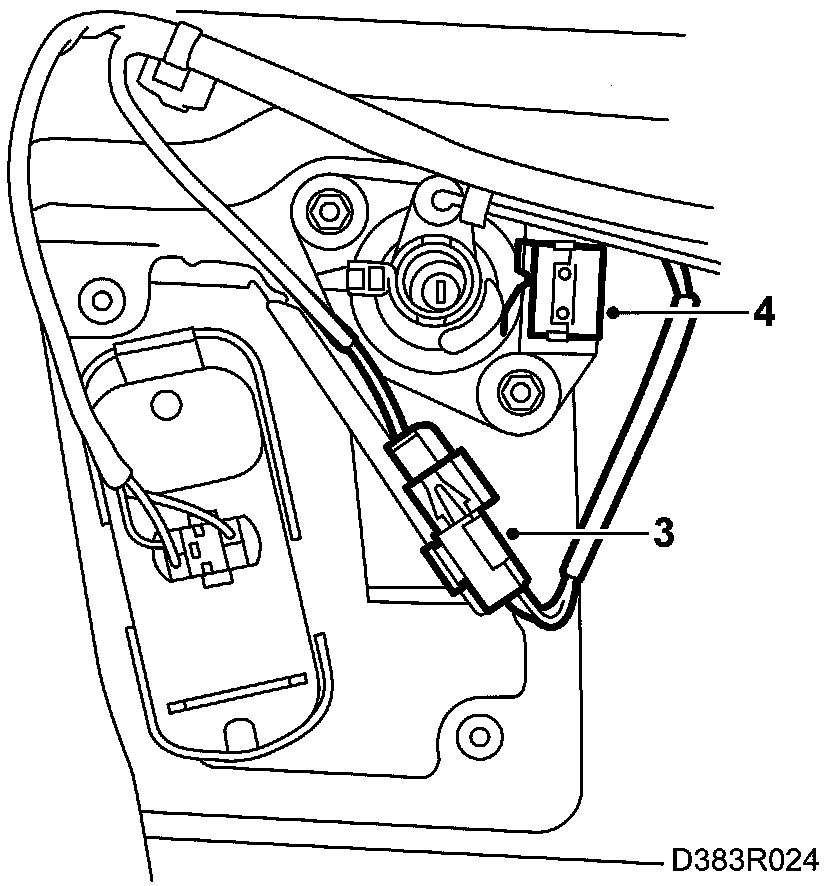

1. Push the electrical connector on to the microswitch.
2. Fit the microswitch.

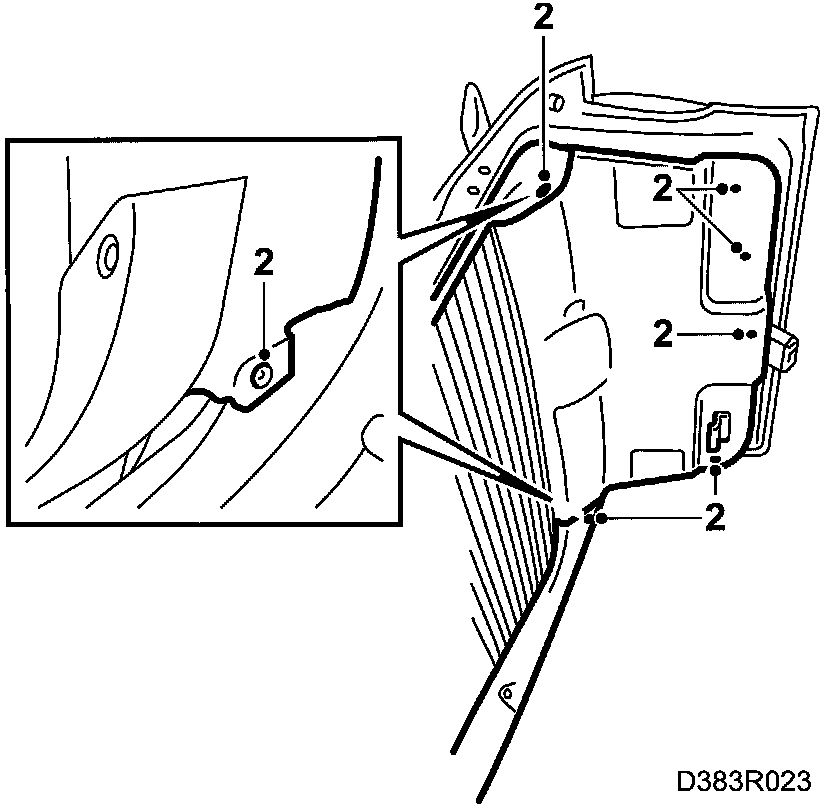

3. Fit the trim.
