Luggage Compartment Switch

Luggage Compartment Switch

To remove







NOTE: The luggage compartment switch is not stocked separately as a spare part. The complete lock must be replaced.

1. Open the tailgate.

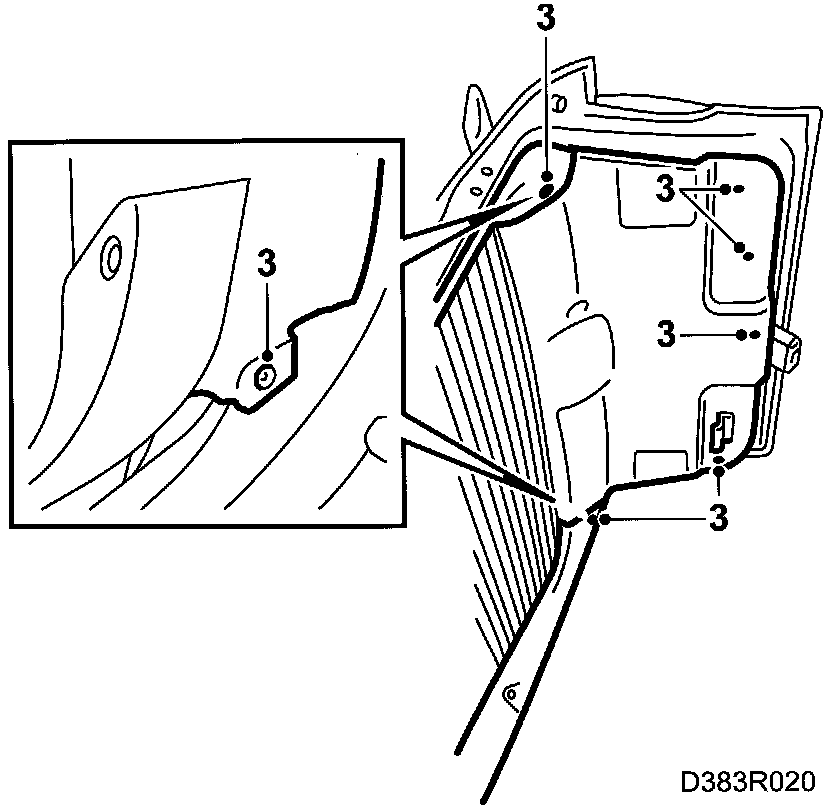

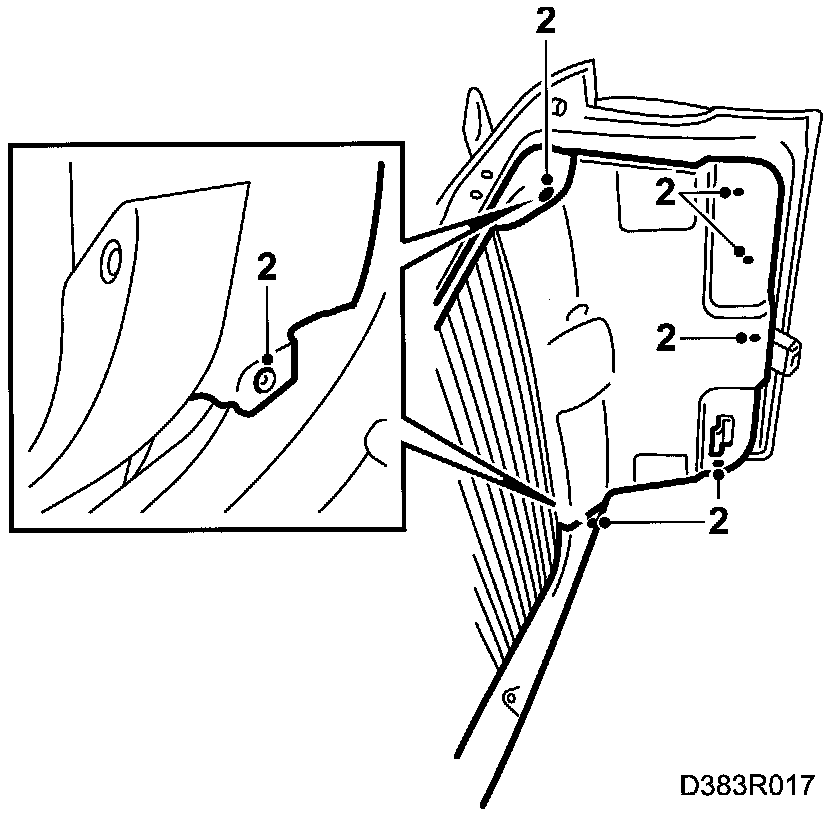

2. Remove the tailgate trim.

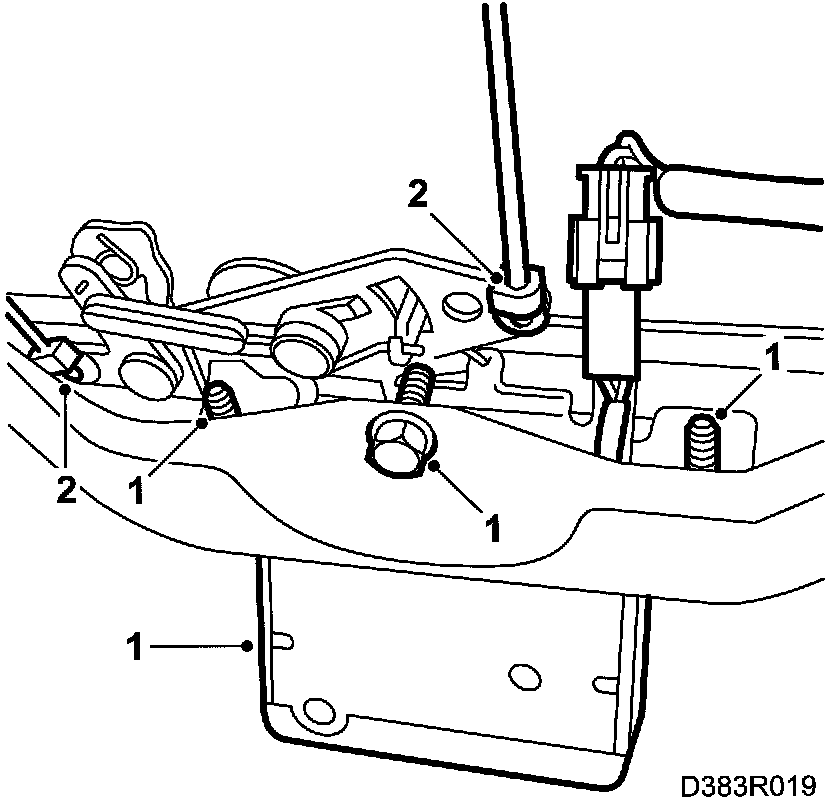

3. Loosen the pull rods from the lock (2 clips) and let them hang from the plastic joint and door handle respectively.







4. Remove the three screws holding the lock.
5. Take the lock out from the front.

To fit







1. Put the lock back in position and tighten the 3 screws.
2. Attach the pull rods.
3. Fit the trim on the tailgate.
