Door Switches

Door Switches

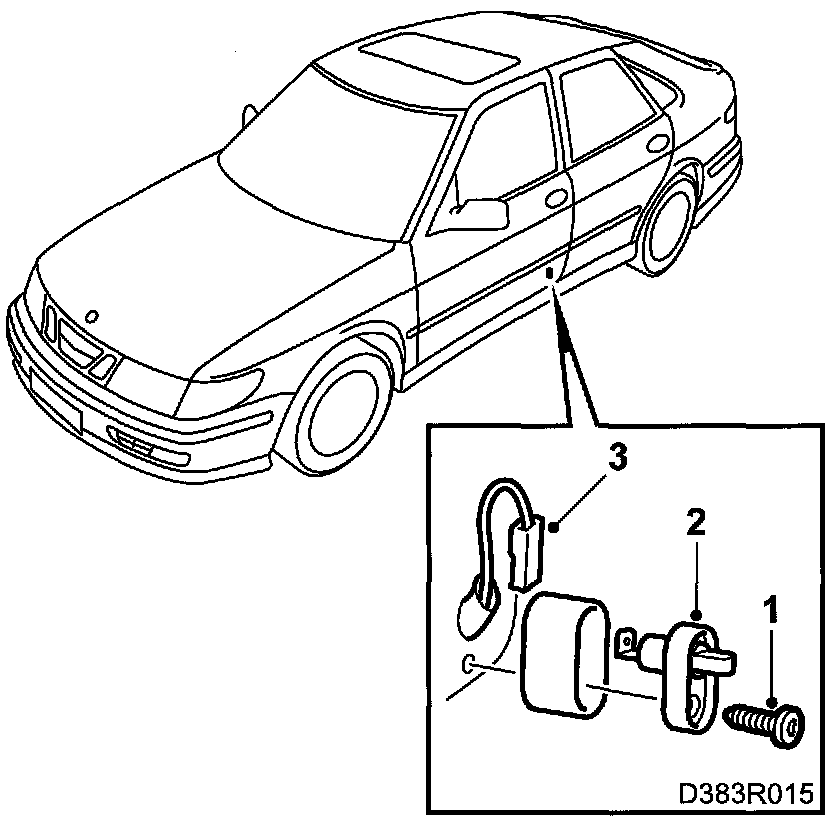

To remove







1. Remove the screws securing the door switch.
2. Lift out the door switch from the hole in the body.
3. Unplug the connector.

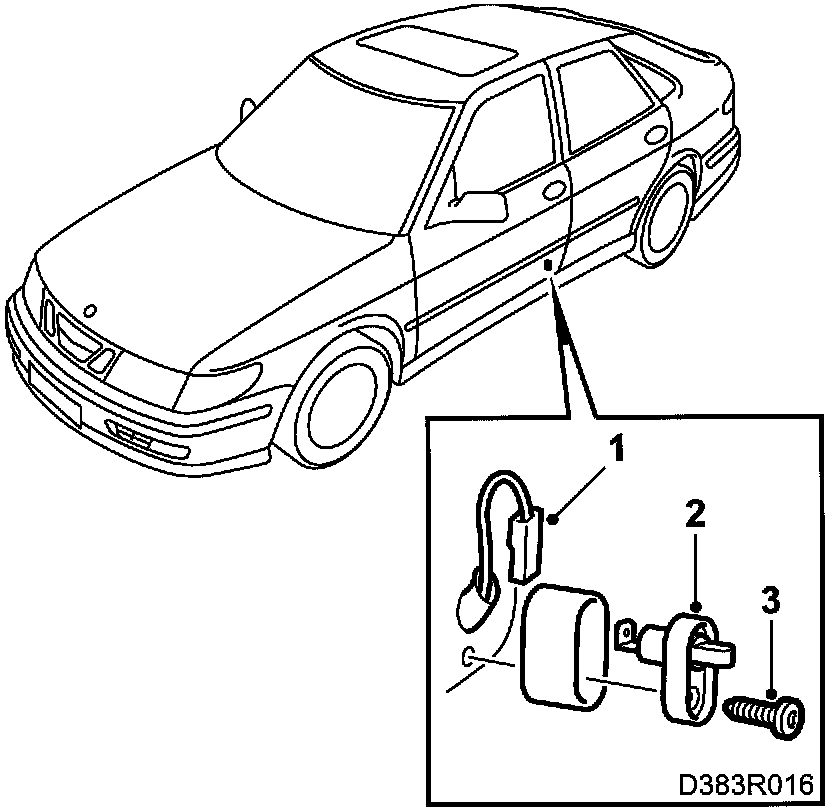

To fit







1. Plug in the connector.
2. Push the switch back into the hole in the body.
3. Replace the screws holding the door switch.
