Anti-Theft Alarm

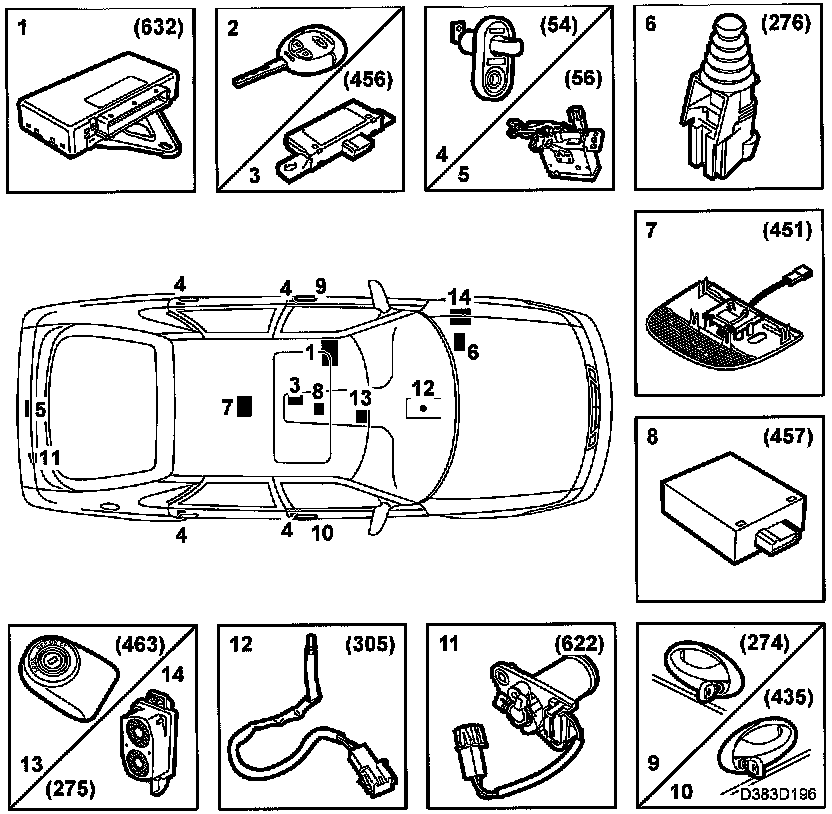

Main Components, Anti-theft Alarm







1. Control module, TWICE (632)
2. Car key
3. Antenna, remote control, central locking system (456)
4. Door switches (54D, P, RL, RR)
5. Switch, luggage compartment illumination (56)
6. Bonnet switch, anti-theft alarm (276)
7. Glass breakage sensor (451)
8. Angle sensor (457)
9. Microswitch, driver's door (274)
10. Microswitch, passenger door (435)
11. Microswitch, luggage compartment lock (622)
12. LED, anti-theft alarm (305)
13. Antenna unit, immobilizer (463)
14. Siren, anti-theft alarm (275)
