Immobilizer, Bus (Trionic T7)

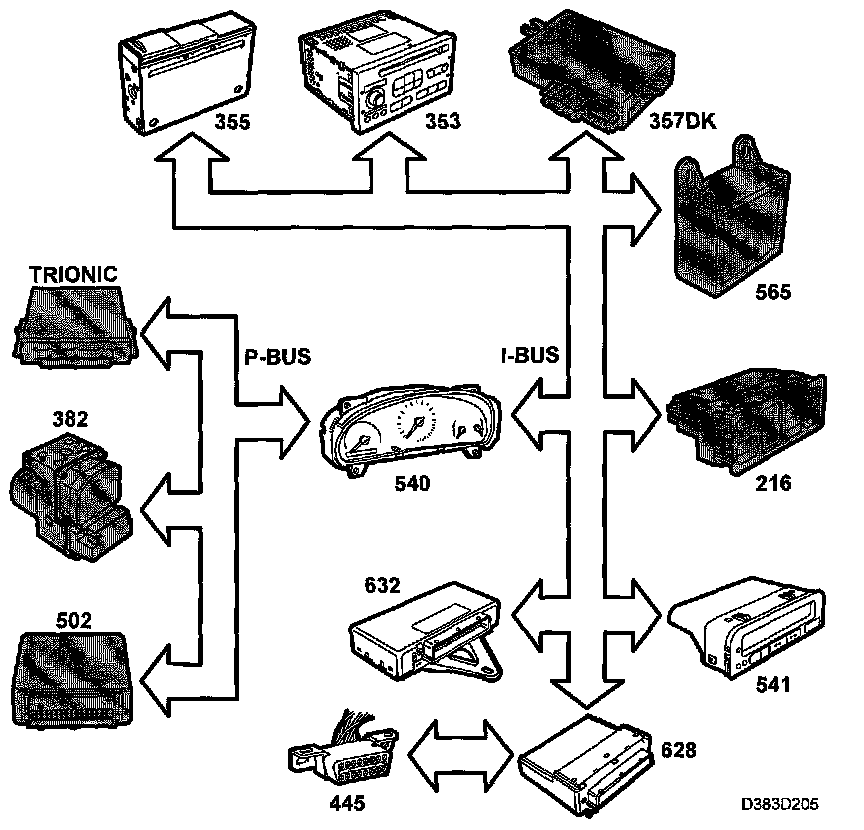

Control Module Outputs For The Immobilizer, Bus (Trionic T7)







- Immobilizer (on/off) used by MIU (540)
- Key Correct (on/off) used by Audio system (353), CD changer (355)
- Text message used by SID (541)
- Diagnostics communication

For a more detailed description of the control module's input information from the bus, see Bus communication

For a further description of diagnostics, see Bus and diagnostics communication
