Anti-Theft Alarm

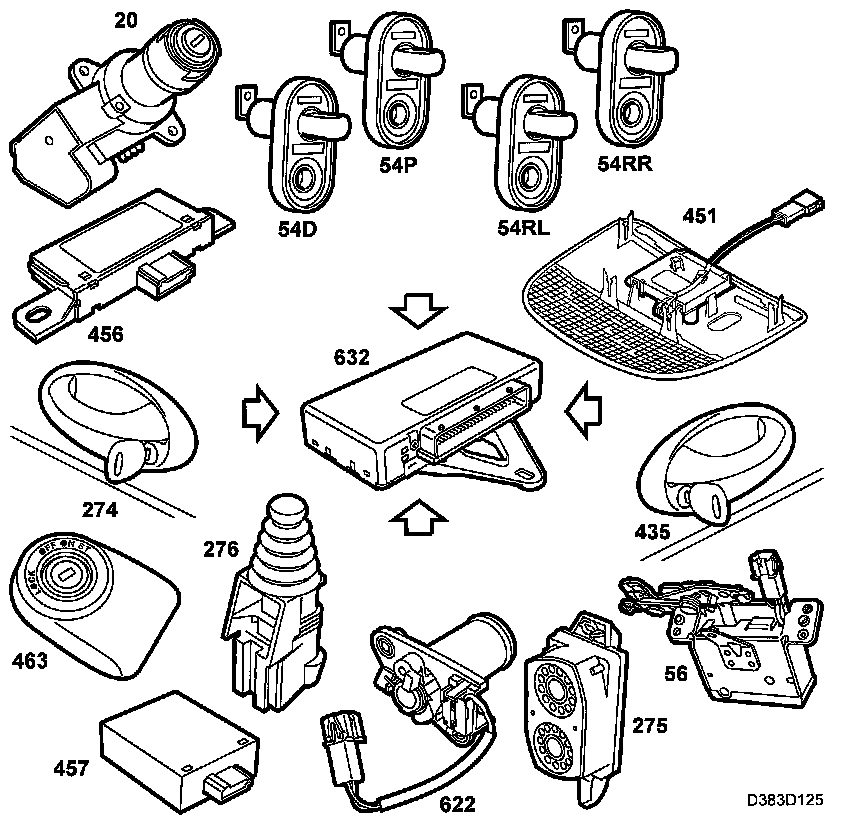

Control Module Inputs For The Anti-theft Alarm







- Microswitch, driver's door (274)
- Microswitch, passenger door (435)
- Door switch, front left (54D)
- Door switch, front right (54P)
- Door switch, rear left (54RL)
- Door switch, rear right (54RR)
- Bonnet switch, anti-theft alarm (276)
- Switch, luggage compartment illumination, 3D/5D (56)
- Switch, luggage compartment illumination, convertible (56)
- Microswitch, luggage compartment lock (622)
- Glass breakage sensor (451)
- Angle sensor (457)
- Antenna, remote control, central locking system (456)
- Antenna unit, immobilizer (463)
- Ignition switch (20)
- Siren, anti-theft alarm (275)
