Antenna, Fixed

Antenna, Fixed

To remove

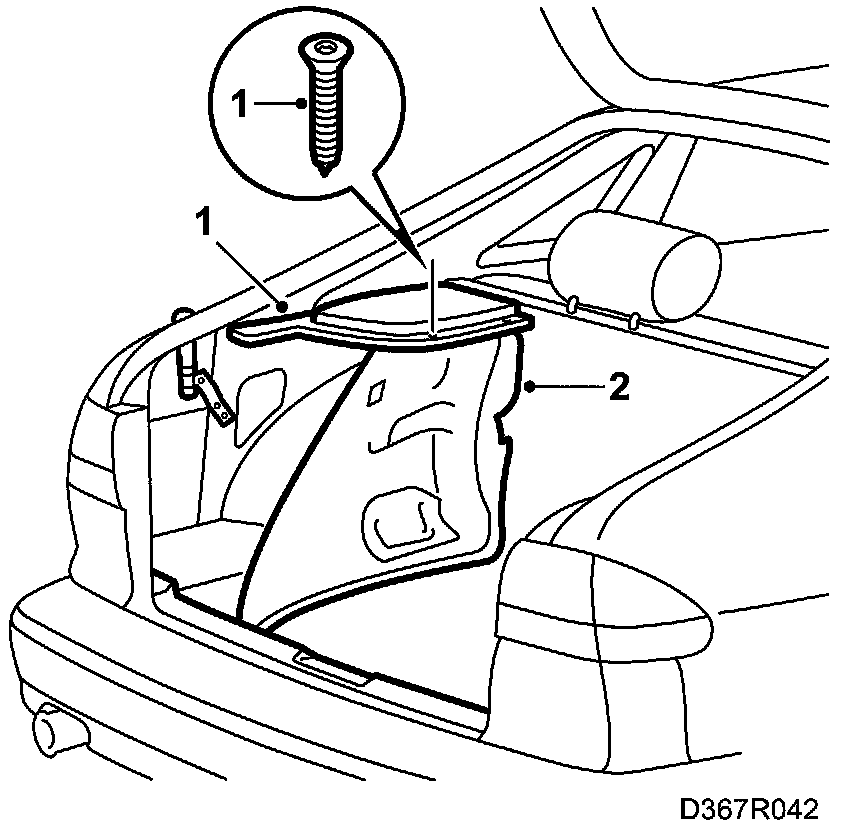

1. Remove the clips on the left-hand side trim by the rear light cluster and undo the screws securing the loudspeaker grille.
2. Fold back the trim.

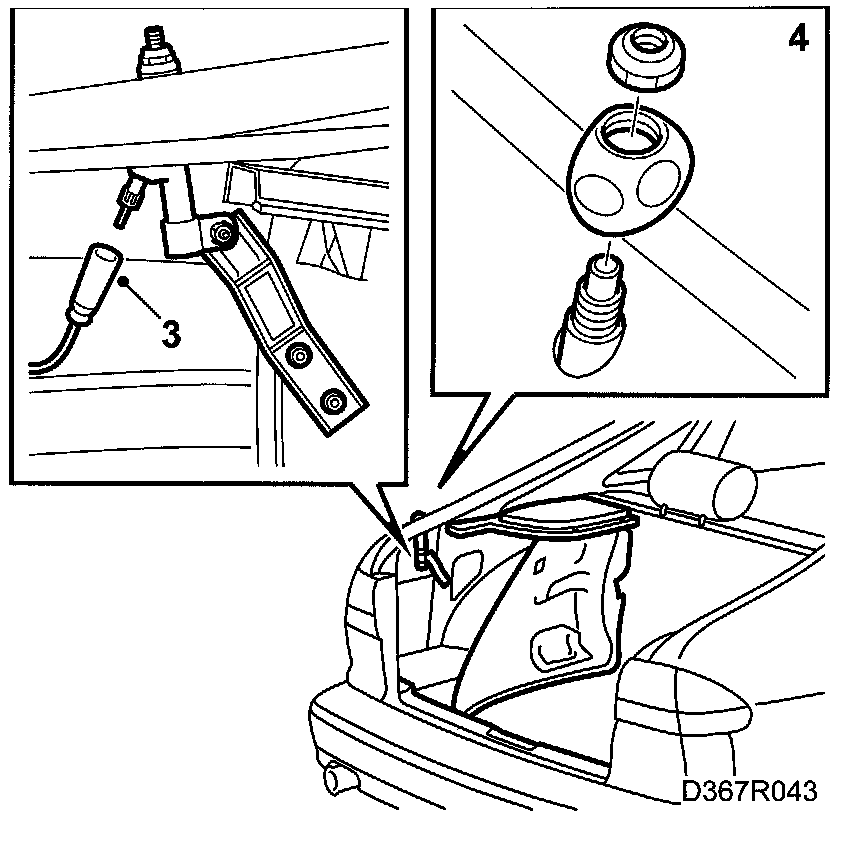

3. Unplug the antenna cable.
4. Unscrew the nut on the antenna base and lift out the antenna from the inside.

To fit
Fit in reverse order.
