Antenna, Electric

Antenna, Electric

To remove

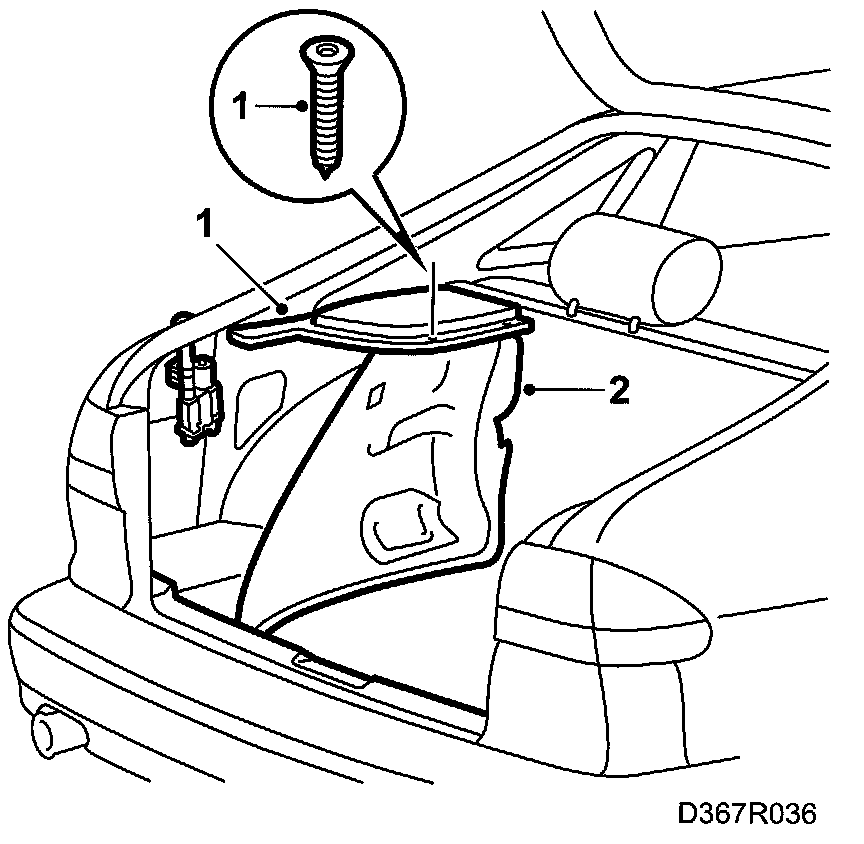

1. Remove the clips on the left-hand side trim by the rear light cluster and undo the screws securing the loudspeaker grille.
2. Fold back the trim.

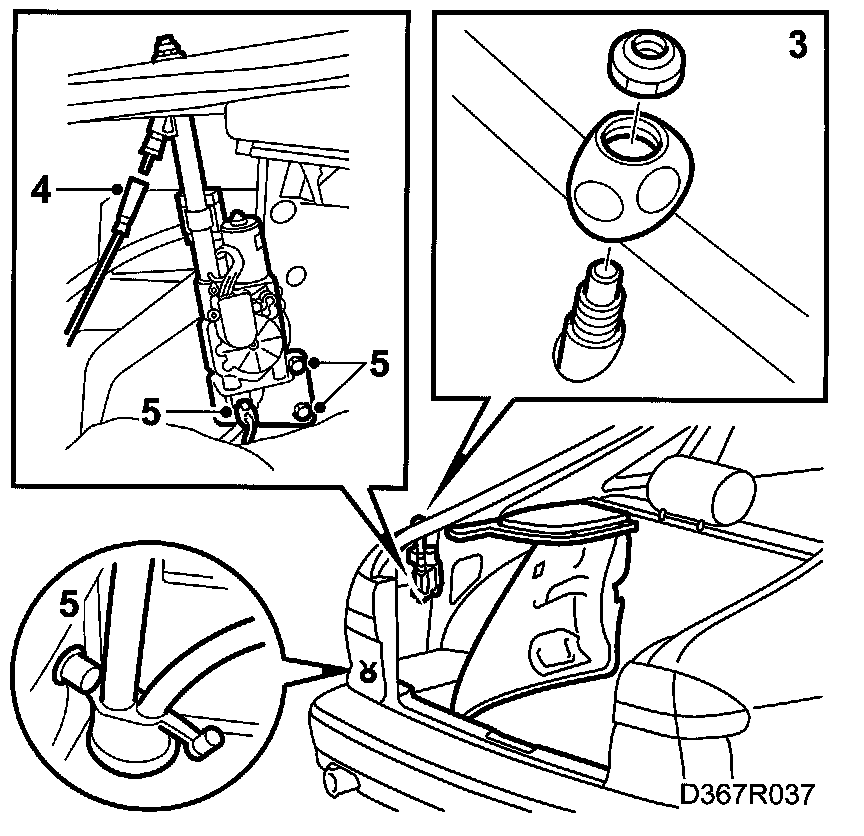

3. Unscrew the nut on the antenna base and the two screws securing the antenna.
4. Unplug the antenna cable.
5. Unplug the connector on the bracket. Undo the two screws securing the electric antenna and detach the drain hose below the rear lamp.
6. Remove the antenna from the bracket.

To fit
Fit in reverse order.
