Antenna, Phone: Service and Repair

Antenna, Fixed, Convertible

To remove

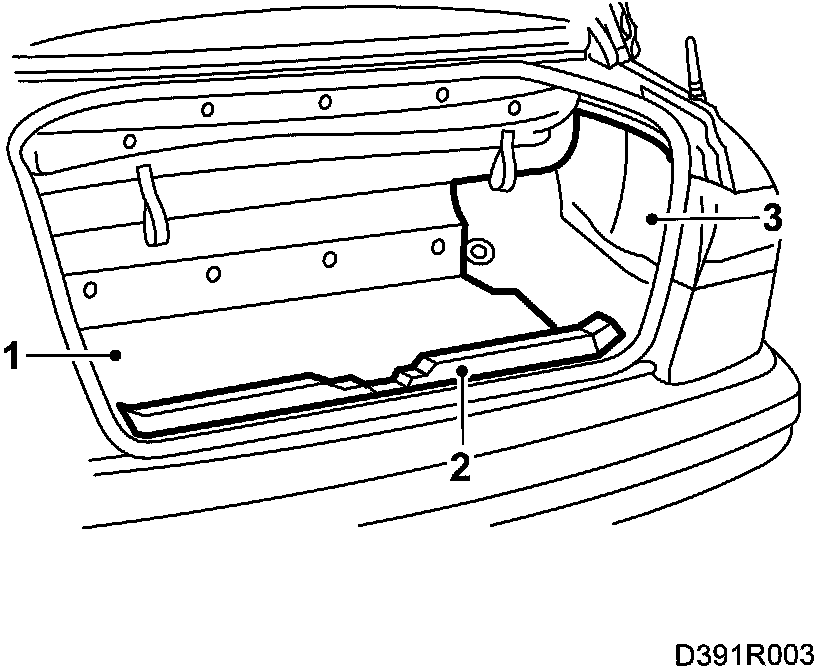

1. Fold the luggage compartment carpeting forward.
2. Remove the scuff plate.
3. Undo the luggage compartment trim from the right-hand side and bend it aside.

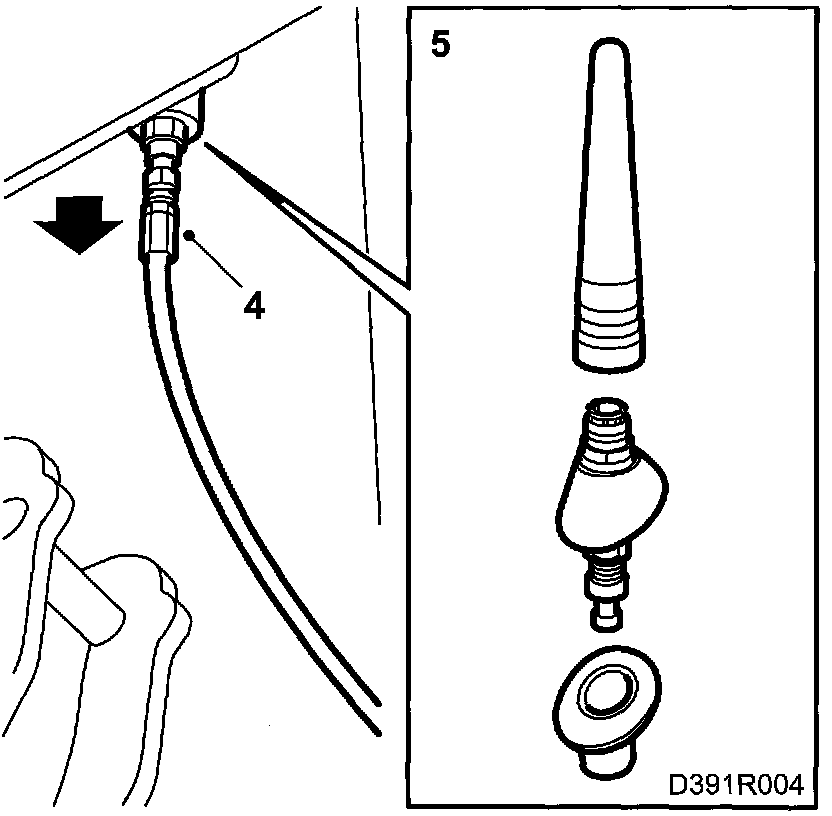

4. Unplug the antenna cable.







5. Undo the nut by the antenna foot and remove the antenna.

To fit

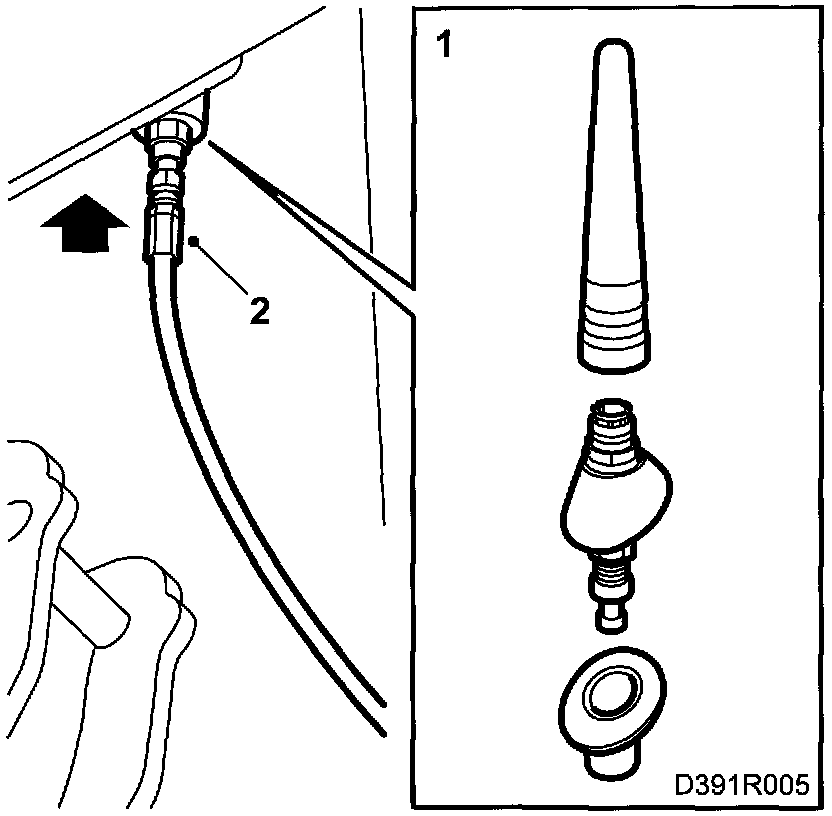

1. Fit the antenna and secure it with the nut.
Tightening torque 3.0 Nm (2.2 lbf ft)
2. Connect the antenna cable.

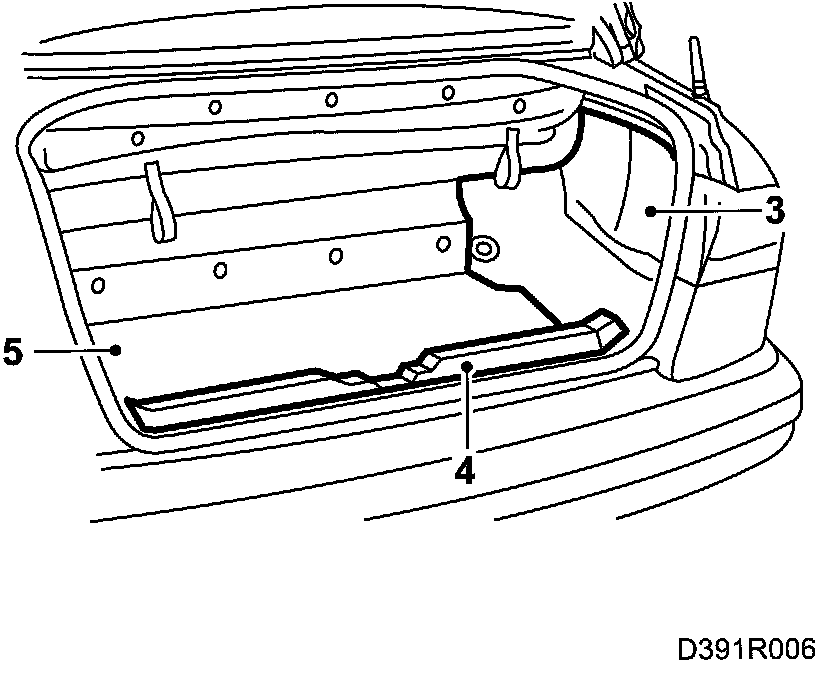

3. Bend back the luggage compartment trim.







4. Fit the scuff plate.
5. Lay out the luggage compartment carpeting.
