Fault Conditions

P1658

Charge Air Bypass Valve Circuit. Open / Short to Ground.







Fault symptoms
- CHECK ENGINE.
- Possible noise when pedal released.

On-Board Diagnostics

Type of diagnosis:
- Continuous. But interrupted when fault criteria fulfilled and will not restart until next driving cycle.

Enable criteria:
- Engine running. Main relay voltage exceeding 10 V. Output not active.

Fault criteria:
- Output voltage below 2 V for more than 1 s.

Dependents:
- None.

System reaction to a fault:
- None.

OK report:
- As for P1110: Enable criteria fulfilled and amplitude below 1 kPa. Criteria must be fulfilled on three consecutive occasions during the same driving cycle.

Fault handling: (For more information, Fault Handling III, Other Emission-Related Components and Function)

- Type III.

Diagnostic help

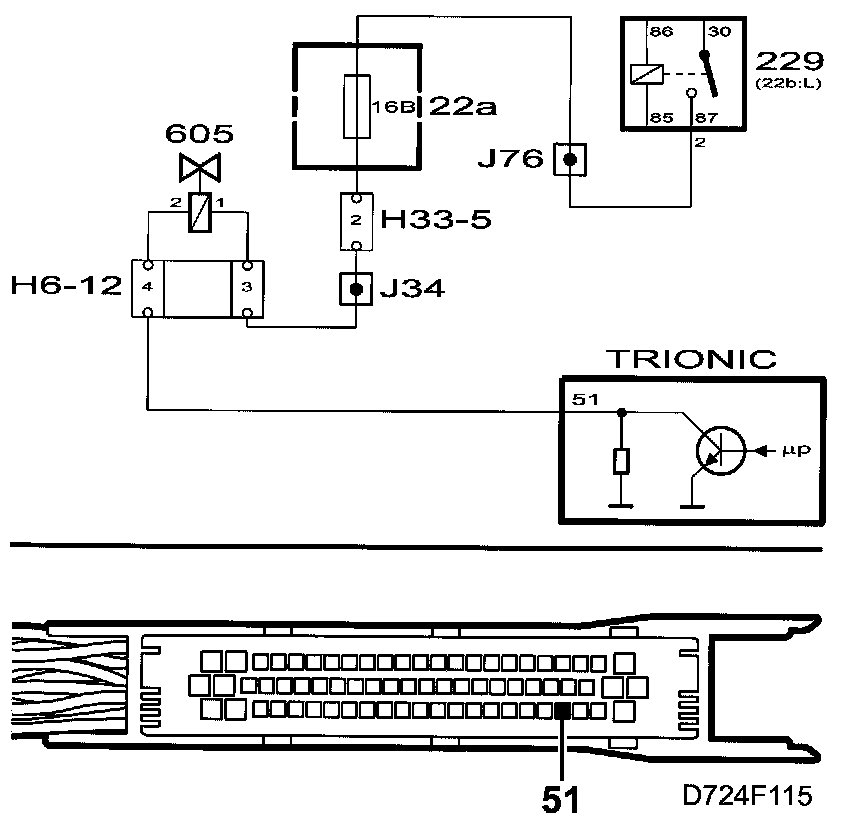

Fault diagnosis concerns an electrical fault in the connecting leads or in the valve.

Functions in the diagnostic tool related to the fault:
- Activate valve output.

For more information, refer to scan tool testing. Menu Read Values

Checking the wiring
Jiggle the wiring harness at several points and in different directions to detect intermittent breaks and short circuits. Observe the multimeter, diagnostic tool or test lamp during the check.

Proceed to Diagnostic Procedures Checking the Valve's Power Supply
