Fault Conditions

P1621

Internal Control Module. Malfunction.







Fault symptoms
- CHECK ENGINE.
- Idling speed incorrect.
- Cruise control not working.

On-Board Diagnostics

Type of diagnosis:
- Continuous. But interrupted when fault criteria fulfilled and will not restart until next driving cycle.

Enable criteria:
- Ignition in ON position.

Fault criteria:
- Processor 339 stack error.

Dependents:
- None.

System reaction to a fault:
- Throttle control goes into limp-home mode. The limp-home solenoid will be activated 5 times in succession each time the ignition is turned on until the fault has been rectified and the trouble codes cleared.

OK report:
- Accelerator pedal has been depressed at some time and then fully released. 120 s has expired since then without fault criteria being fulfilled.

Fault handling: (For more information, Description of On-Board Diagnostics)

- CHECK ENGINE goes on immediately and can be turned off only by clearing the trouble codes.

Diagnostic help

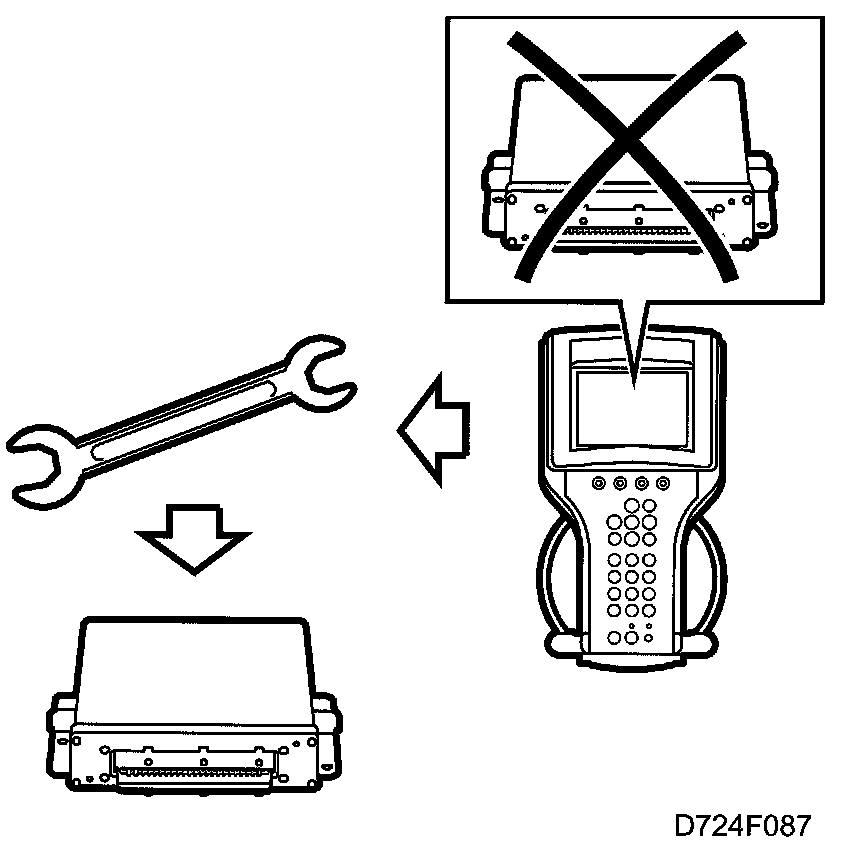

Fault diagnosis concerns internal control module fault.

Proceed to Diagnostic Procedures Changing Components
