Fault Conditions

P1531

Pedal Position Sensor 1 and 2 Circuit. Adapted Sum Out of Range.







Fault symptoms
- Limited engine speed.
- CHECK ENGINE.
- Idling speed incorrect.
- Cruise control not working.
- Starting difficulties, especially when the engine is cold.

On-Board Diagnostics

Type of diagnosis:
- Continuous. But interrupted when fault criteria fulfilled and will not restart until next driving cycle.

Enable criteria
- Ignition in ON position. Pedal fully released.

Fault criteria
- Sum of voltages from pedal position sensors 1 and 2 exceeding adapted sum by more than 6%.

Dependents
- None

System reaction to a fault
- Fuel shut-off at engine speeds above 2200 rpm. Throttle control goes into limphome mode. Limp-home solenoid will be activated 5 times in succession each time the ignition is turned on until the fault has been rectified and the trouble codes cleared.

OK report
- Accelerator pedal has been depressed at some time and then fully released. 120 s has expired since then without fault criteria being fulfilled.

Fault handling: (For more information, Description of On-Board Diagnostics)

- CHECK ENGINE goes on immediately and can be turned off only by clearing the trouble codes.

Diagnostic help

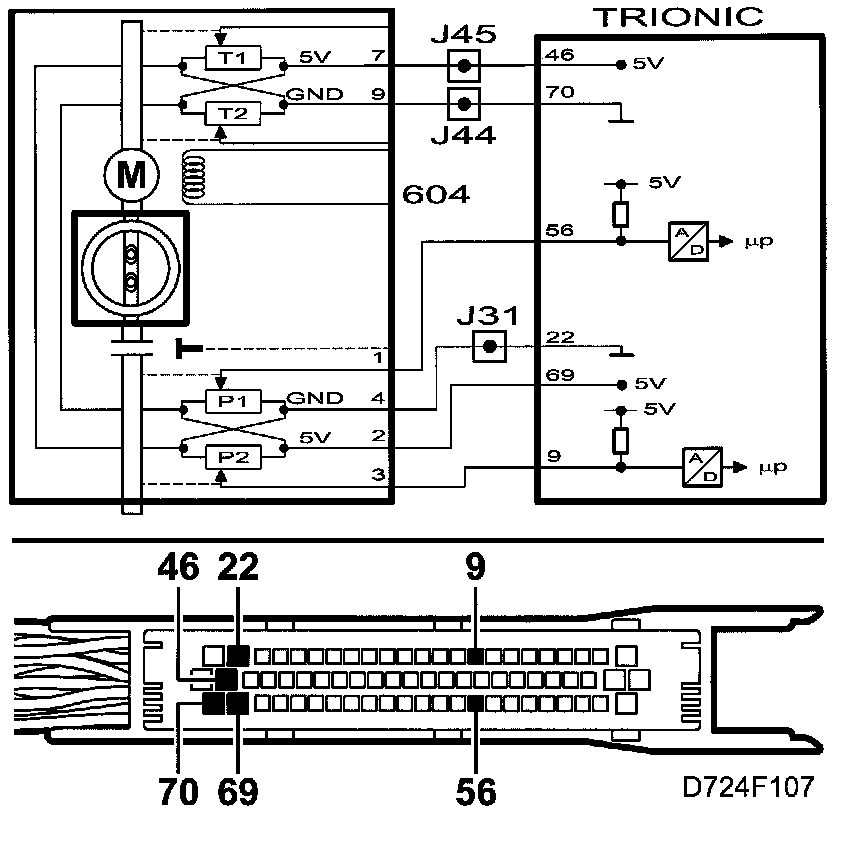

Fault diagnosis concerns electrical fault in connecting leads or in one of the sensors.

Functions in the diagnostic tool related to the fault:
- Pedal Position Sensor 1, unit V.
- Pedal Position Sensor 2, unit V.

For more information, refer to scan tool testing. Menu Read Values

Checking the wiring
Jiggle the wiring harness at several points and in different directions to detect intermittent breaks and short circuits. Observe the multimeter, diagnostic tool or test lamp during the check.

Proceed to Diagnostic Procedures Checking the Sensor's Grounding
