Fault Conditions

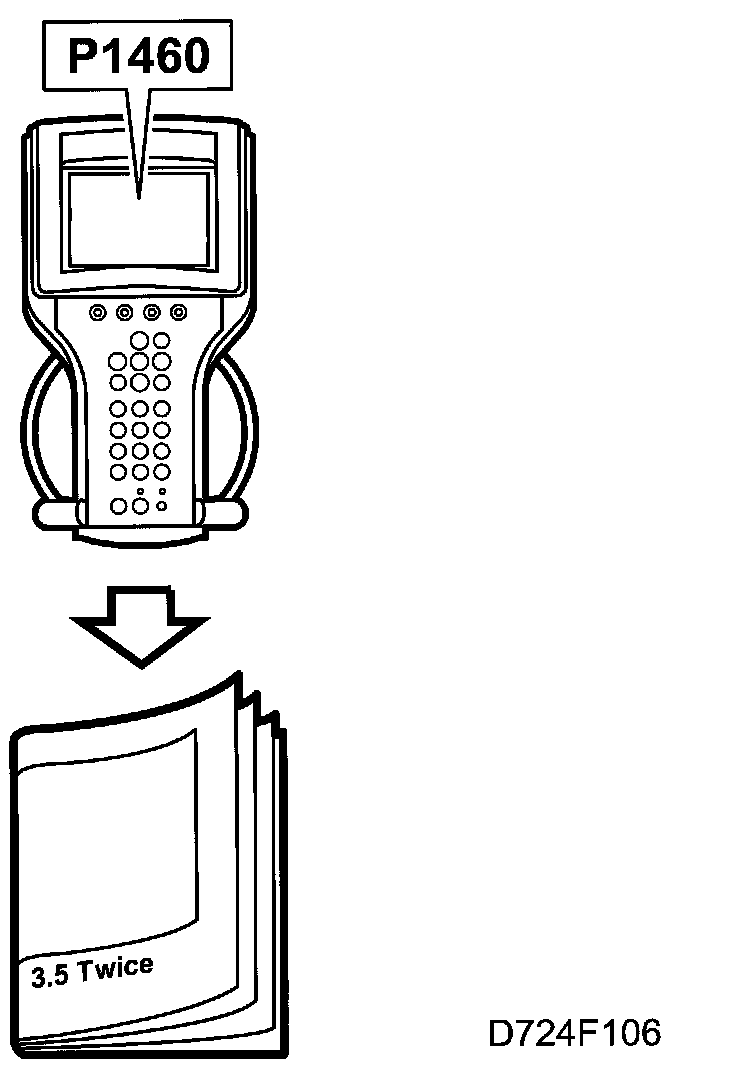

P1460

Immobilizer Active. NOTE. If new T7, MIU or TWICE module, program code in TWICE.







Fault symptoms
- Engine will not start.

On-Board Diagnostics

Type of diagnosis:
- Continuous. But interrupted when fault criteria fulfilled and will not restart until next driving cycle.

Enable criteria:
- Ignition ON

Fault criteria:
- Immobilizer code from TWICE incorrect or missing.

Dependents:
- None.

System reaction to a fault:
- Fuel shut-off.

OK report:
- Enable criteria fulfilled. Fault criteria not fulfilled within 60 s.

Fault handling: (For more information, Fault Handling III, Other Emission-Related Components and Function)

- Type III. CHECK ENGINE does not go on.

Diagnostic help
Fault diagnosis concerns unprogrammed transponder or unprogrammed immobilizer code in TWICE.

Functions in the diagnostic tool related to the fault:
- Group FUEL CUT, reading: Trouble Code Detected, unit ON/OFF

For more information, refer to scan tool testing. Menu Read Values

NOTE: Program immobilizer code in TWICE after fitting new control module (Trionic T7, TWICE or MIU).

Proceed to Diagnostic Procedures Reference
