Fault Conditions

P0605

Internal Control Module. Malfunction.







Fault symptoms
- CHECK ENGINE.
- Engine will not start.

On-Board Diagnostics

Type of diagnosis:
- Once per driving cycle. Interrupted when fault criteria fulfilled or OK reported. Restarts next driving cycle.

Enable criteria:
- Ignition in ON position.

Fault criteria:
- Flash memory checksum error.

Dependents:
- None.

System reaction to a fault:
- Fuel shut-off.

OK report:
- Flash memory checksum correct.

Fault handling: (For more information, )

- Type III.

Diagnostic help

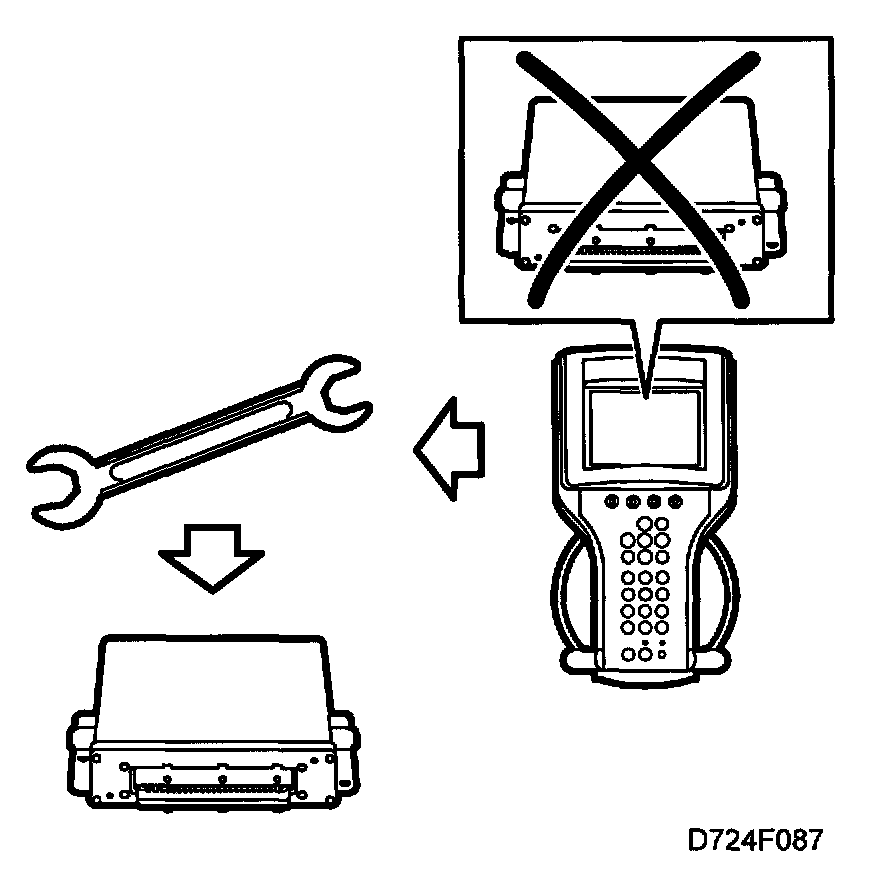

Flash memory incorrectly programmed, which means that the control module must be changed unless it can be reprogrammed.

Proceed to Diagnostic Procedures Resetting the Limp-Home Mechanism
