P0560

P0560

Battery Voltage. Voltage Incorrect.







Fault symptoms
CHECK GEARBOX indicator lamp on.
TCM in limp-home mode

Conditions
Battery voltage below 9V or higher than 18V for more than 0.5 seconds.

Diagnostic help
Diagnostic trouble code P0560 is not a fault in the true sense. Other diagnostic trouble codes may be generated if battery voltage is outside the normal limits.

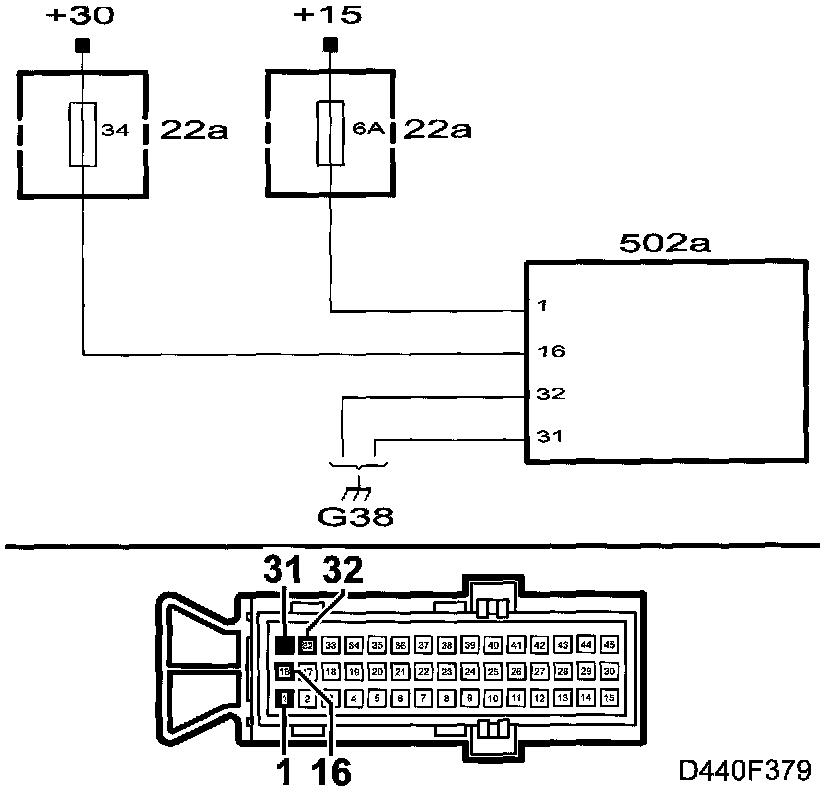

Check the wiring
Jiggle the wiring harness at several points and in different directions to reveal intermittent breaks and short circuits in the various leads. Observe the multimeter, test lamp or diagnostic instrument while carrying out this check.
