Fault Conditions

P0118

Engine Coolant Temperature Sensor Circuit. Short to B+ / Open circuit.







Fault symptoms
- CHECK ENGINE.
- A/C malfunctioning.
- Radiator fan running continuously when ignition is ON.
- Temperature gauge displaying incorrect value.
- Misfiring can occur before trouble code is generated.

On-Board Diagnostics

Type of diagnosis:
- Continuous. But interrupted when fault criteria fulfilled and will not restart until next driving cycle.

Enable criteria:
- Engine running.

Fault criteria:
- Voltage higher than 4.910 V for more than 1 s.

Dependents:
- None.

System reaction to a fault:
- A substitute value is continually calculated according to the following method: Intake air temperature at start is incremented 1 degree C per 60 g air mass/sec. The value is maximized to 90 degree C and is used as soon as the fault criteria for the sensor is fulfilled.

OK report:
- P0116 Test 1 and Test 2 performed once and fault criteria not fulfilled. Fault criteria for P0117 or P0118 not fulfilled.

Fault handling: (For more information, Fault Handling III, Other Emission-Related Components and Function)

- Type III.

Diagnostic help

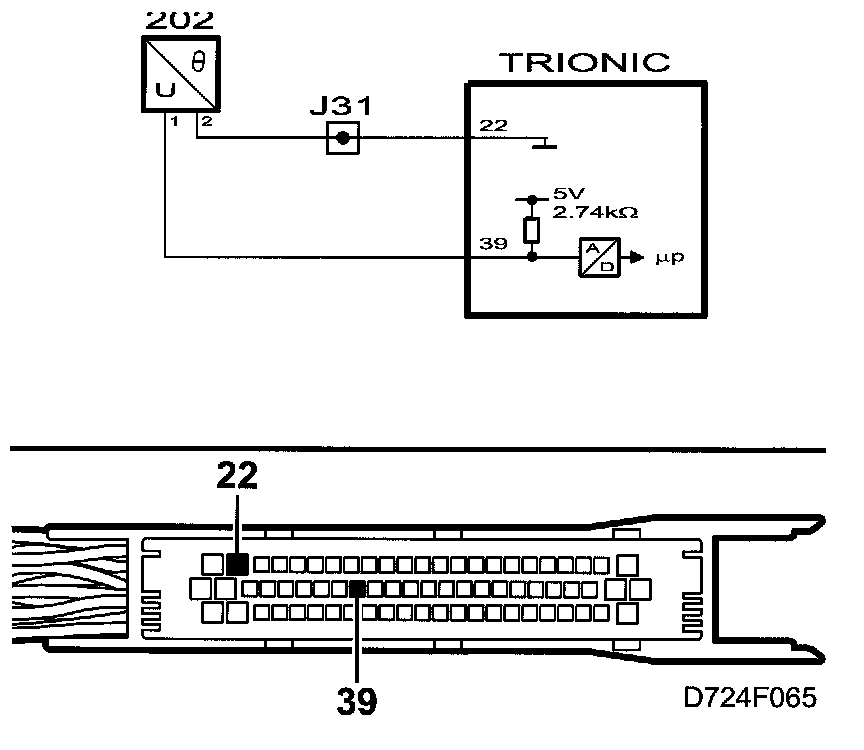

Fault diagnosis concerns an electrical fault in connecting leads or in the sensor.

Functions in the diagnostic tool related to the fault:
- Diagnostic status for the diagnosis.
- Temperature sensor value, unit degree C.

For more information, refer to scan tool testing. Menu Read Values

Checking the wiring
Jiggle the wiring harness at several points and in different directions to detect intermittent breaks and short circuits. Observe the multimeter, diagnostic tool or test lamp during the check.
