TC/ABS 5.3

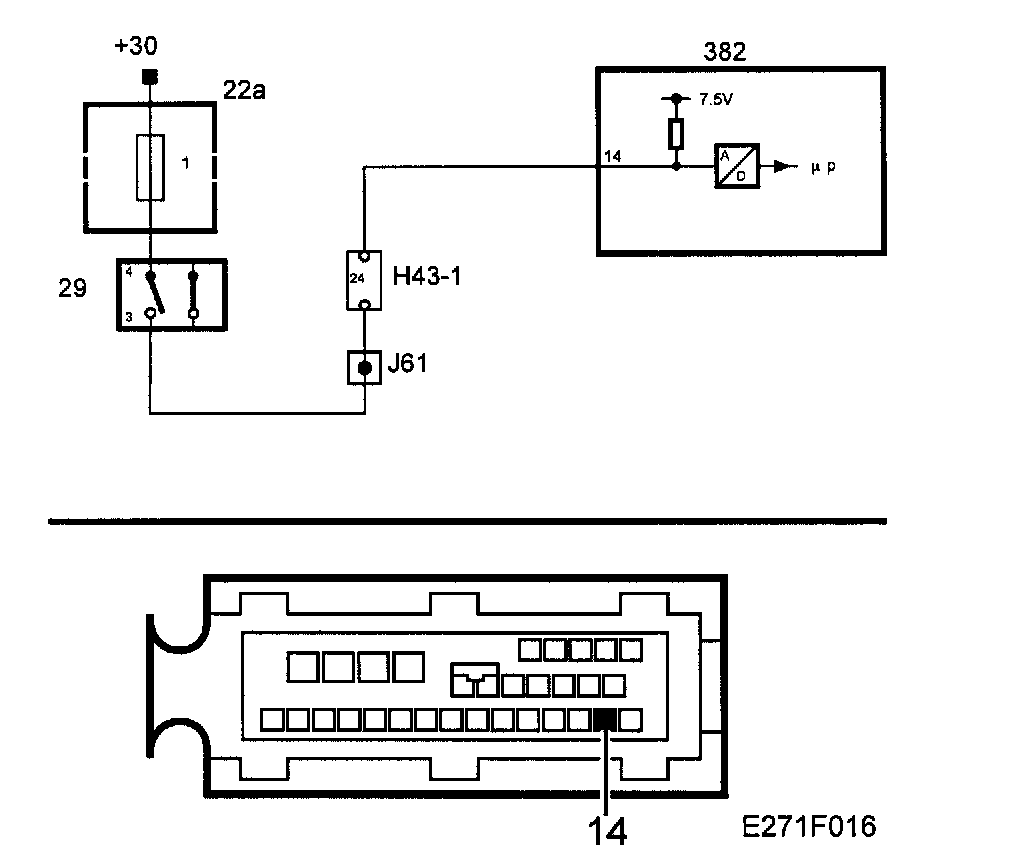

DTC C2470 Brake Lights Switch. Open Circuit






Fault symptoms
No fault symptoms.

Conditions
Fault generated on open circuit for longer than 1 second.

Diagnostic help
The diagnostic tool can be used to determine the ON/OFF status of the brake-lights switch.
- Select "Read values".
- Select "Brake light switch".
