TC/ABS 5.3

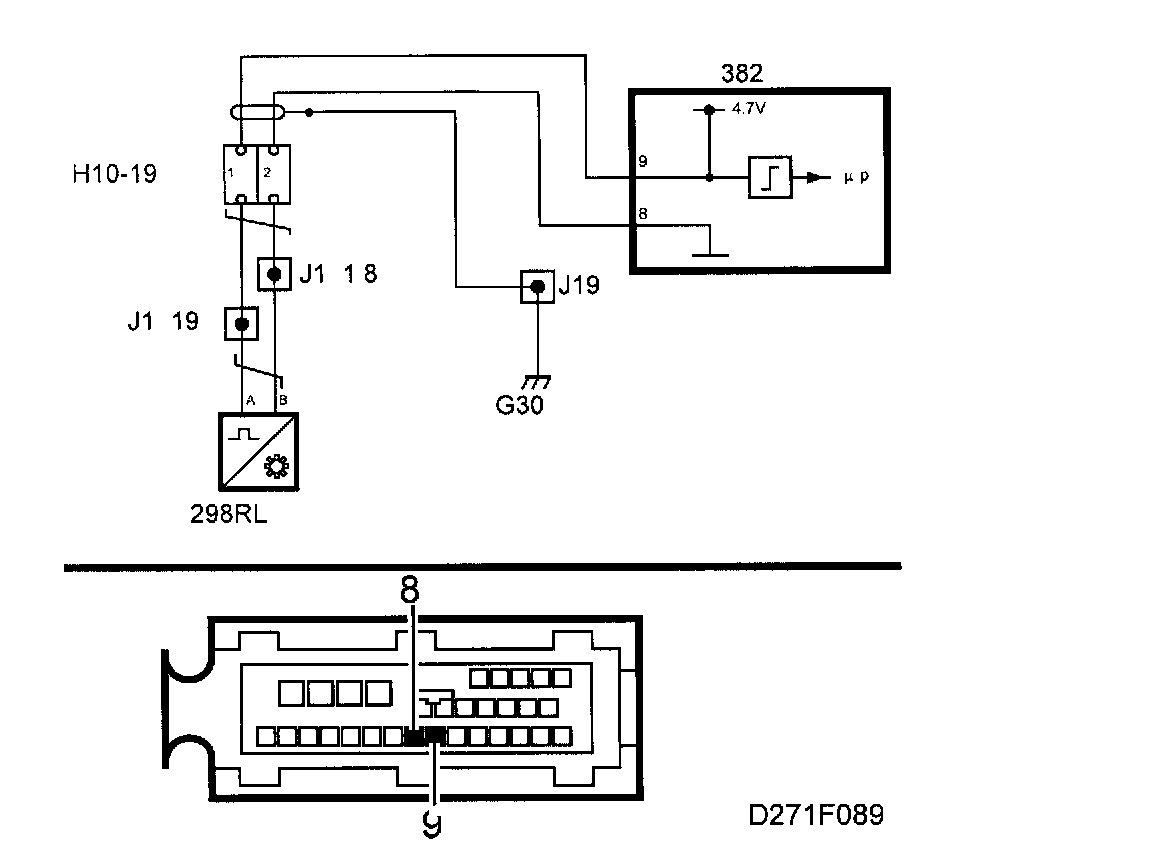

DTC C1381 Wheel Sensor Rear Left, Signal Incorrect






Fault symptoms
Warning lamps for ABS and brakes are on as also is the central warning lamp.
TCS OFF warning lamp is on,
No ABS or TCS function.

Conditions
^ Speed signal not present for longer than 10 ms when vehicle speed exceeds 40 km/h (25 mph).
^ Speed signal incorrect if vehicle speed exceeds 12 km/h (7.5 mph).


Diagnostic help
^ A reading of the rear left wheel speed sensor can be obtained with the diagnostic tool.
- Select "Read values".
- Select "Wheel Speed Rear Left ".

Current wheel speed in km/h (mph) is displayed.
^ With the rear wheels of the car raised, the diagnostic tool should read approximately 5 km/h (3.1 mph) if the rear left wheel is rotated by hand at about 1 rev./second.
