With ABS 5.4

DTC C1371 Wheel Sensor Front Left. Signal Incorrect






Fault symptoms
ABS warning lamp on. ABS not functioning.

Conditions
^ Speed signal absent for more than 10 ms when road speed above 40 km/h.
^ Speed signal faulty when road speed above 12 km/h.

Diagnostic help

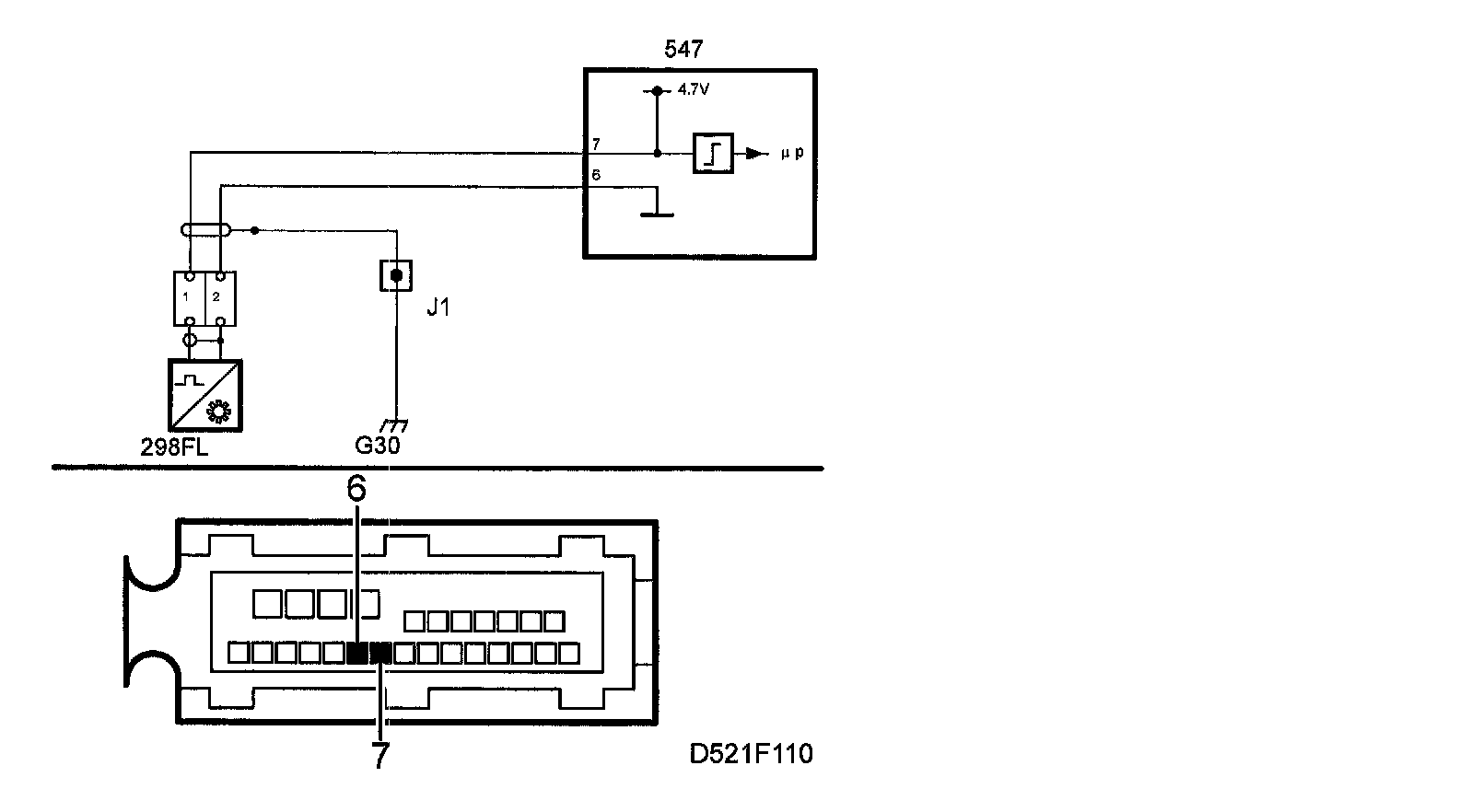

^ FL wheel speed sensor signal can be read using diagnostic tool.
- Select "Read Values".
- Select "Wheel Speed Front Left".

The current wheel speed in km/h is displayed.
^ With the front of the car raised off the ground, the diagnostic tool should show a reading of about 5 km/h when the FL wheel is rotated by hand at a speed of about one turn a second.
