C0551

DTC C0551 Control Module Not Programmed






Fault symptoms
TCS OFF warning lamp on. No TCS function.

Conditions
TC/ABS control module not programmed for engine variant in question.

Diagnostic help

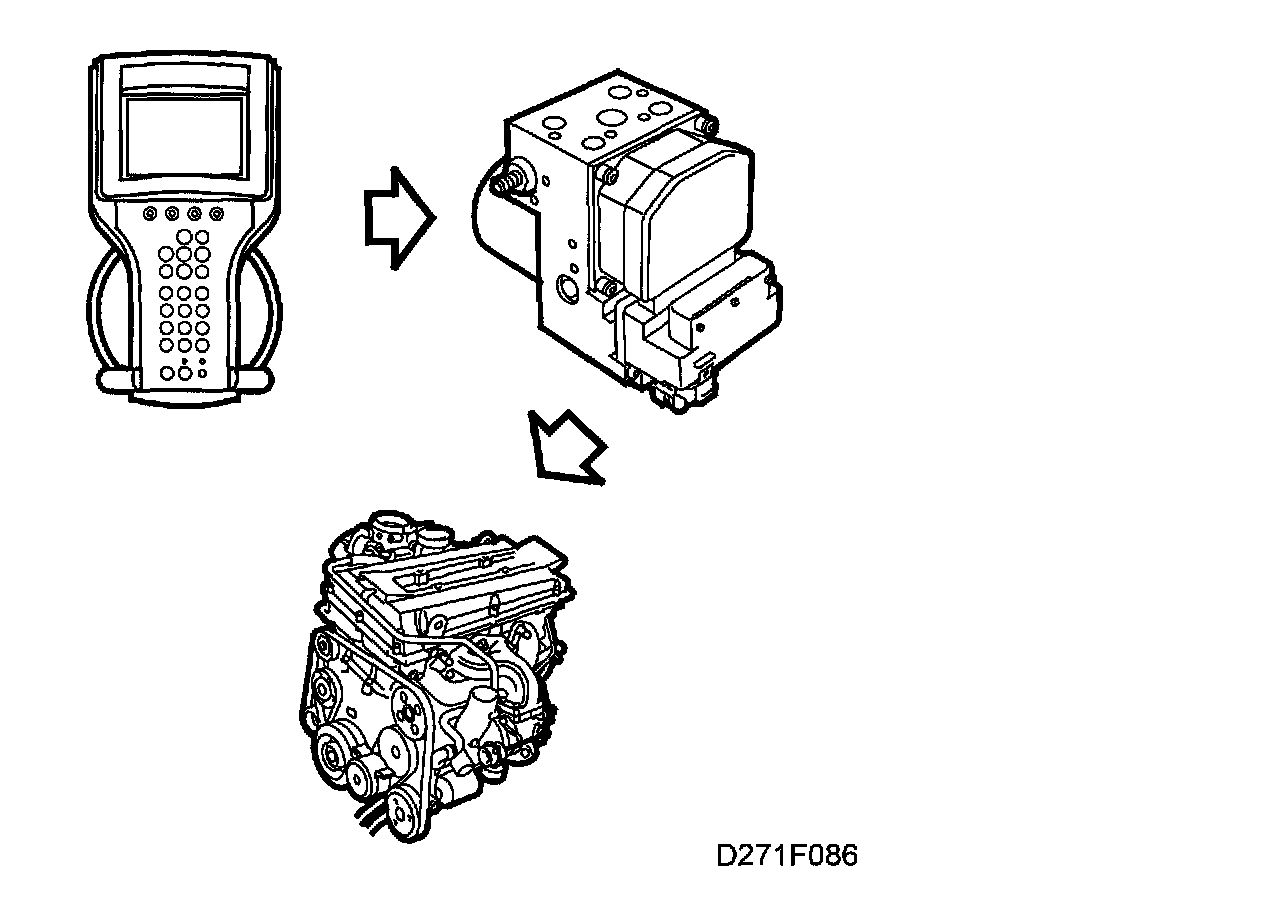

Variant programming of the TC/ABS control module is performed with the diagnostic tool.
- Select "TC/ABS"
- Select "Programming"
program the TC/ABS control module for the correct engine variant.
