B2945

B2945

Sensor ground. Open circuit/shorted to B+







Fault symptom
Experienced temperature in cabin is too high or low when compared to set temperature.


Conditions
The following conditions apply:
- Measured every 40 ms.

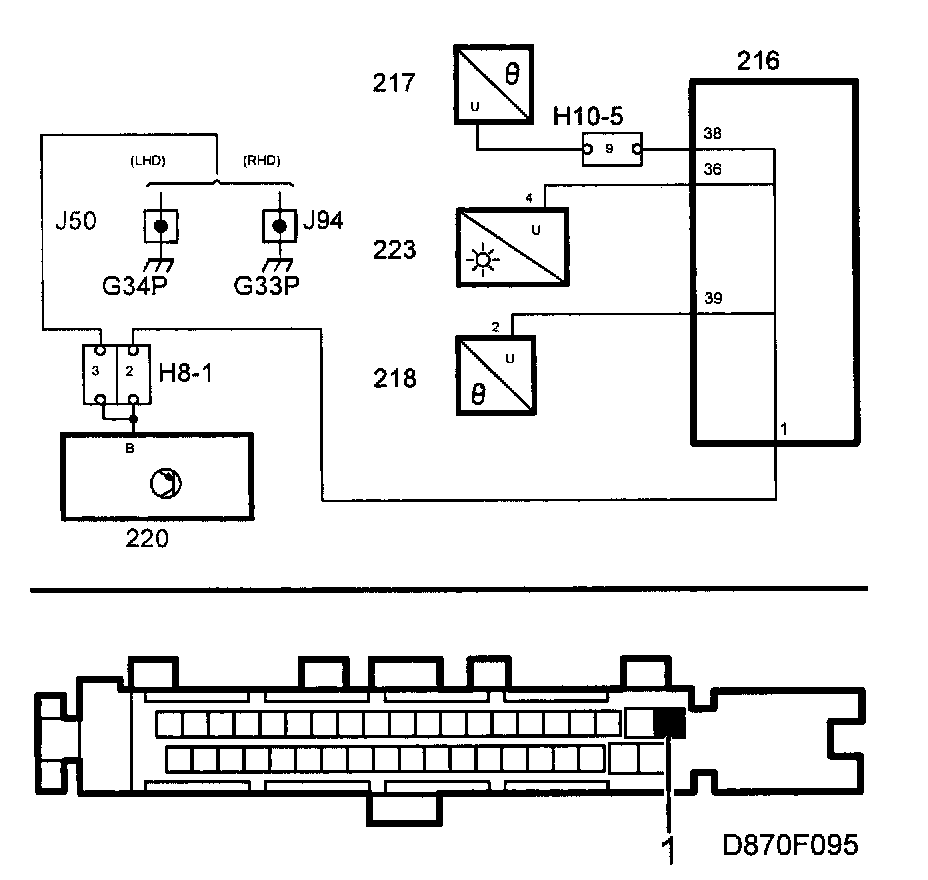

- Voltage on pins 36, 38 or 39 >0.4 V.
