Check the Contact Roller

Check The Contact Roller

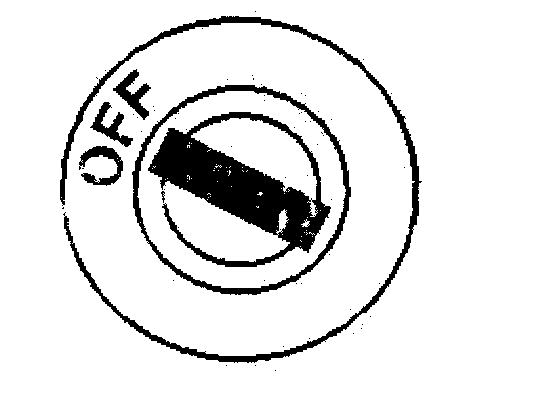

Turn the ignition switch to the OFF position.

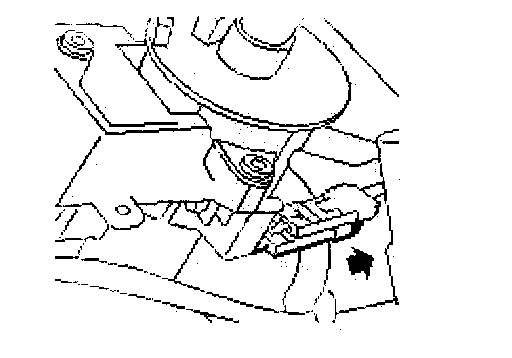

Unplug the connector:
Control module, Airbag 331
- Connect the break-out box (BOB) to the wiring harness.

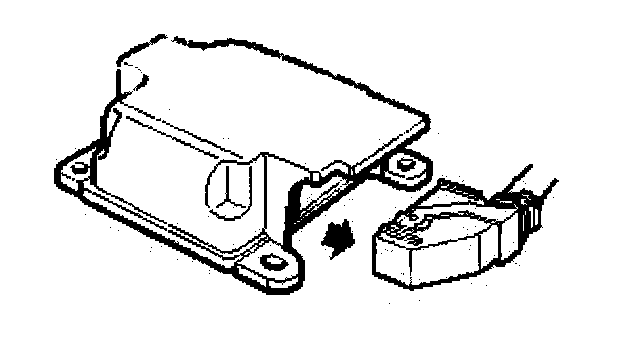

Unplug the connector:
Airbag, driver 333D







- Check that the contact roller connection is not defective.

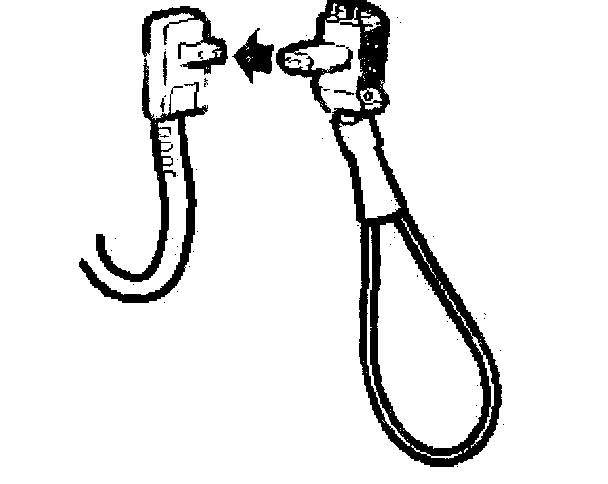

- Connect reference resistor 86 12 095 to the 2-pin female connector.

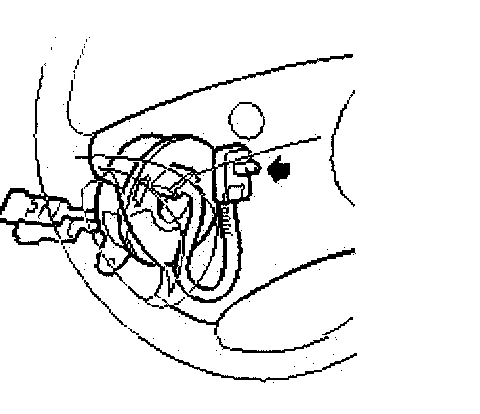

Unplug the connector:
Contact roller, steering wheel 336a

- Check that the contact roller's orange 3-pin connector is not defective.

- Select the diagnostic trouble code that was generated

B1332, B1333
B2332, B2333
