Check the Contact Roller

Check The Contact Roller

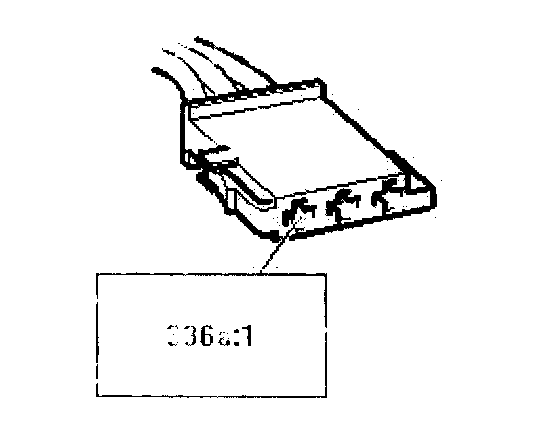

Measure the resistance across:
- 1 Contact roller, steering wheel







- B-







- Jiggle the leads and in-line connectors at several places and in different directions to reveal intermittent breaks and short circuits in the wiring harness. Observe the multimeter, test lamp or diagnostic tool while doing this.

The reading obtained should be infinity

Is the function correct?

NO - Changing Components - I

YES - Continue to Check the contact roller

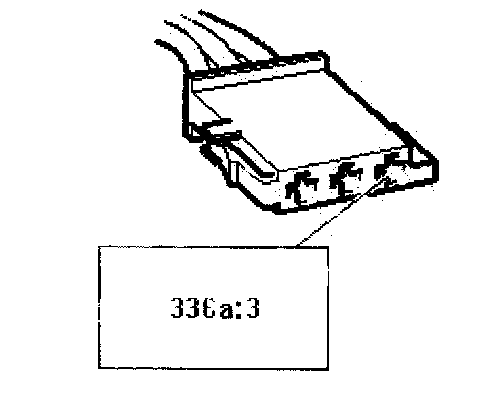

Measure the resistance across:
- 3 Contact roller, steering wheel







- B-







- Jiggle the leads and in-line connectors at several places and in different directions to reveal intermittent breaks and short circuits in the wiring harness. Observe the multimeter test lamp or diagnostic tool while doing this.

The reading obtained should be infinity


Is the function correct?

NO - Final Check

YES - Check the Wiring Harness Between the Control Module and Airbag
