B1150

B1150

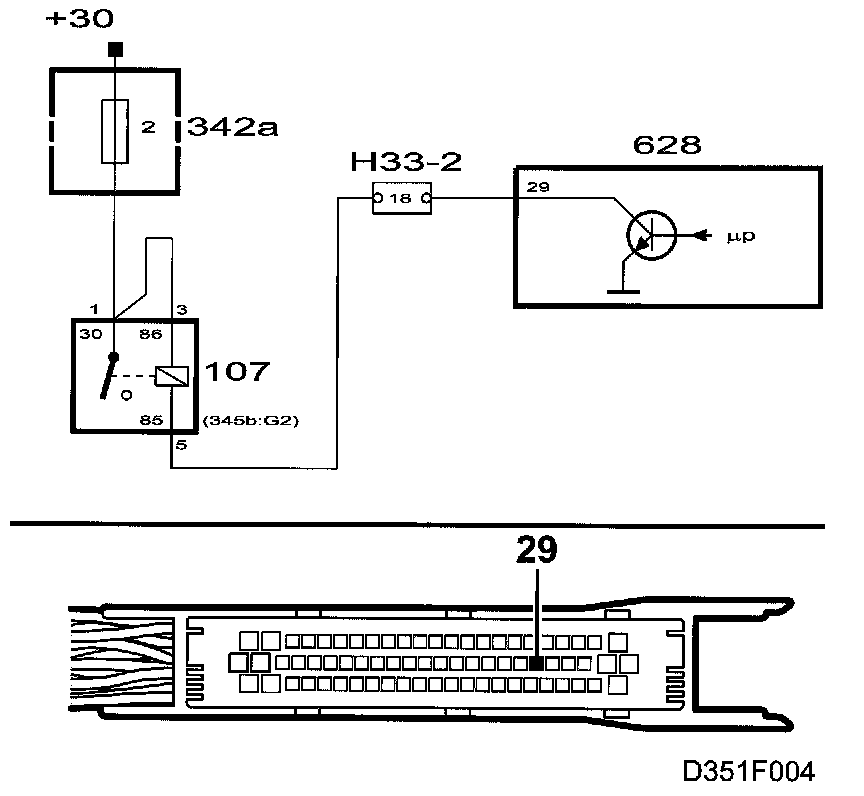

Front fog light relay







Fault symptoms
Fog light malfunction.

Condition
The control module output is monitored and a DTC generated if there is a:
- Open/short circuit to ground.
- Shorting to battery positive B+.

DTCs are not generated if the voltage is below 11V or during diagnostic communication.

Diagnostic help
The output from DICE can be activated with the diagnostic tool.

DTCs are not generated if the voltage is below 11 V or during diagnostic communication with DICE.
