B1115

B1115

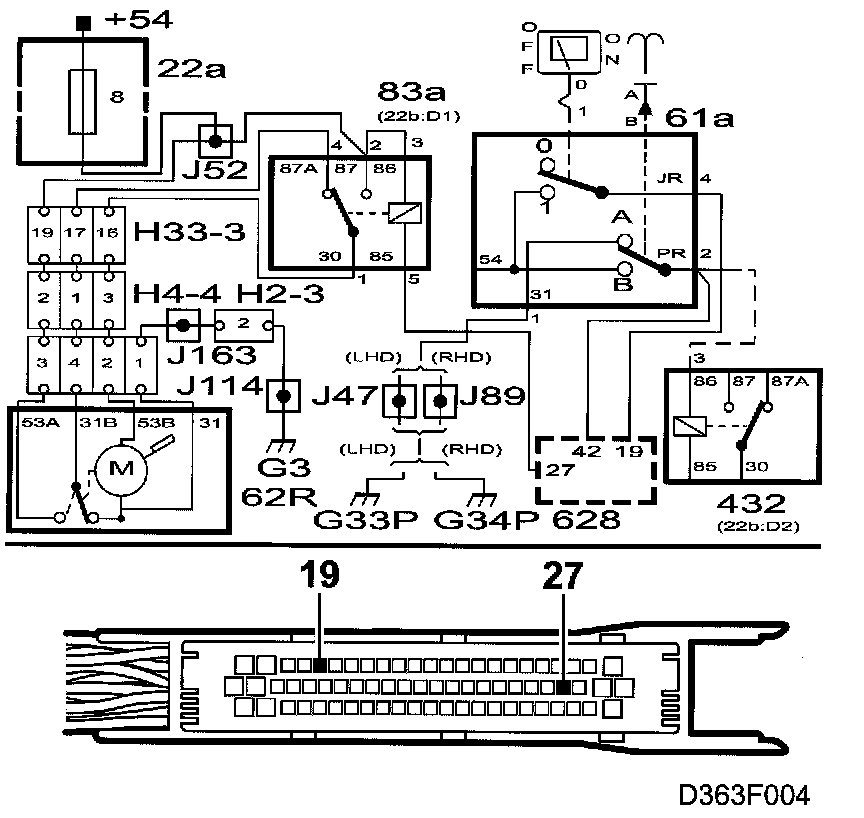

Relay, rear window wiper







ALLDATA Editor Note: This code is for the Rear Window Wiper System and as such only applies to the Wagon Model with a rear window wiper, it is included here on the convertible, simply for your reference.

Fault symptoms
The intermittent function for the rear window wiper is not working.

Circumstances
The control module output is monitored and a DTC generated if there is a:
- Break/short circuit to ground.
- Short circuit to B+.

DTCs are not generated when the voltage is below 11 V and the diagnostic communication is in use.

Diagnostic help
The output from DICE can be activated with the diagnostic tool.
