Motor, Electric Window Lift, Driver (164D)



Location: in door

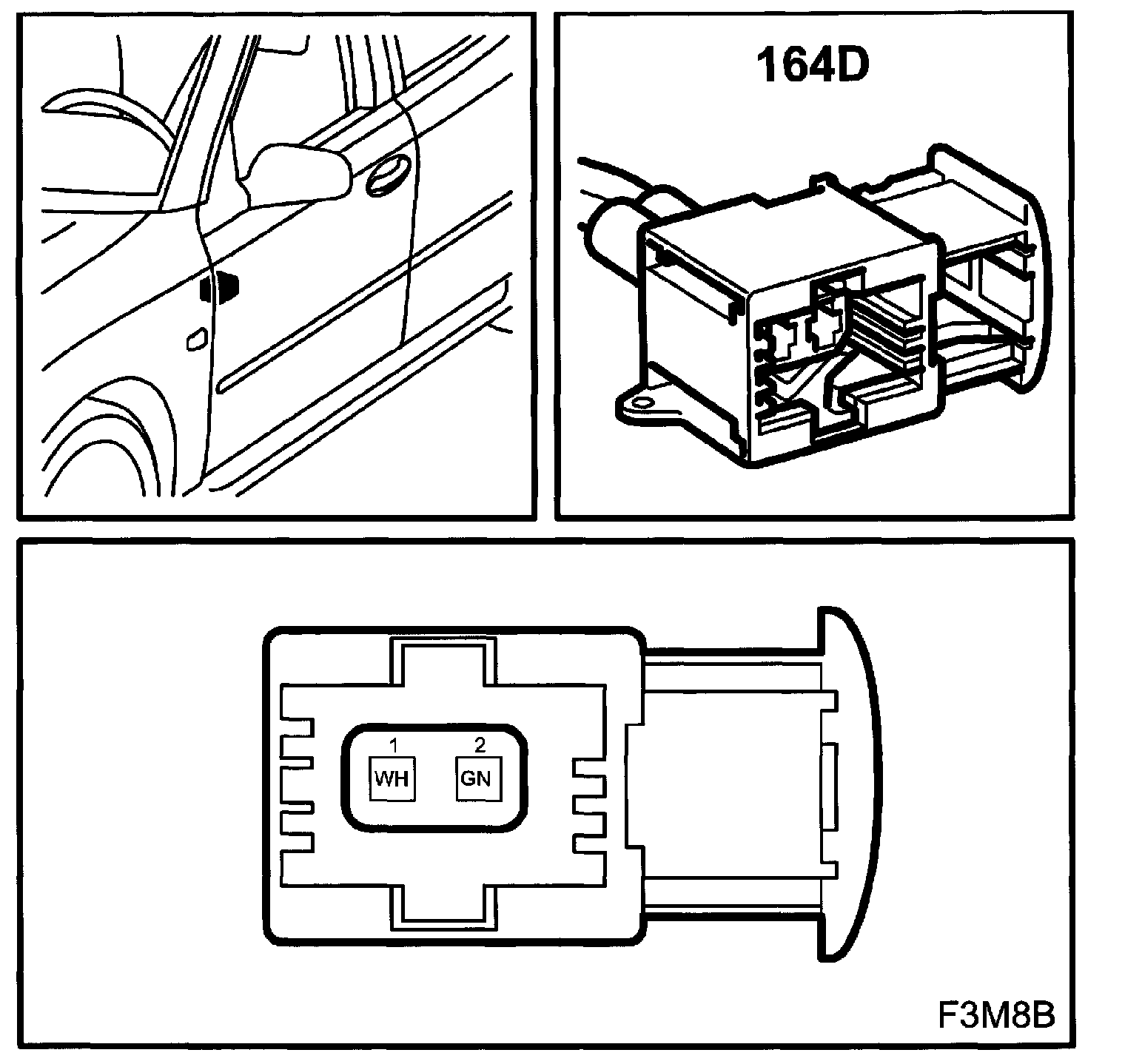

Without pinch protection


Motor, Electrically Operated Window Lift, Driver (164D):

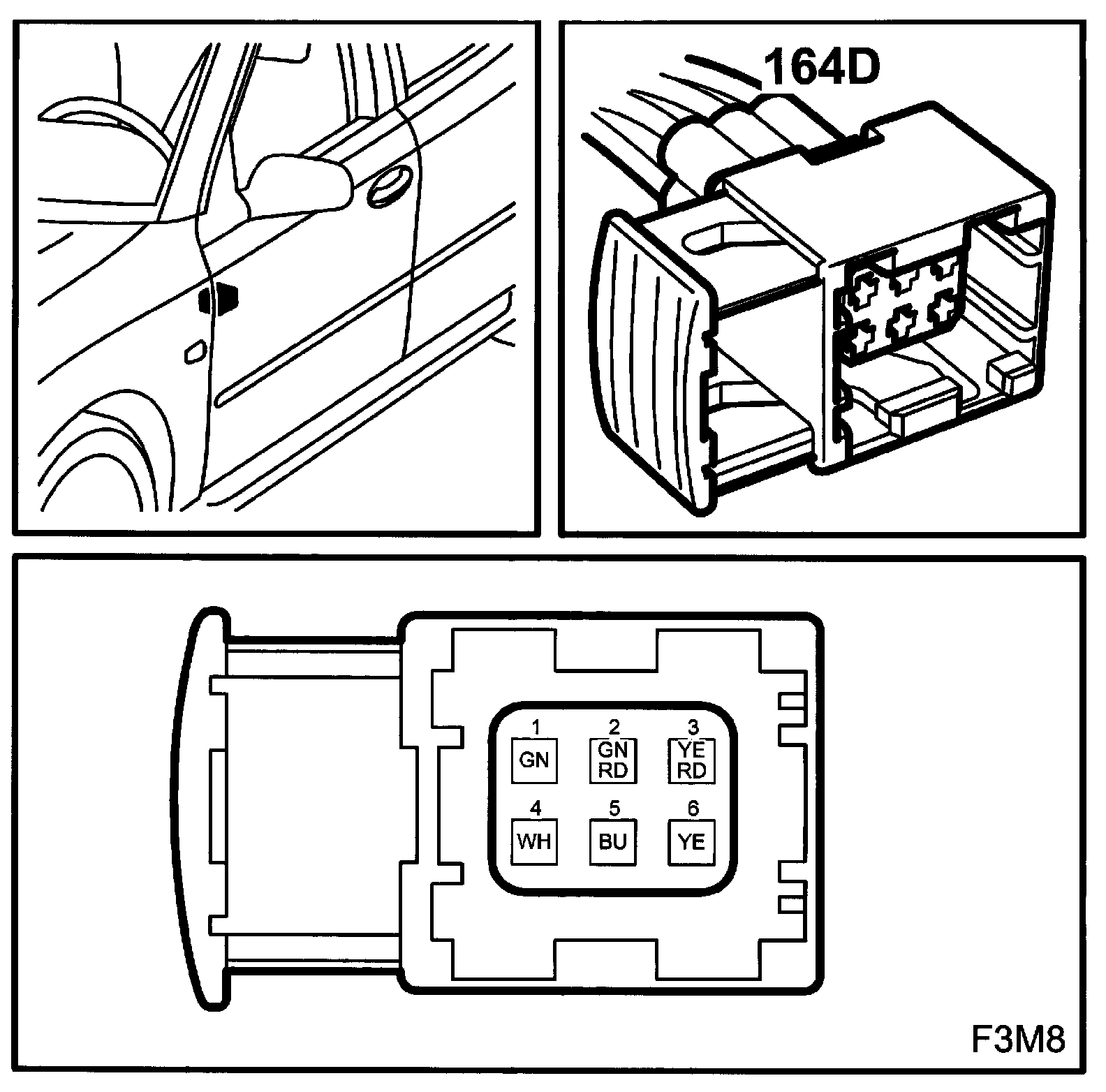

With pinch protection


Motor, Electrically Operated Window Lift, Driver (164D):
