Manual Transmission/Transaxle: Application and ID
Type designationID Location:
General
Type designation for manual gearboxes is divided into 3 groups of characters as in the following example:
FM55 101 A12345
The three character groups are separated by spaces and contain different information about the gearbox as specified below.
Example Showing FM53 With 2.9 Gear Ratio:

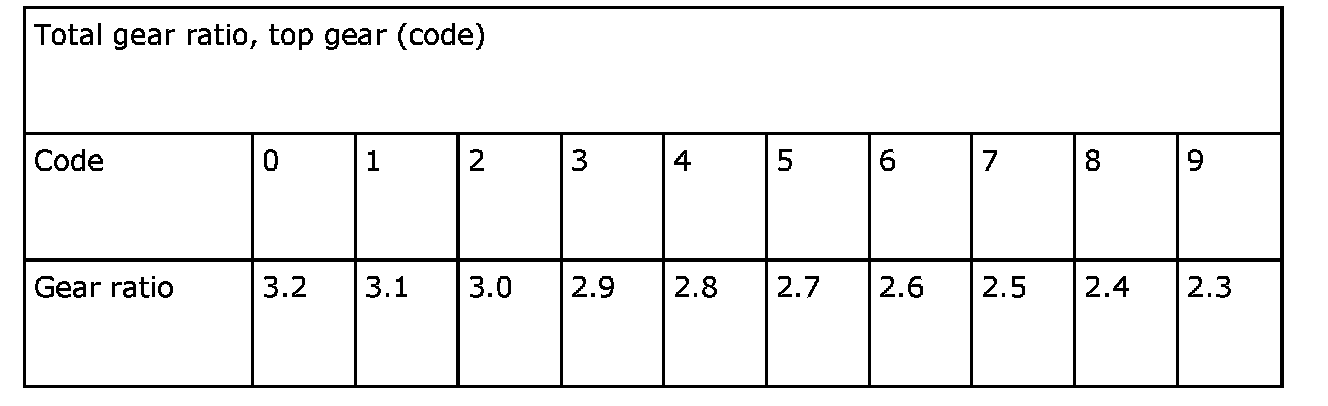

Gear Ratio Chart:

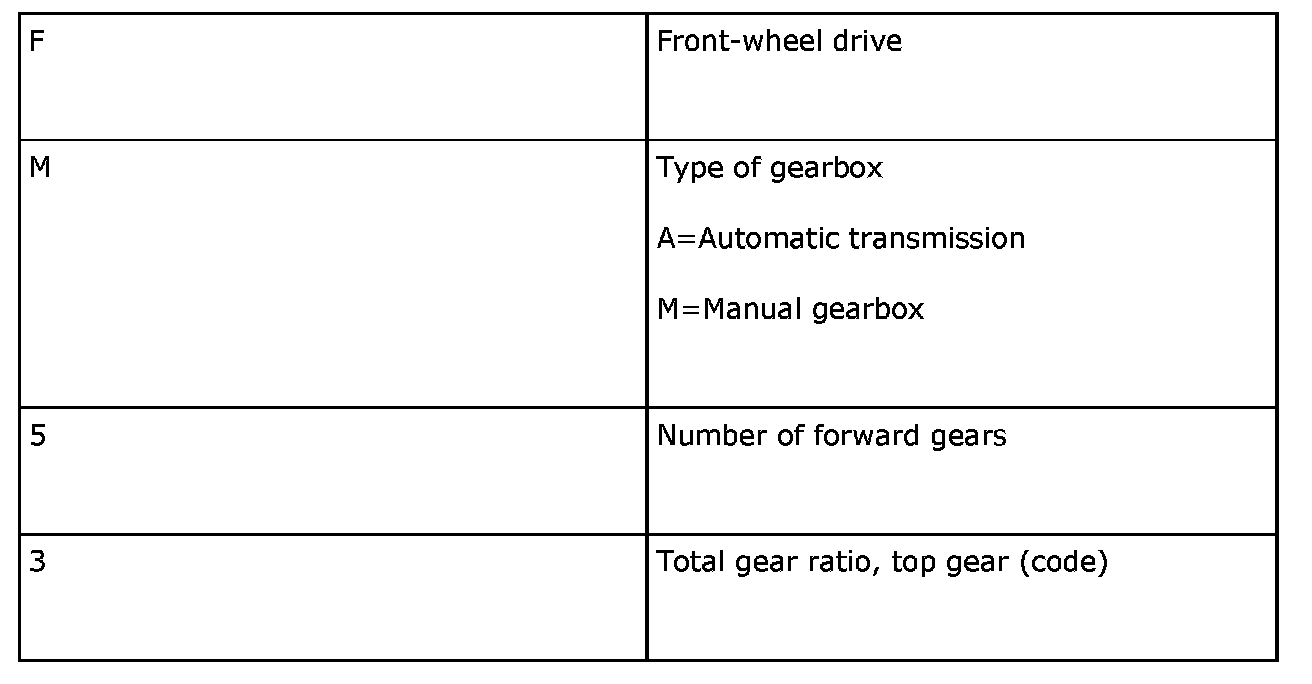

First Group FM55:

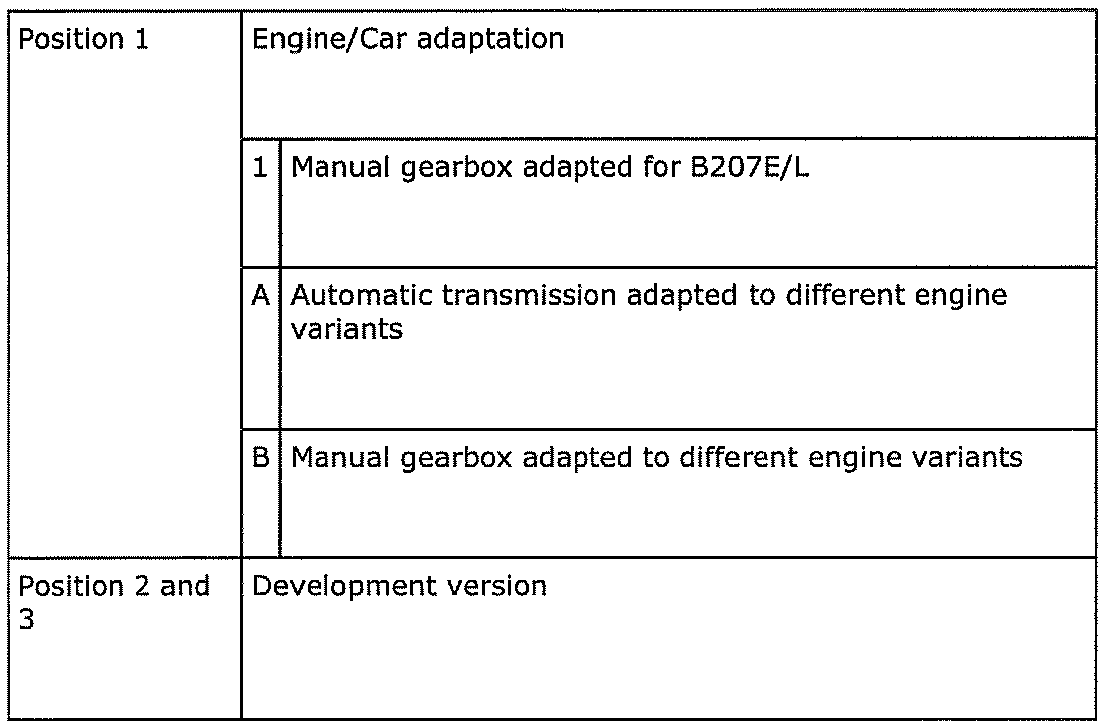

Second Group 101:
Third group A12345:
Manual gearboxes have a 6-character designation which starts with a letter according to which line the gearbox was fitted on. Each number series consists of 5 digits.
