Fuse 2

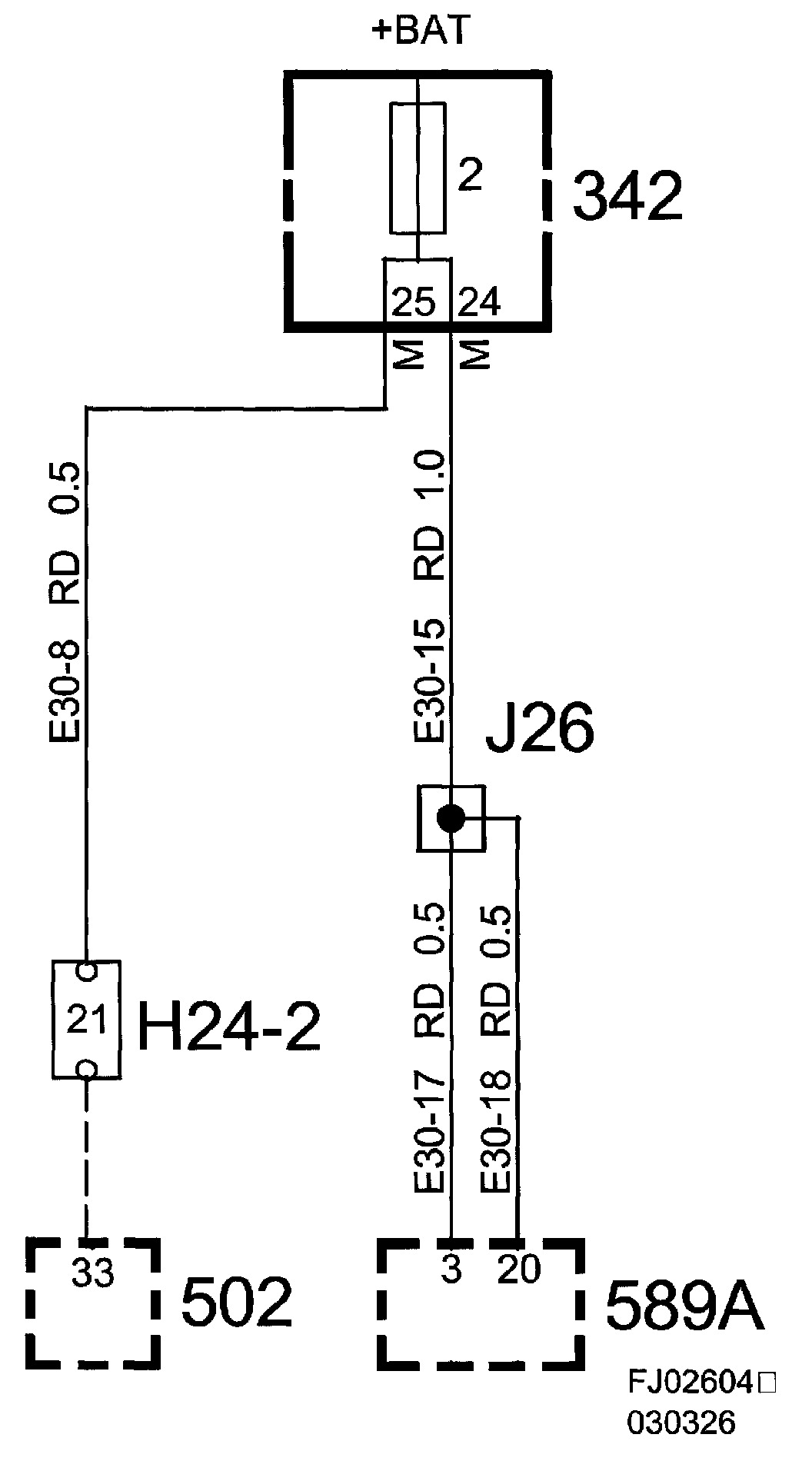

Fuse 2, Engine Bay Fuse Box:

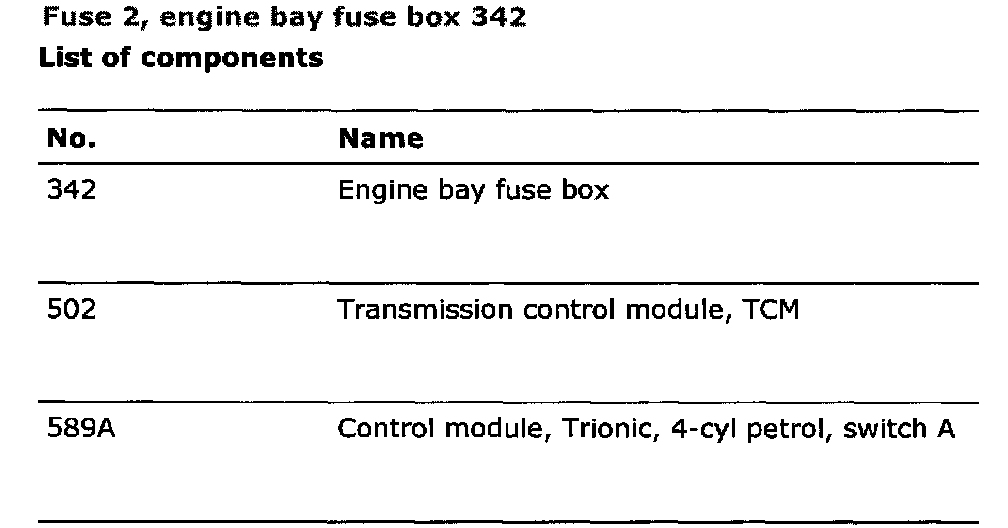

List Of Components:
Power Supply Diagrams: The diagrams for the power supplies that may be feeding this system (+30, +15, +54, +X and +B) can be found at Power and Ground Distribution diagrams Electrical Diagrams
Power Supply Diagrams: The diagrams for the power supplies that may be feeding this system (+30, +15, +54, +X and +B) can be found at Power and Ground Distribution diagrams Electrical Diagrams
