Home
>>
Saab
>>
2003
>>
9-3 (9440) L4-2.0L Turbo (2.0t)
>>
Repair and Diagnosis
>>
Sensors and Switches
>>
Sensors and Switches - HVAC
>>
Evaporator Temperature Sensor / Switch
>>
Locations
Evaporator Temperature Sensor / Switch: Locations
Location
: on the LH side of the heating and ventilation unit

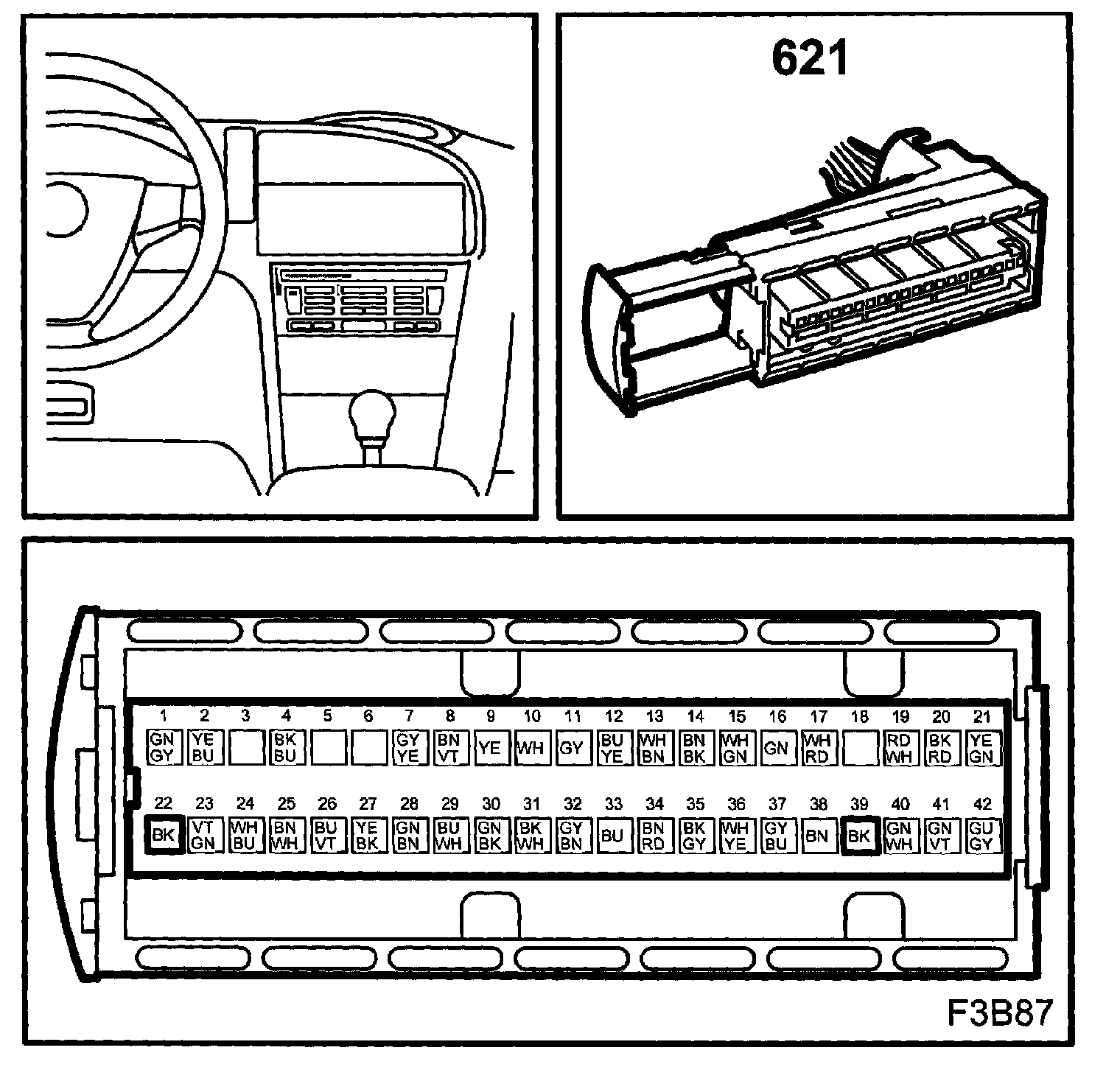

Temperature Sensor, Evaporator A/C (621):
