Air Injection Pump Relay: Diagrams
Location
: in the main fuse box in front of battery

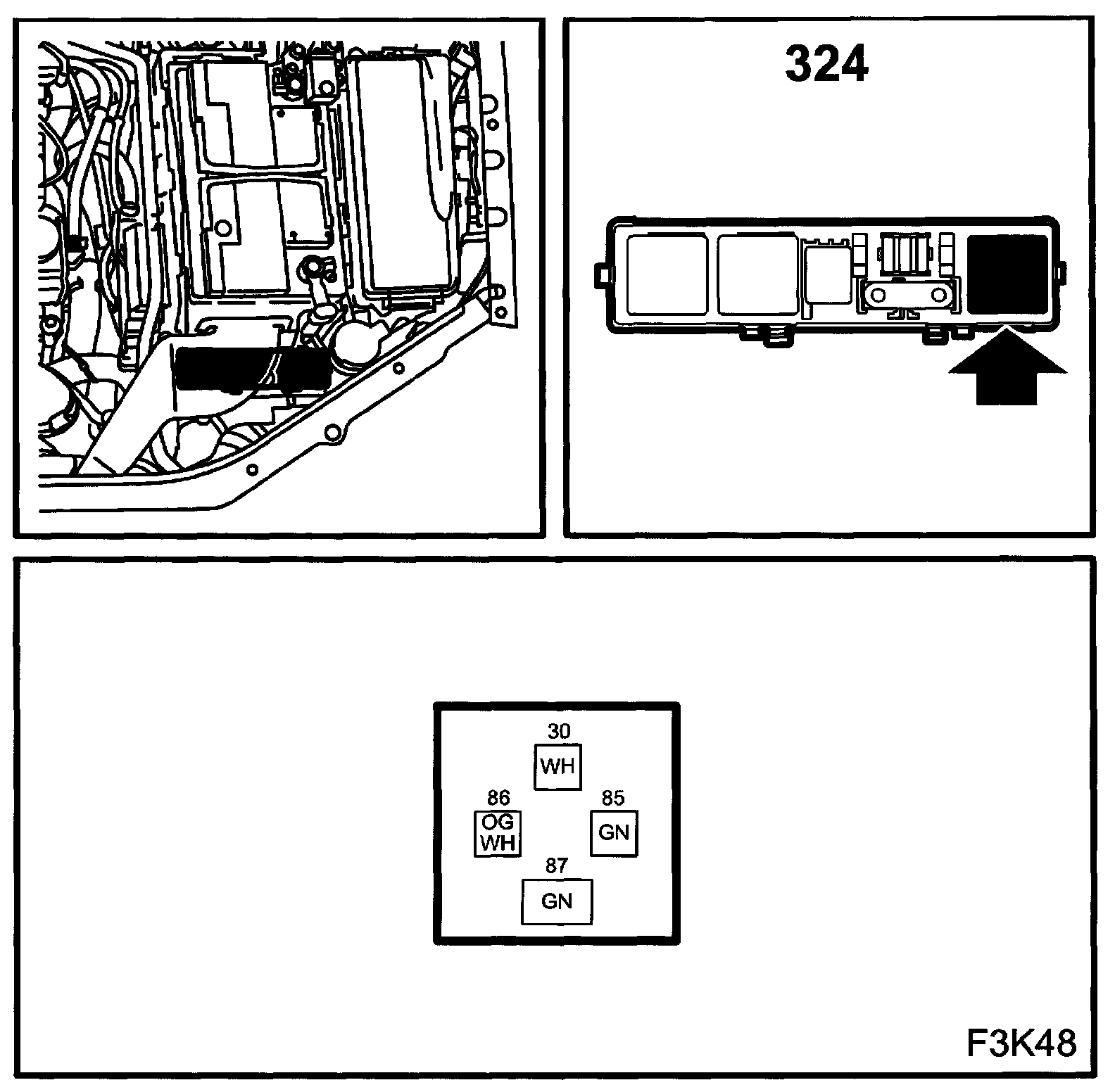

Secondary Air Injection Pump Relay (324):
