Home >> Saab >> 2003 >> 9-3 (9440) L4-2.0L Turbo (2.0t) >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Brakes and Traction Control >> Traction Control Module >> Diagrams >> Anti-Lock Brakes With ESP and TCS

Anti-Lock Brakes With ESP and TCS

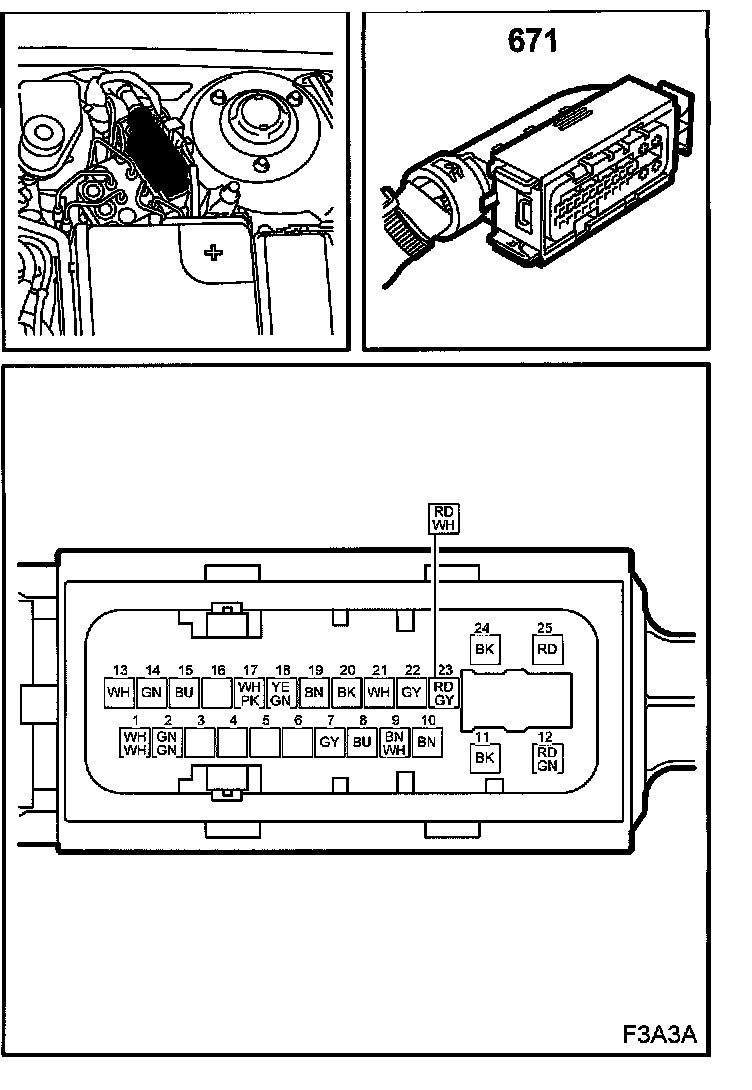

ESP control module (671)





Location: Integrated in hydraulic unit behind electrical centre 342 in engine bay
