Sunroof Module Without Pinch Protection (182)

Sunroof Module Without Pinch Protection (182)

Main task
Handles the opening and closing of the sunroof.

Type
Combined with motor

Connection
The motor is fed with +30 on pin 5 and +15 on pin 7, and grounded on pin 6 to G3 via the REC. Control signals on pins 2, 3 and 4.

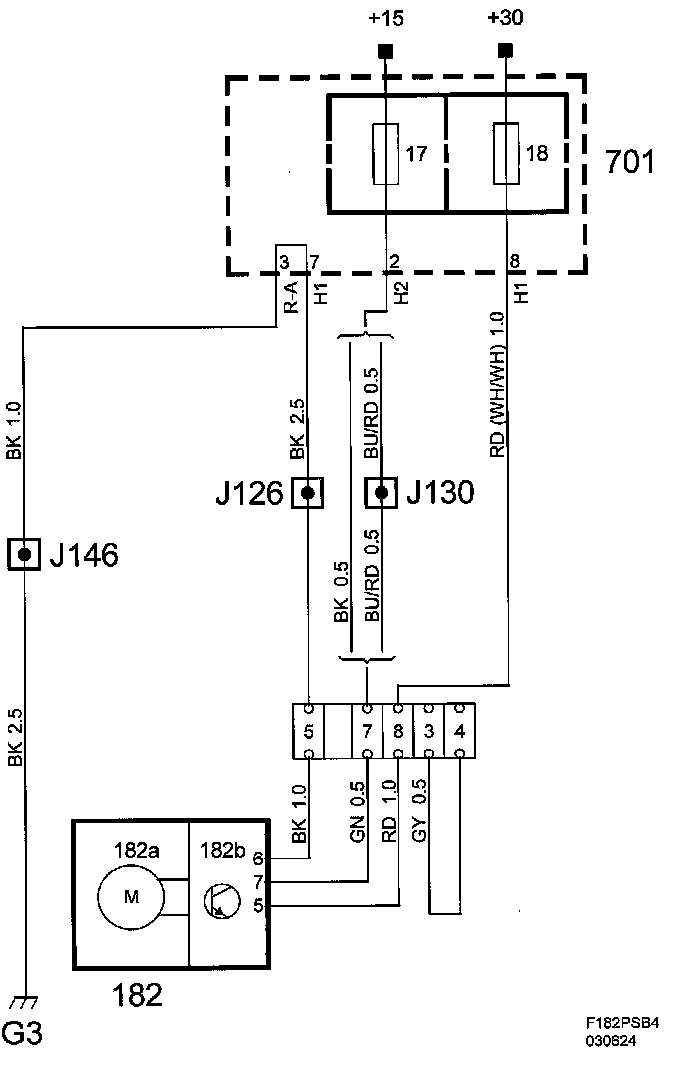

Wiring diagram, motor power supply.

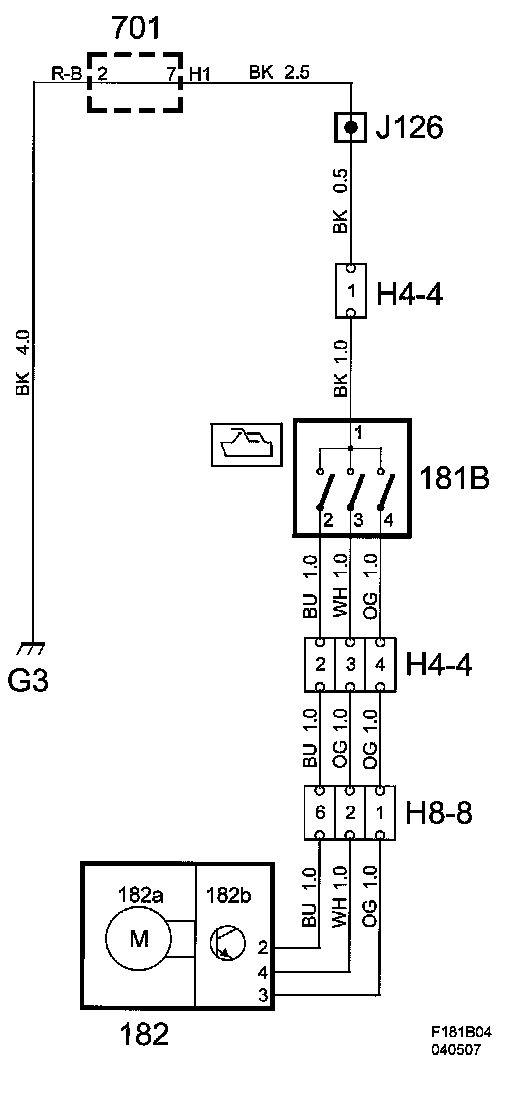

Wiring diagram, switch.
