Ground Locations

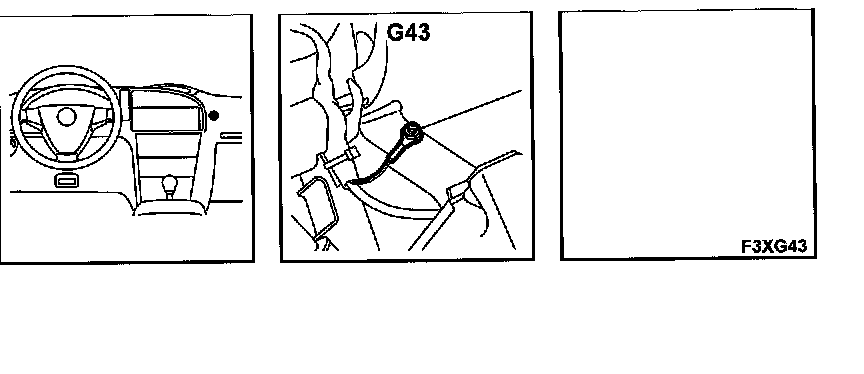

Grounding point G43





Location: On right-hand side of knee member

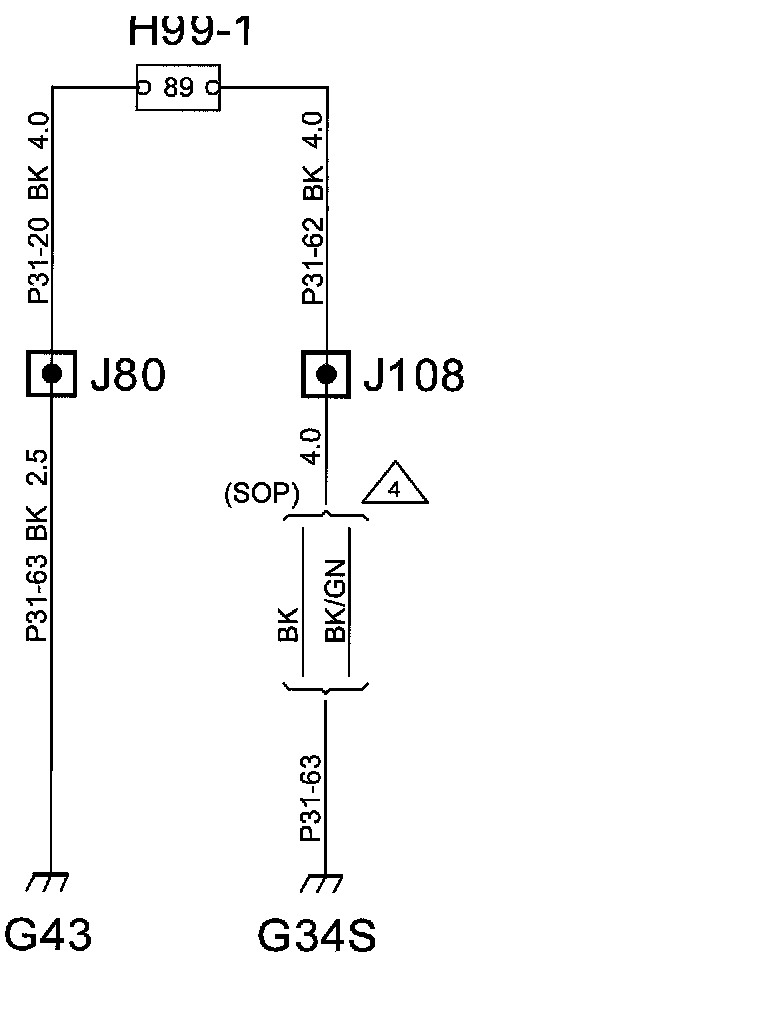

The grounding point is connected with grounding point G34S via crimps J80 and J108.

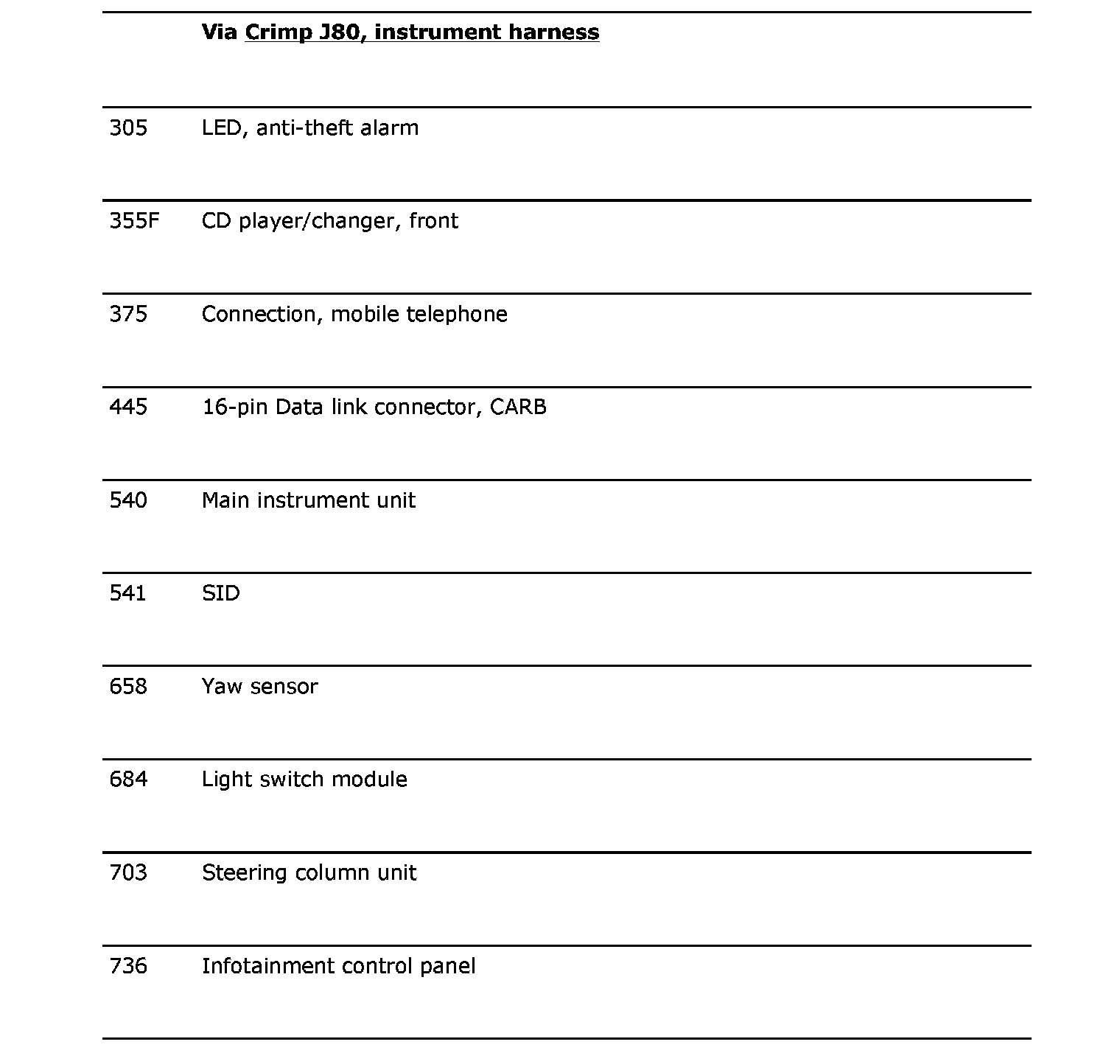

Connected components
