Rear Roof Light Bulb (50R)
Rear Roof Light Bulb (50R)
Main task
Used as general rear roof lighting.
Type
There is one lamp integrated in the rear roof console. This lamp is connected in parallel to the lamps of the front roof console.
Connection
Pin No. 2 - 3:
SOP to Rev.2

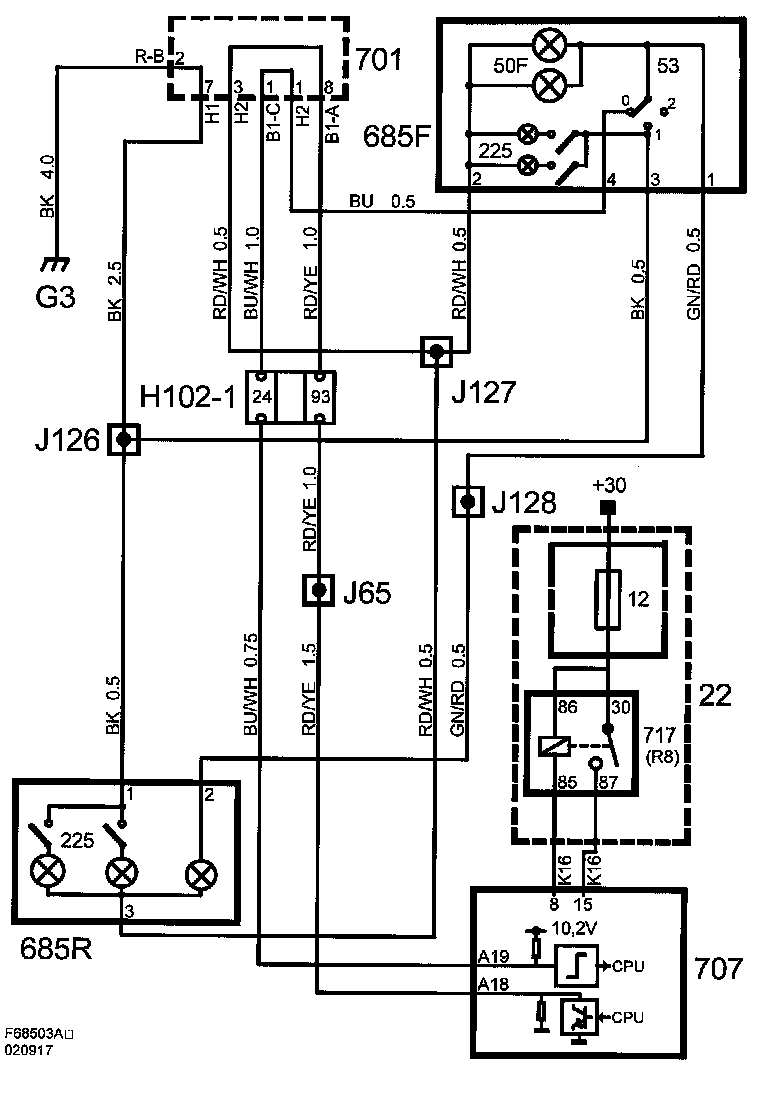

Diagram Front And Rear:
Rev.3 -
Diagram Front And Rear:
