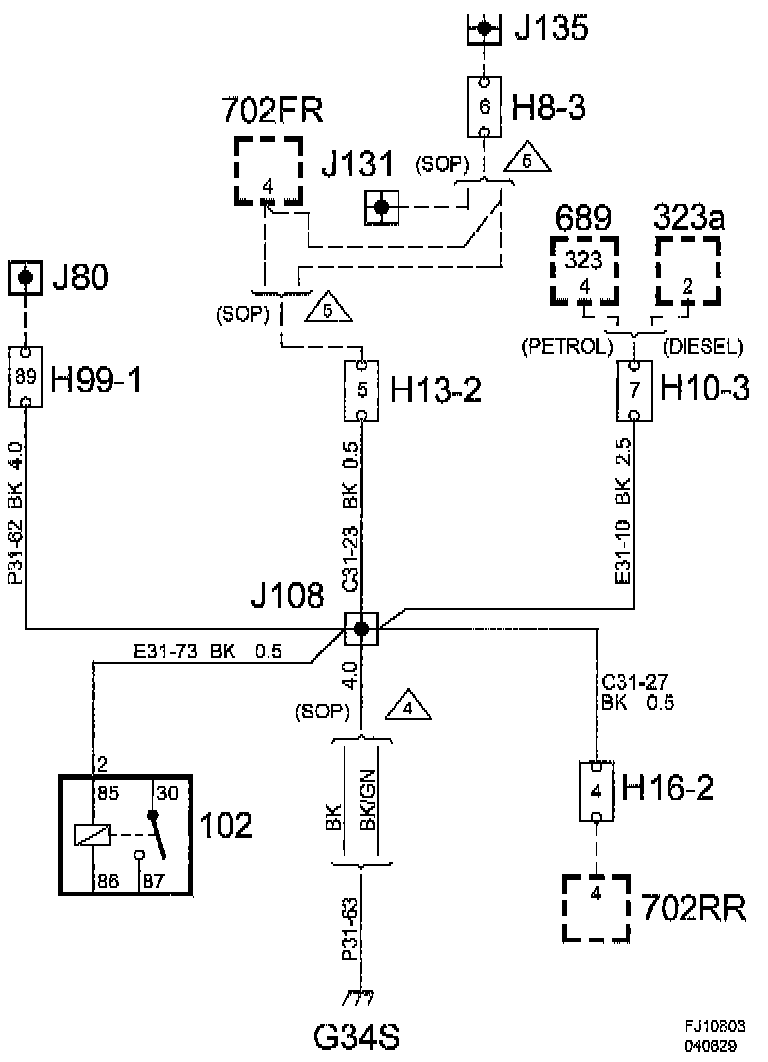

Grounding Point G34S



Grounding Point G34S

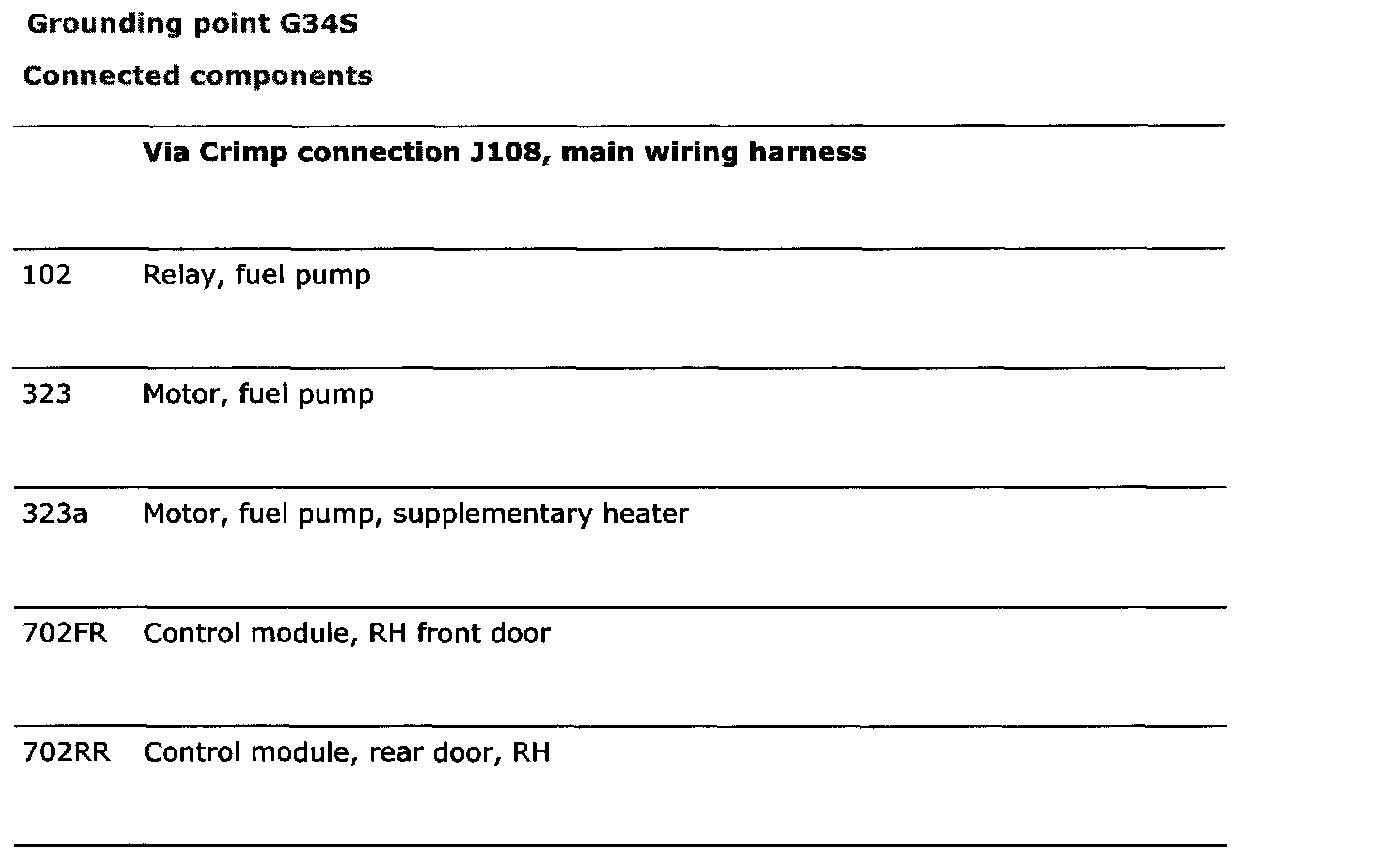

Connected Components:

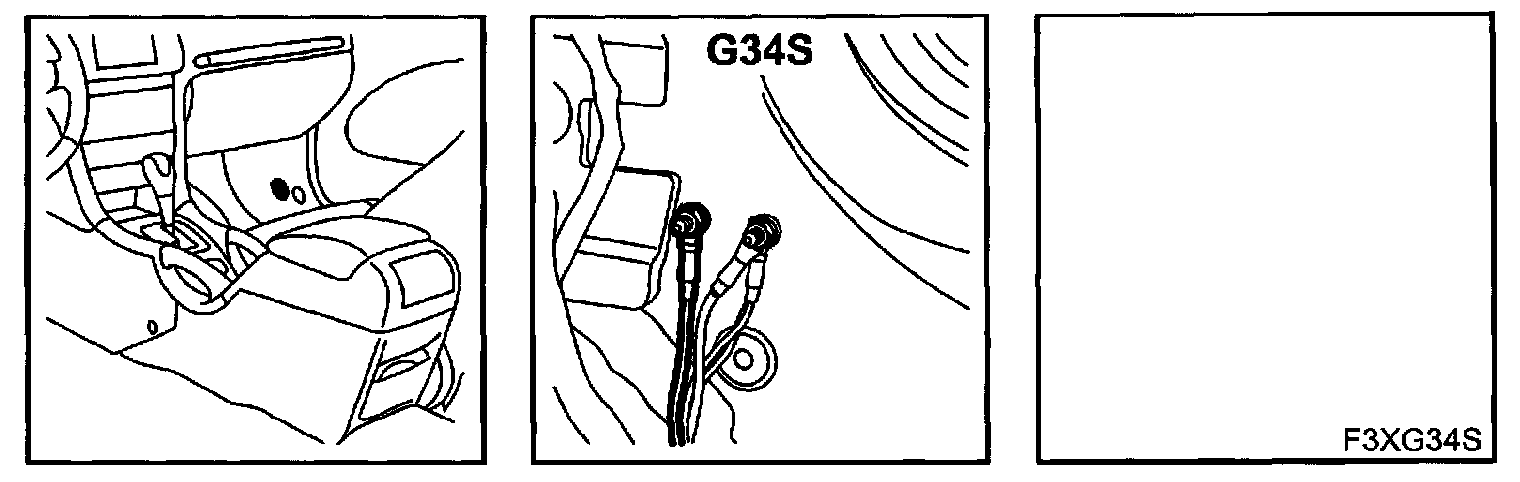

Location: By floor below RH A-pillar (green tape)

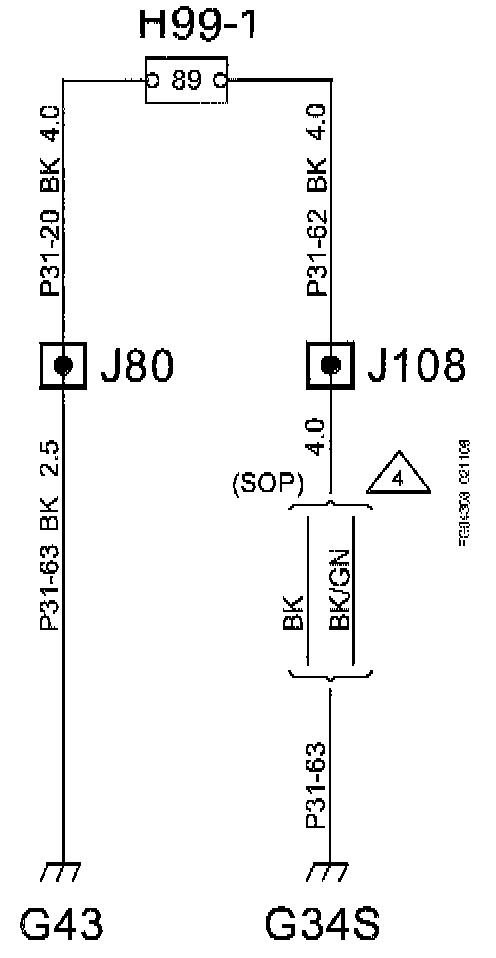

The grounding point is connected to the G43 grounding point via crimp connectors J108 and J80

Grounding Point G34S:
