Grounding Point G33P



Grounding Point G33P

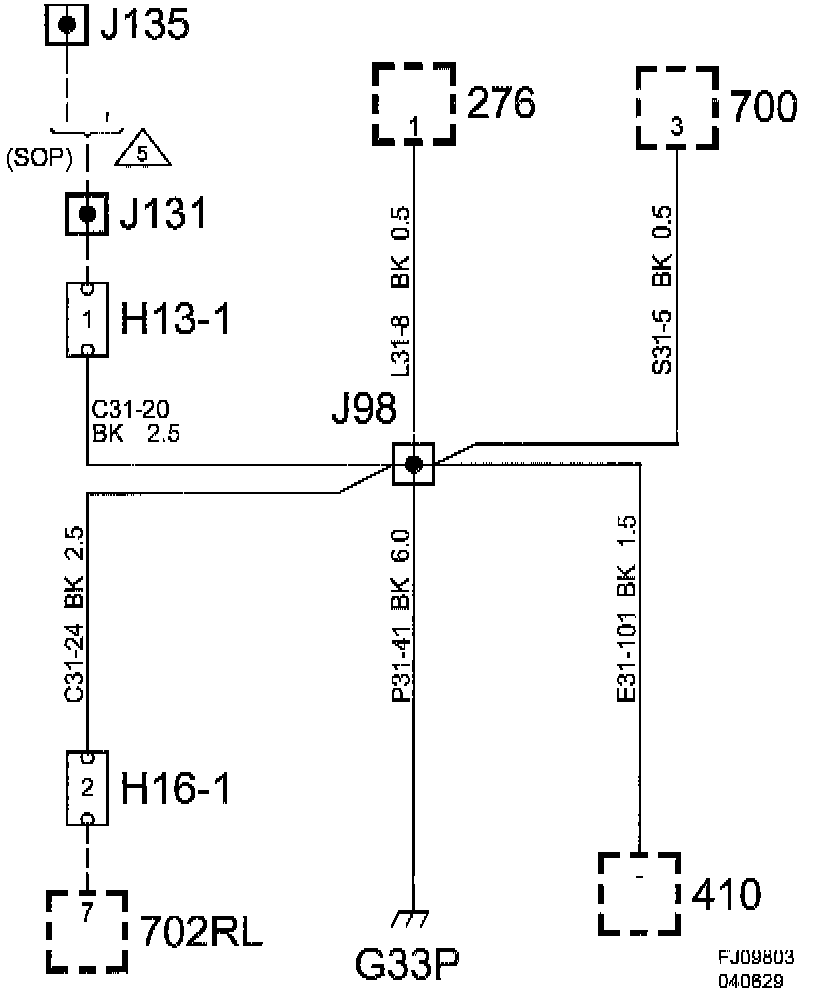

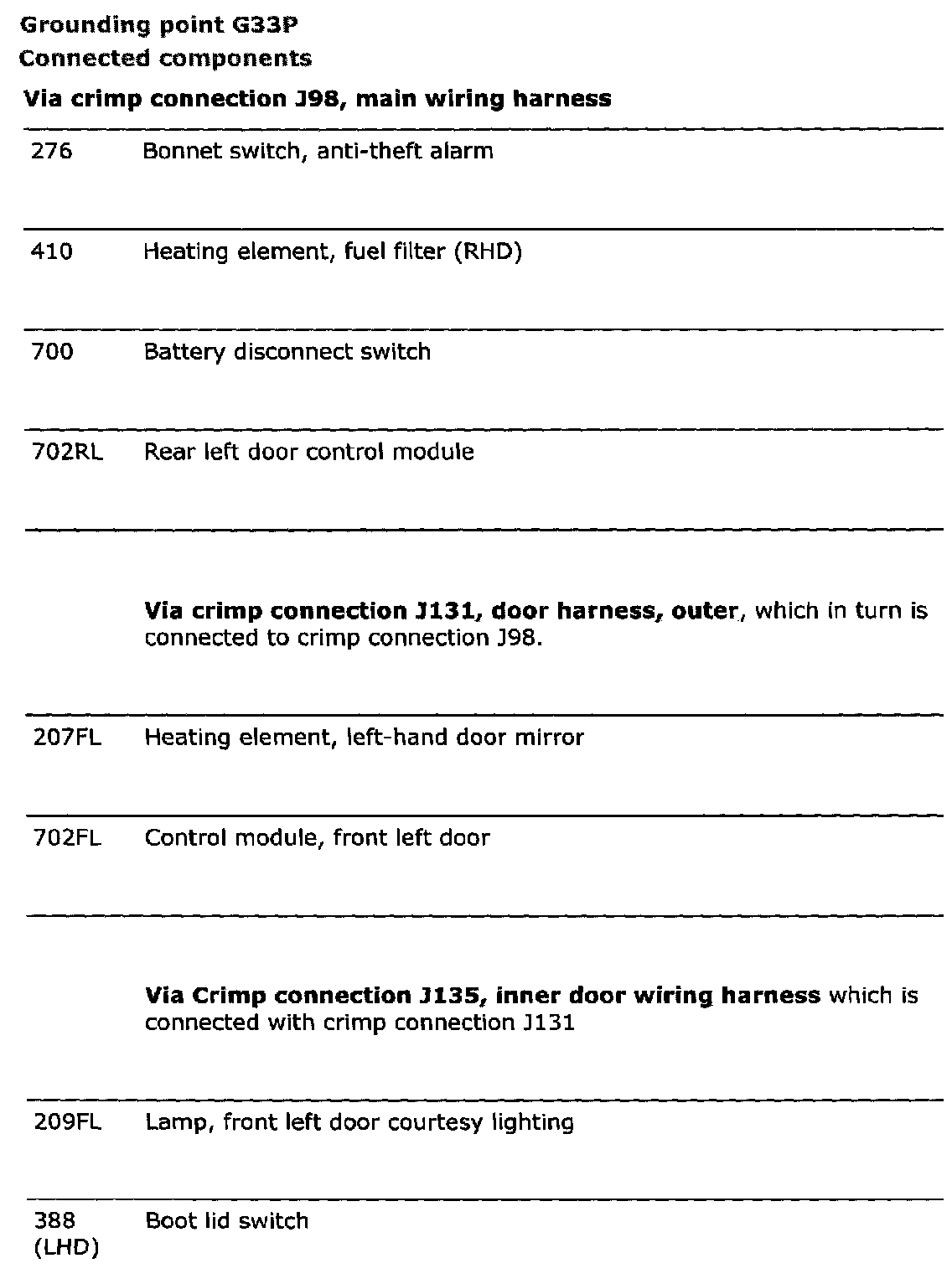

Connected Component (Part 1):

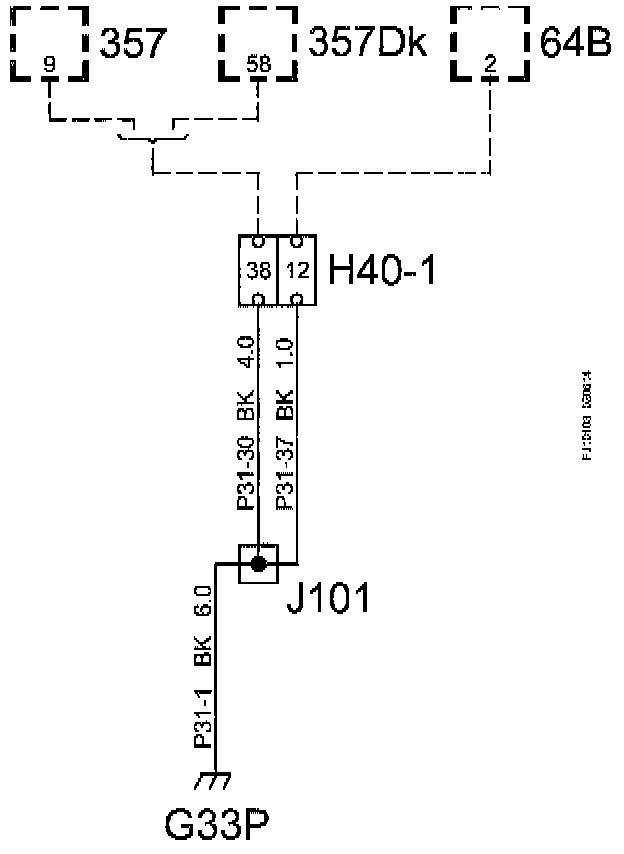

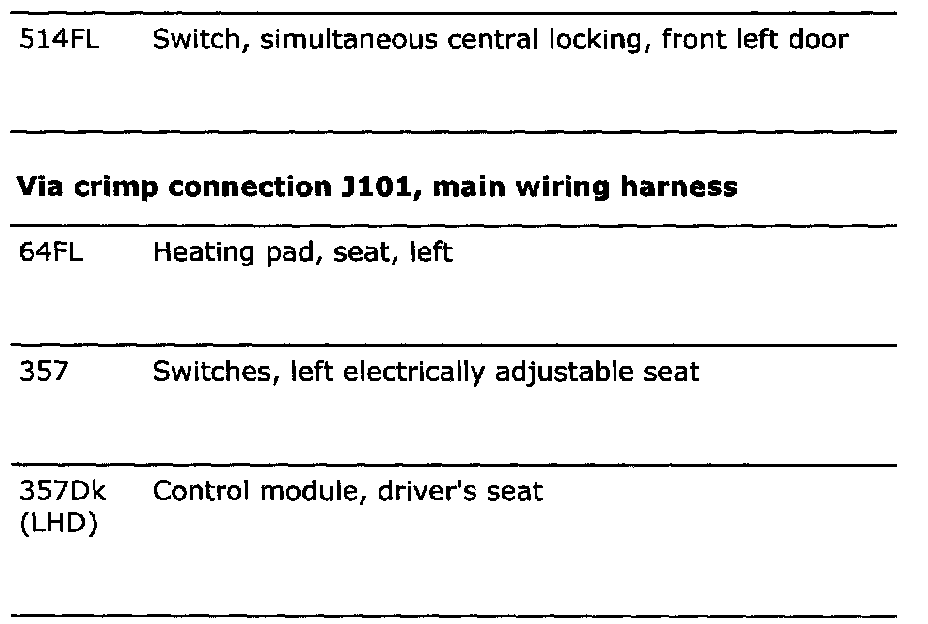

Connected Component (Part 2):

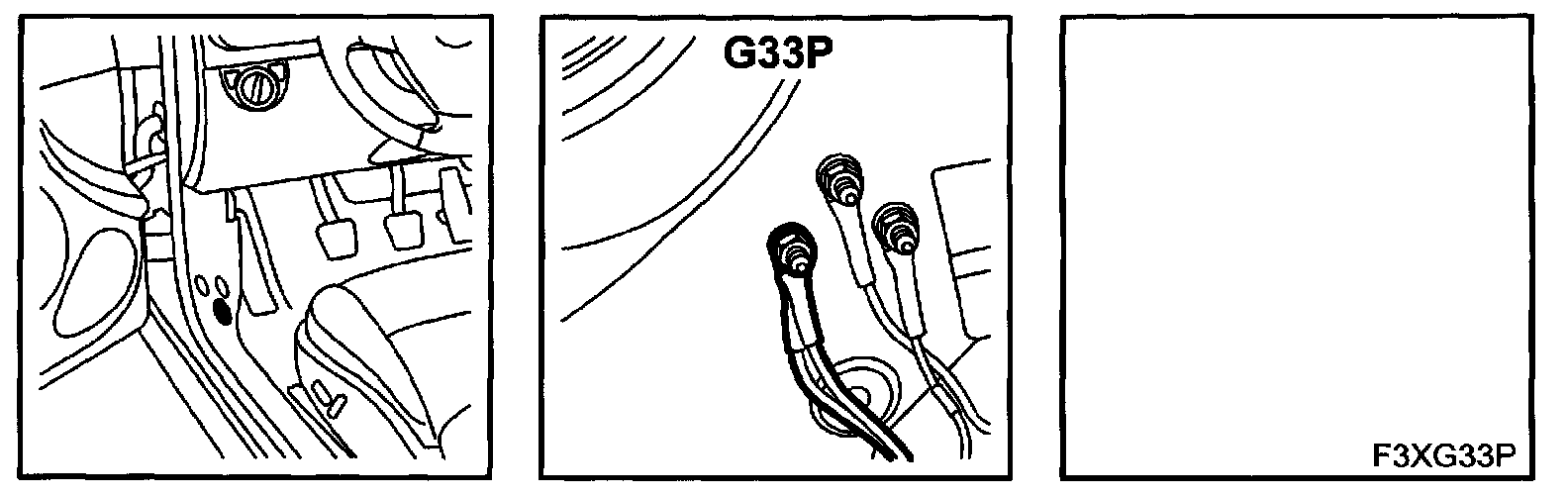

Location: By the floor below the left A-pillar (black tape)

Grounding Point G33P:
