Grounding Point G3



Grounding Point G3

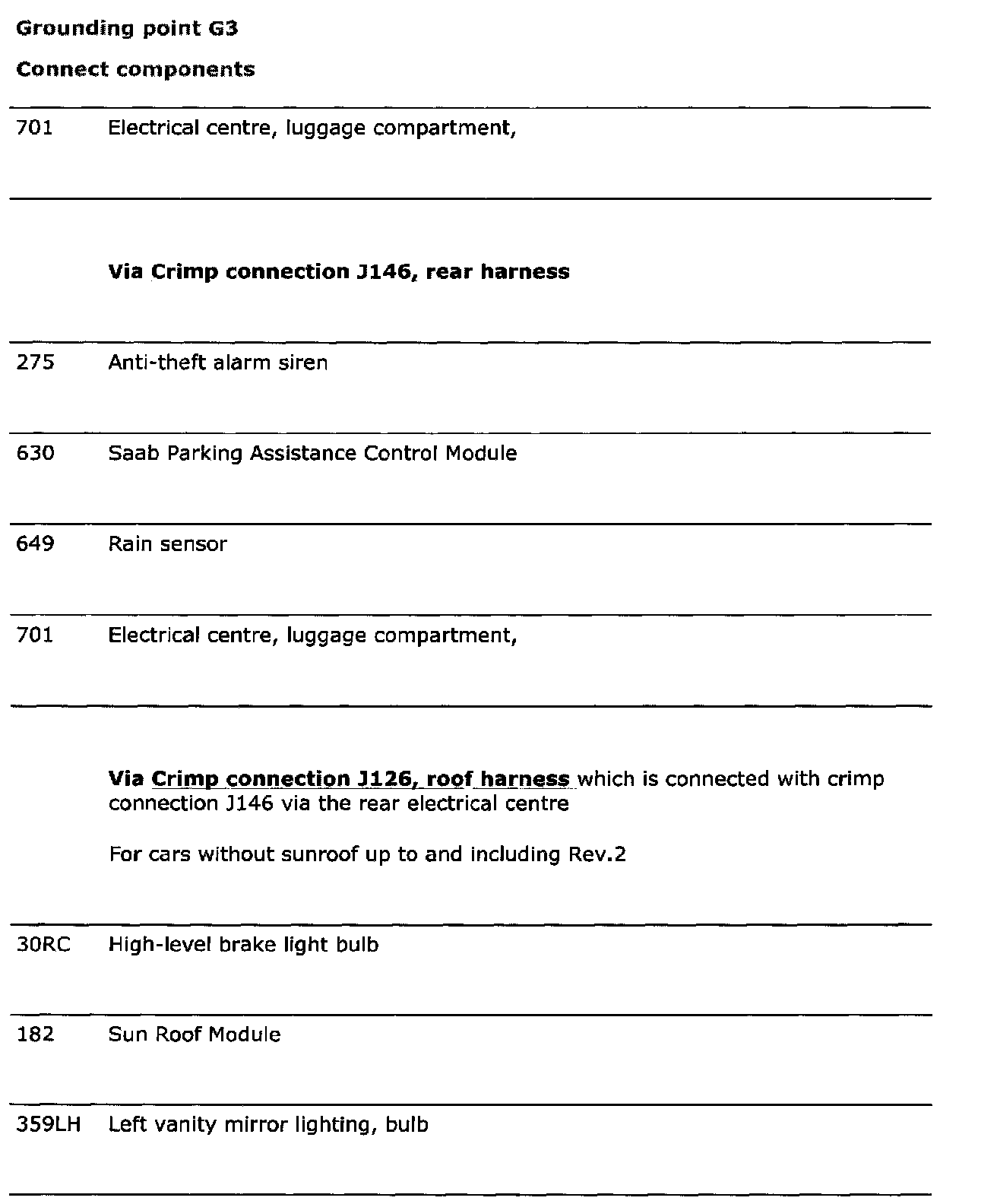

Connected Component (Part 1):

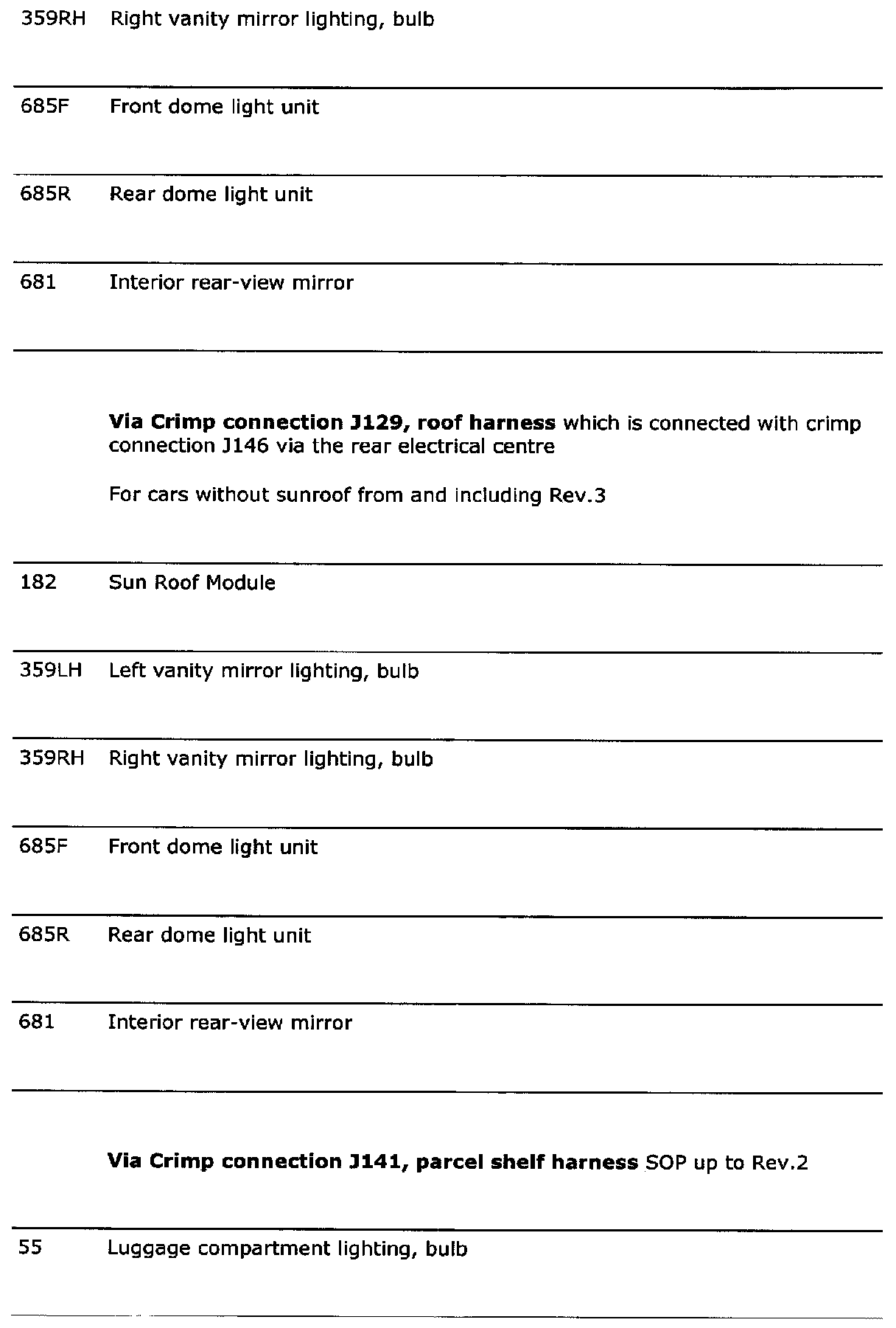

Connected Component (Part 2):

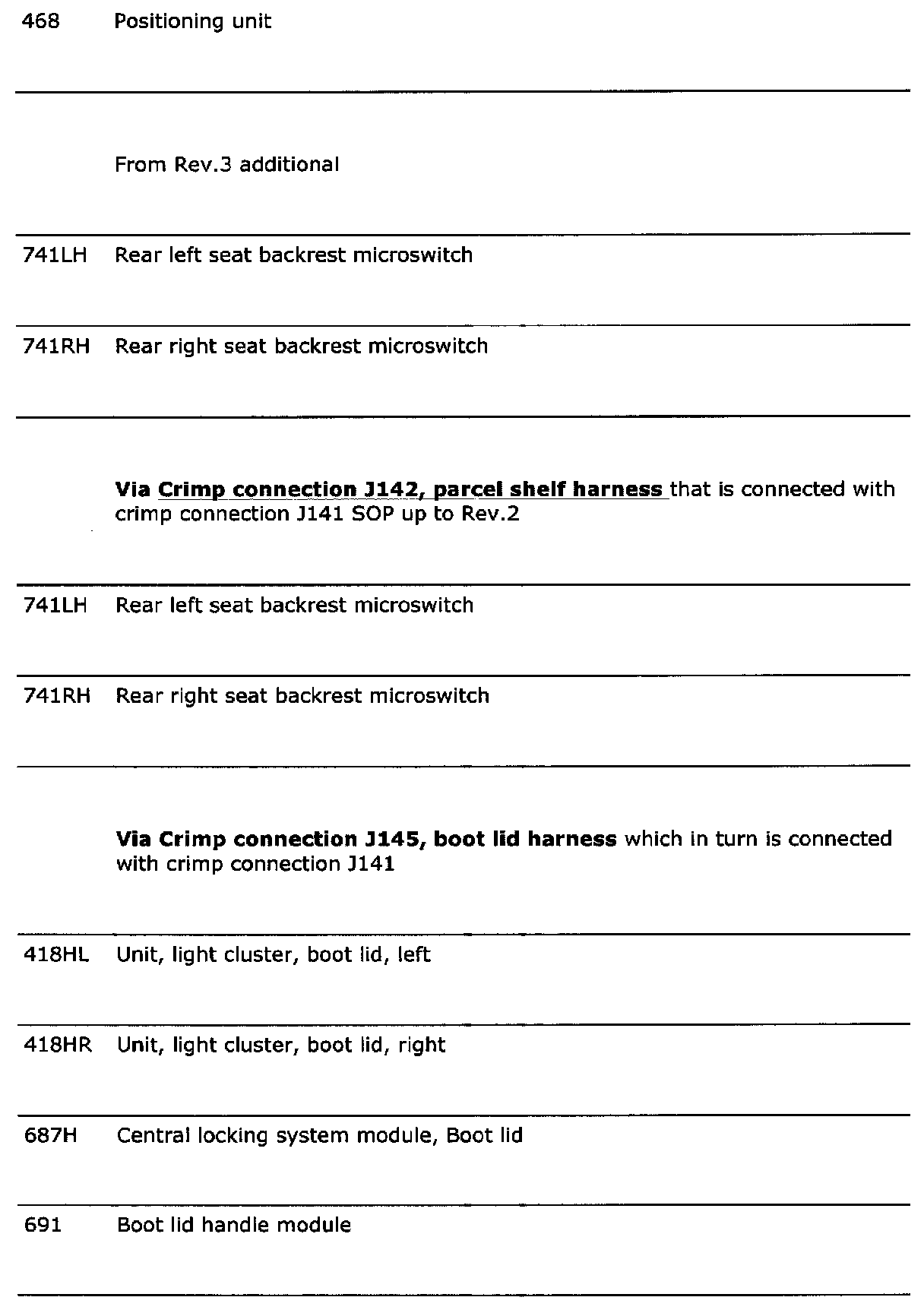

Connected Component (Part 3):

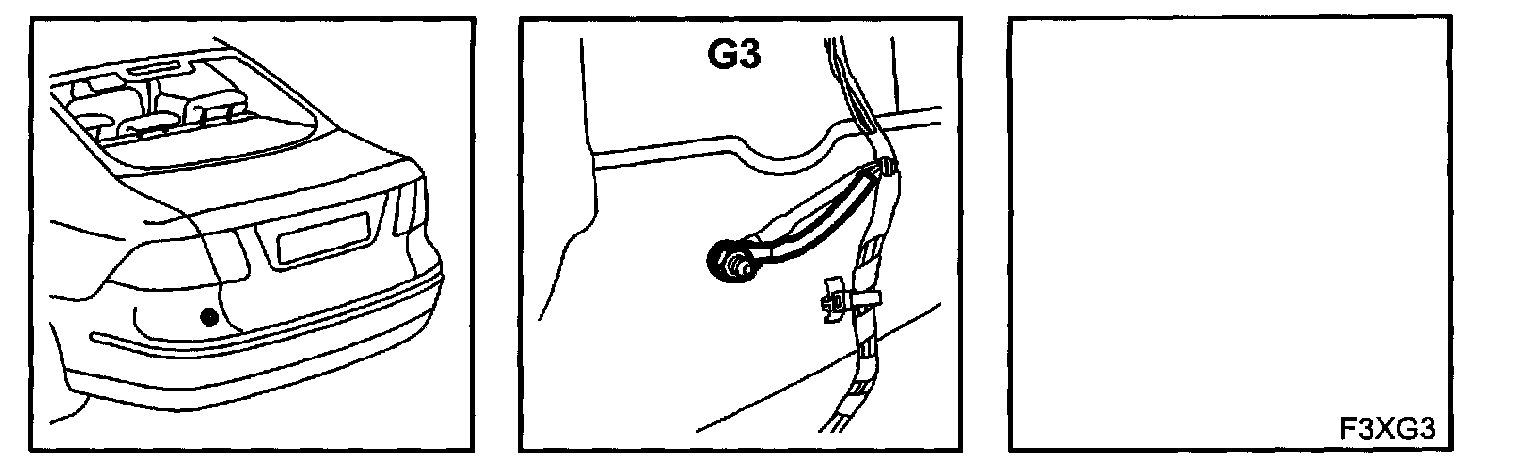

Location: In the luggage compartment below the LH lamp cluster

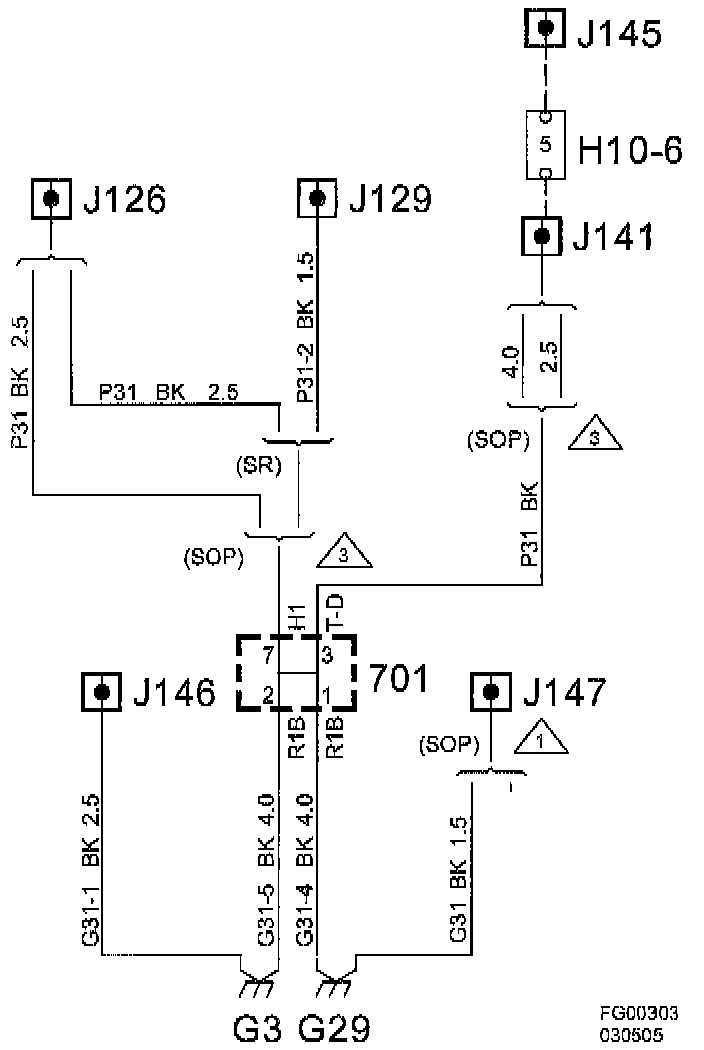

Via the rear electrical centre 701 the grounding point is connected with grounding point G29.

Grounding Point G3:
