Crimp Connection J99, Main Wiring Harness

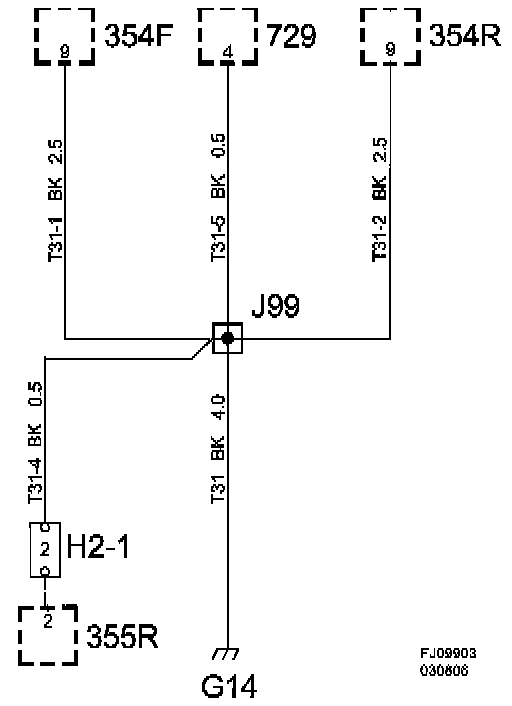

Crimp J99, Main Wiring Harness

Location: Approx. 480 mm from the branch to the grounding point G33P/S towards the left-hand rear door.






List of Components
No. Name
354F Amplifier, front speakers
354R Amplifier, rear speakers
729 DVD module
