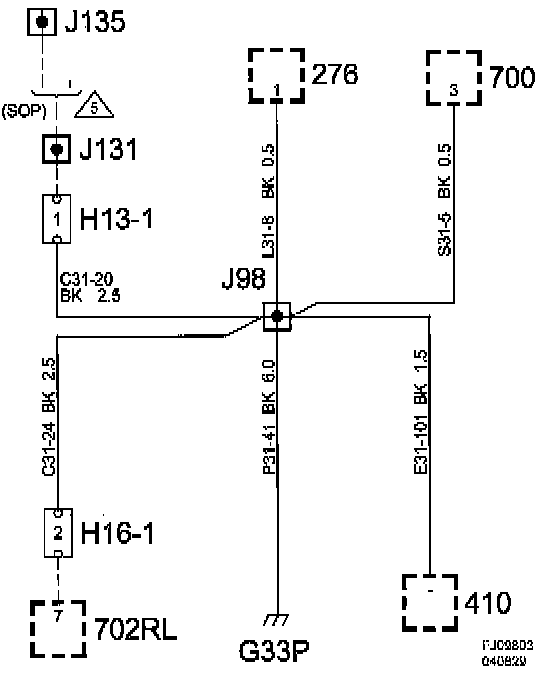

Crimp Connection J98, Main Harness

Crimp Connection J98, Main Harness

Location: Approximately 160 mm from grounding point G33P/S branching point towards the left rear door.

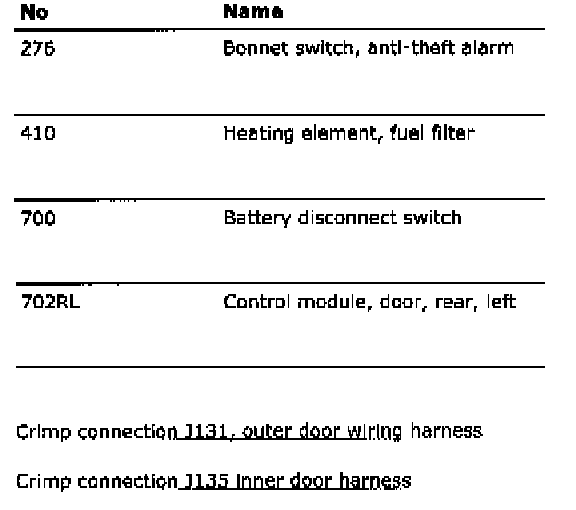

List Of Components:
