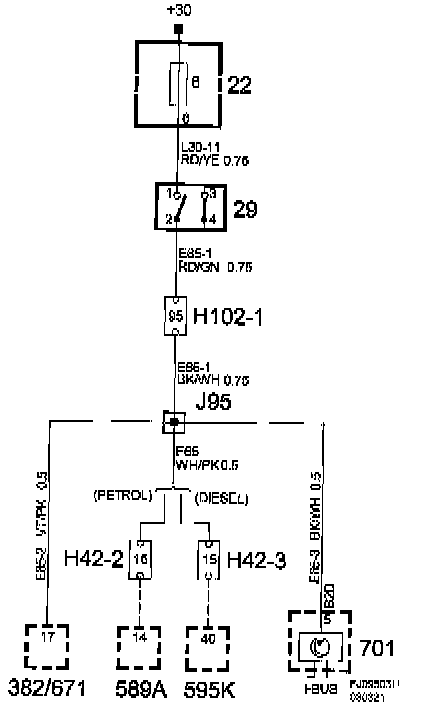

Crimp Connection J95, Main Harness
Crimp J95, Main Harness
Location
SOP: Approx. 30 mm from branching point left front door to engine bay
Rev.3: Approx. 60 mm from branching point left front door to engine bay

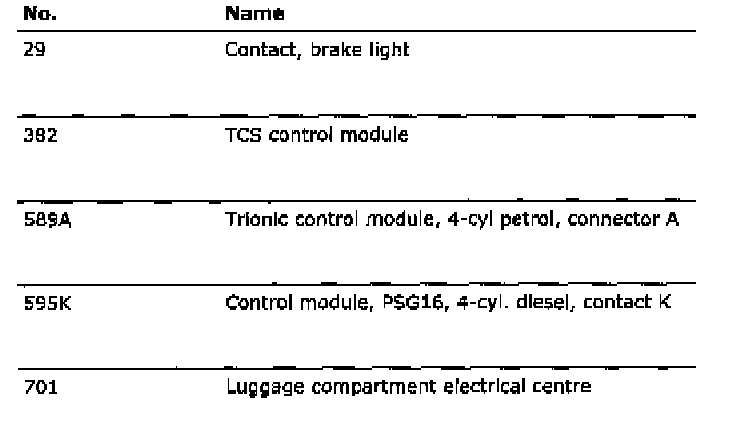

List Of Componenets:
Crimp J95, Main Harness
Location
SOP: Approx. 30 mm from branching point left front door to engine bay
Rev.3: Approx. 60 mm from branching point left front door to engine bay
