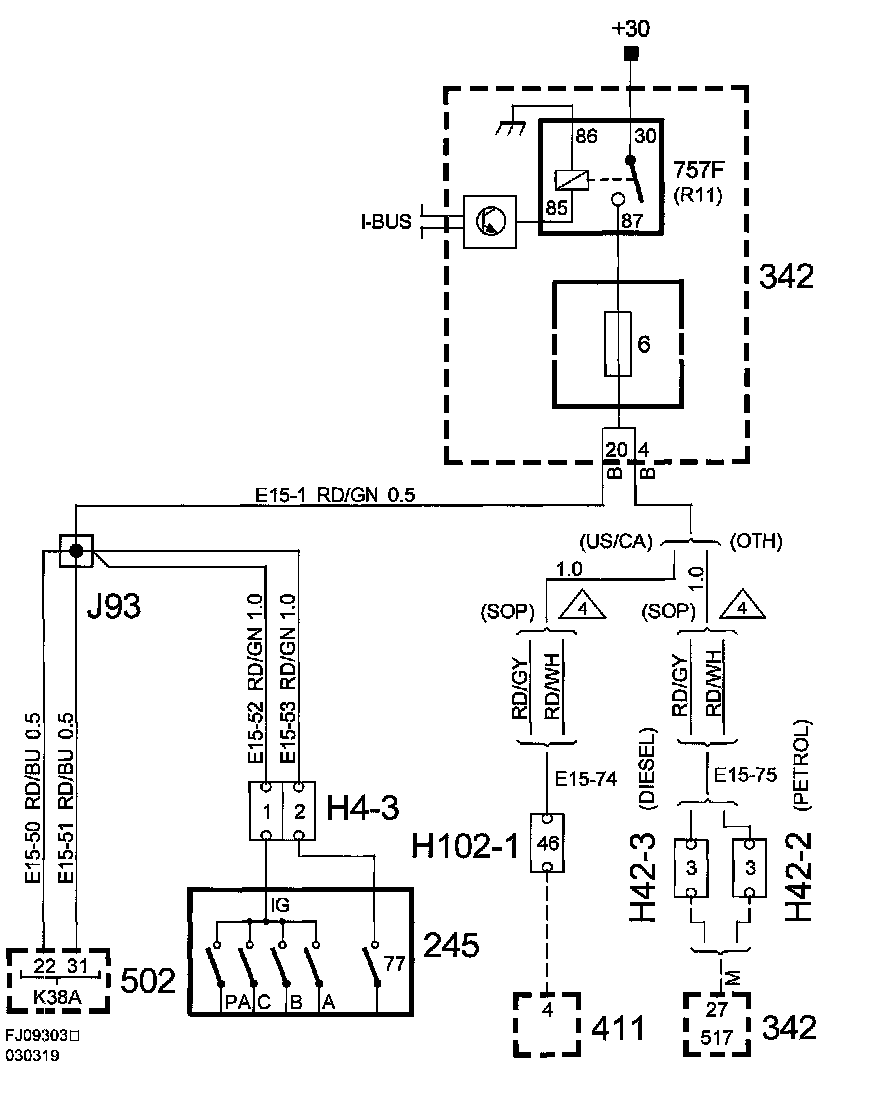

Crimp Connection J93, Main Harness

Crimp 393, main harness
Location: Approximately 90 mm from branching point TCM control module towards main fuse box

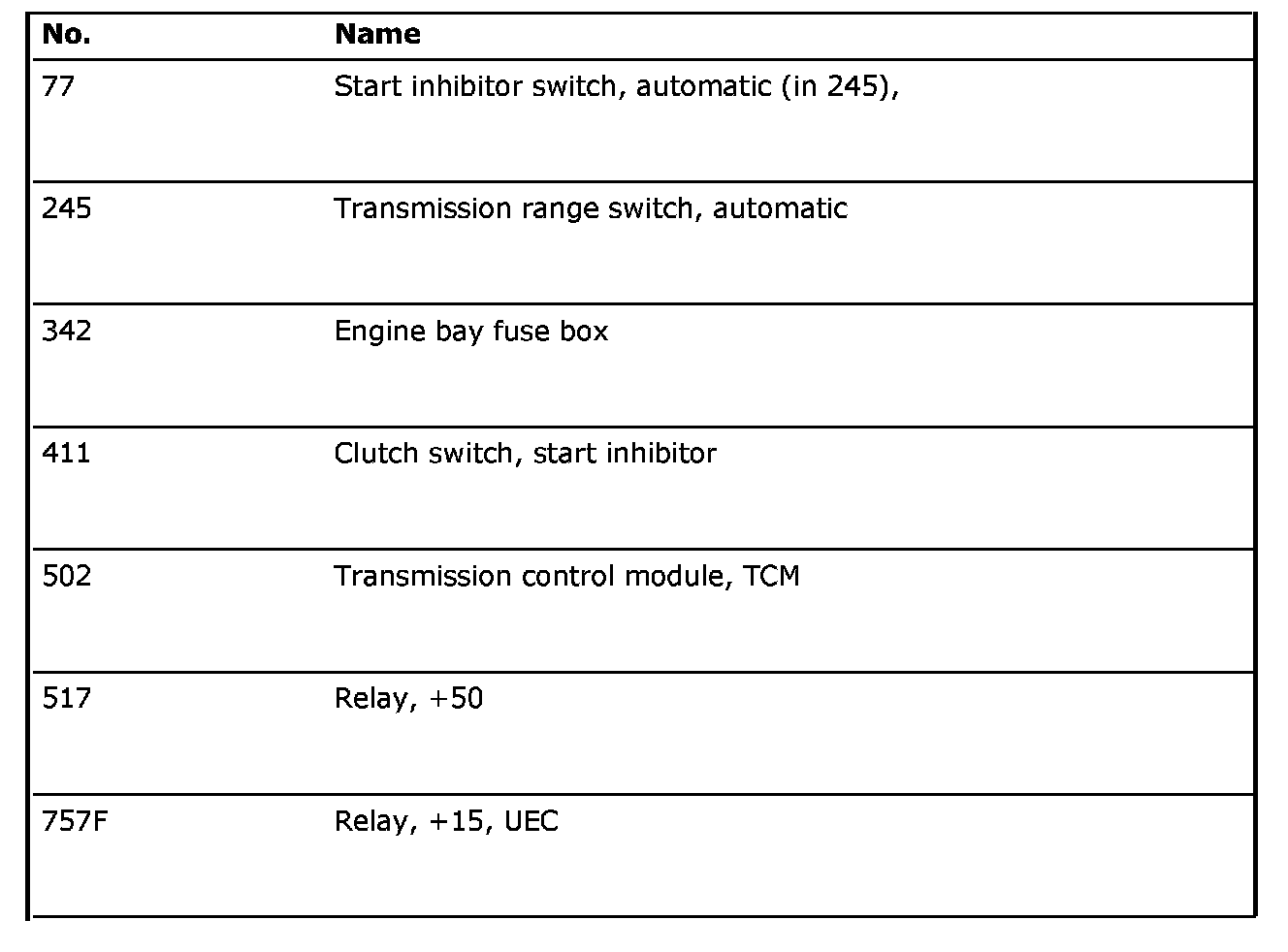

List of components
