Crimp Connection J78, Dashboard Harness

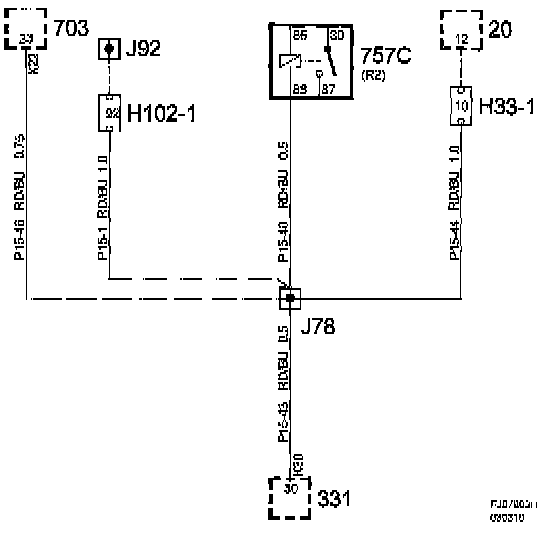

Crimp J78, Dashboard Harness

Location: Approximately 60 mm from cigarette lighter branching point towards the airbag control module

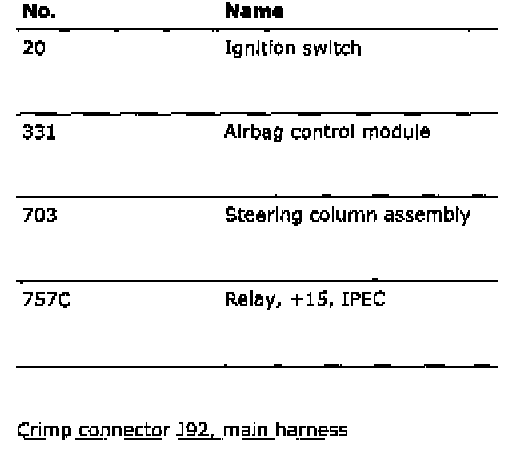

List Of Components:
