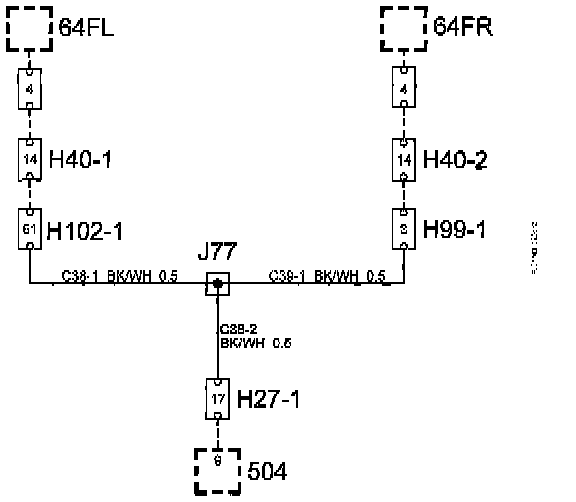

Crimp Connection J77, Instrument Harness




Crimp Connection J77, Instrument Harness

Location: Approx. 80 mm from branching point of control panel for manual climate control.






List of Components
No. Name
64FL Heating pad seat, left
64FR Heating pad seat, right
504 Control panel for manual climate control
