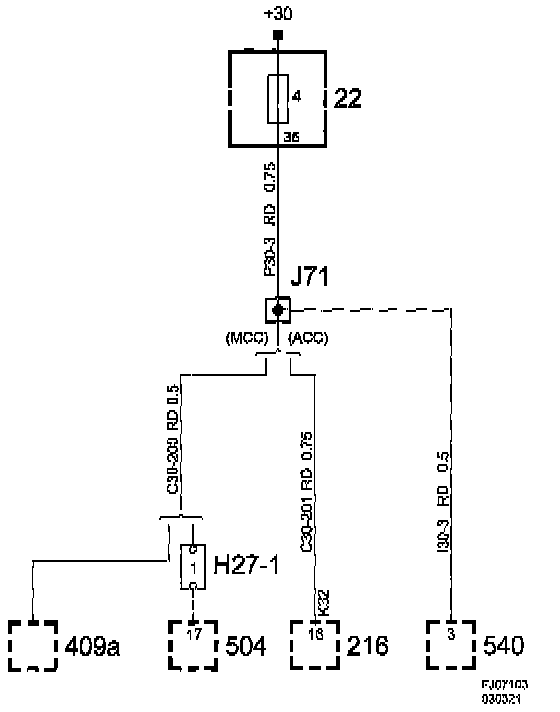

Crimp Connection J71, Dashboard Harness




Crimp Connection J71, Dashboard Harness

Location: Approx. 100 mm from branching point column integration module to grounding point G41.

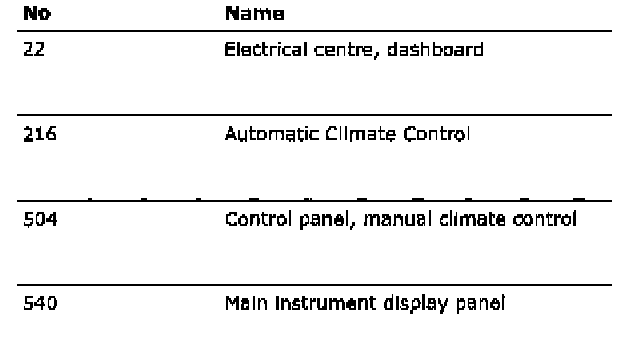

List Of Components:
