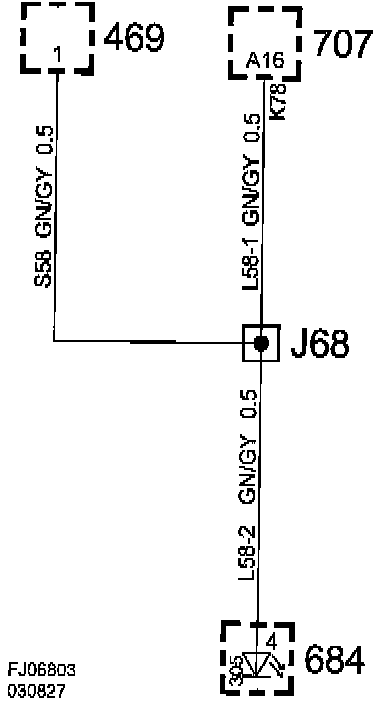

Crimp Connection J68, Instrument Harness




Crimp Connection J68, Instrument Harness

Location: Approx. 260 mm from light switch unit to column integration module.






List of Components
No. Name
469 Control panel, OnStar
684 Unit, light switch
707 Control Module, BCM
